INSTALLATION INSTRUCTIONS
E5
8 VENTILATION SYSTEM
(PREPARING OVEN FOR INSTALLATION)
(C) VERTICAL EXHAUST: OUTSIDE VENTILATION
1. Remove and save 2 screws from back edge and 1 screw
from the top center of the Fan Cover Bracket. Remove
Fan Cover Bracket by sliding it in the opposite direction
of the arrow on the Fan Cover Bracket as shown in Figure
7.
2. Withdraw Hood Fan Unit carefully and slip wires out of
Wire Box. See Figure 8.
CAUTION: Do not pull or stretch hood fan wiring.
3. Turn the Hood Fan Unit end-over-end. Rotate the Hood
Fan Unit 90˚ so that the fan blade openings are facing
upward. Replace Hood Fan Unit into the oven. Be careful
not to pinch the lead wire between the inner bracket and
the Hood Fan Unit. See Figure 11.
4. Put the lead wire into Wire Box. See Figure 11.
5. Replace the Fan Cover Bracket by sliding it into the slits
in the same direction as the arrow on the Fan Cover
Bracket. Make sure the fan blades are visible through
the top openings in the oven before proceeding. Attach
the Fan Cover Bracket to unit with 3 screws, which were
removed in Step 1 above. See Figure 10. The Hood Fan
Unit is now rotated for vertical exhaust operation.
6. Attach the Exhaust Damper Assembly to the fan cover
bracket on the top of the outercase cabinet after mounting
the oven. To attach the Exhaust Damper Assembly, refer
to MOUNTING OVEN TO THE WALL, page 6 Figure 17.
9 OVEN INSTALLATION
THIS OVEN CANNOT BE PROPERLY INSTALLED WITHOUT REFERRING
TO THE MOUNTING INSTRUCTIONS FOUND ON BOTH TEMPLATES.
THE NEXT STEP IS TO READ AND FOLLOW MOUNTING INFORMATION
ON BOTH TOP CABINET AND WALL TEMPLATES.
NOTE: THIS OVEN SHOULD BE ATTACHED TO AT LEAST ONE WALL
STUD.
MOUNTING PLATE
1. Separate 4 Toggle Bolts, packed in the INSTALLATION
HARDWARE, from the Toggle Nuts.
2.
IMPORTANT
Use the mounting template
provided to Use wood screws to attach mounting
plate to the stud or studs. Use Toggle Bolts to attach
mounting plate through the holes UNLESS THOSE
HOLES ARE LOCATED ON THE STUD. Insert one
Toggle Bolt where appropriate (these correspond
to holes of the Wall
Template) and put the
Toggle Nuts onto the
Toggle Bolts. Figure 13.
Refer to instructions in
Wall Template.
3. Position the Mounting Plate with the Toggle Bolts
attached at the wall location and insert Toggle Nuts
and Bolts through the holes in the wall with the Toggle
Nuts closed. Figure 15. Use Wood Screws to attach the
Mounting Plate to studs.
NOTE: Before insertion, be sure you leave a space more
than the thickness of the wall between the Mounting Plate
and the end of each of the Toggle Nuts (in the closed
position). If you do not leave enough space, the Toggle
Nut will not be able to open on the other side of the wall.
Also, once a Toggle Nut opens, it cannot be withdrawn
from the hole; therefore make sure all of the Toggles are
in the correct position before insertion.
4. Align the Mounting Plate carefully and hold in position
while tightening Toggle Bolts. Pull Toggle Bolt toward you
and turn clockwise to tighten. Figure 14.

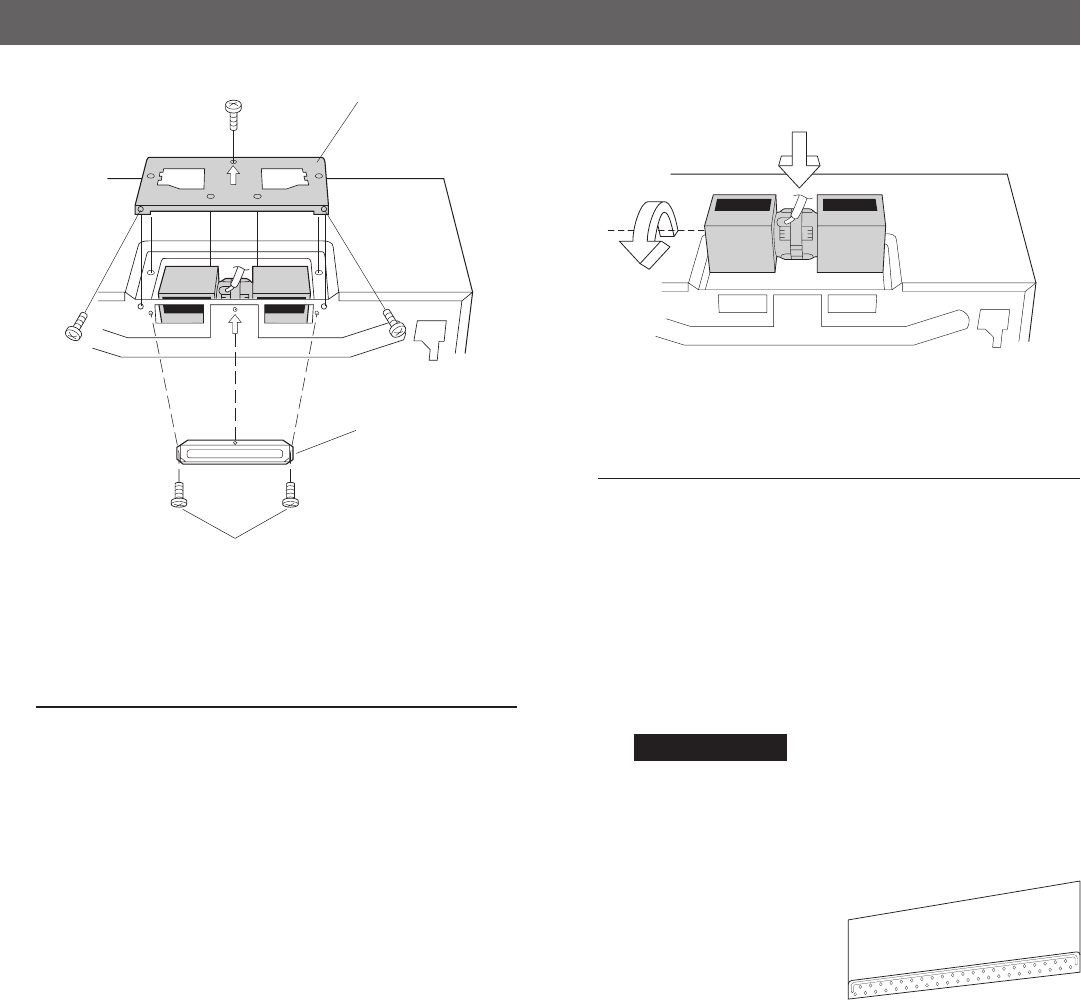

Figure 11
Figure 10
Tapping Screw
Exhaust Damper
Assembly
Fan Cover Bracket
Rotate 90°
