7
1
Oil Catch Tray
Hold the oil catch tray at its both ends and
slide forward.
NOTE: The tray may be filled with oil, so
be careful when removing it.
2
Rectifier Baffle Panel
After loosening the mounting screws
fixing the Rectifier Baffle Panel, dislocate
the temporary fixing holes of the Rectifier
Baffle Panel from the mounting screws,
then move the rectifier baffle panel
forward to remove it from the catches of
the body.
3
Filter
First, remove one knob fixing the filter,
then slide it to the arrow direction to
disengage from the catches.

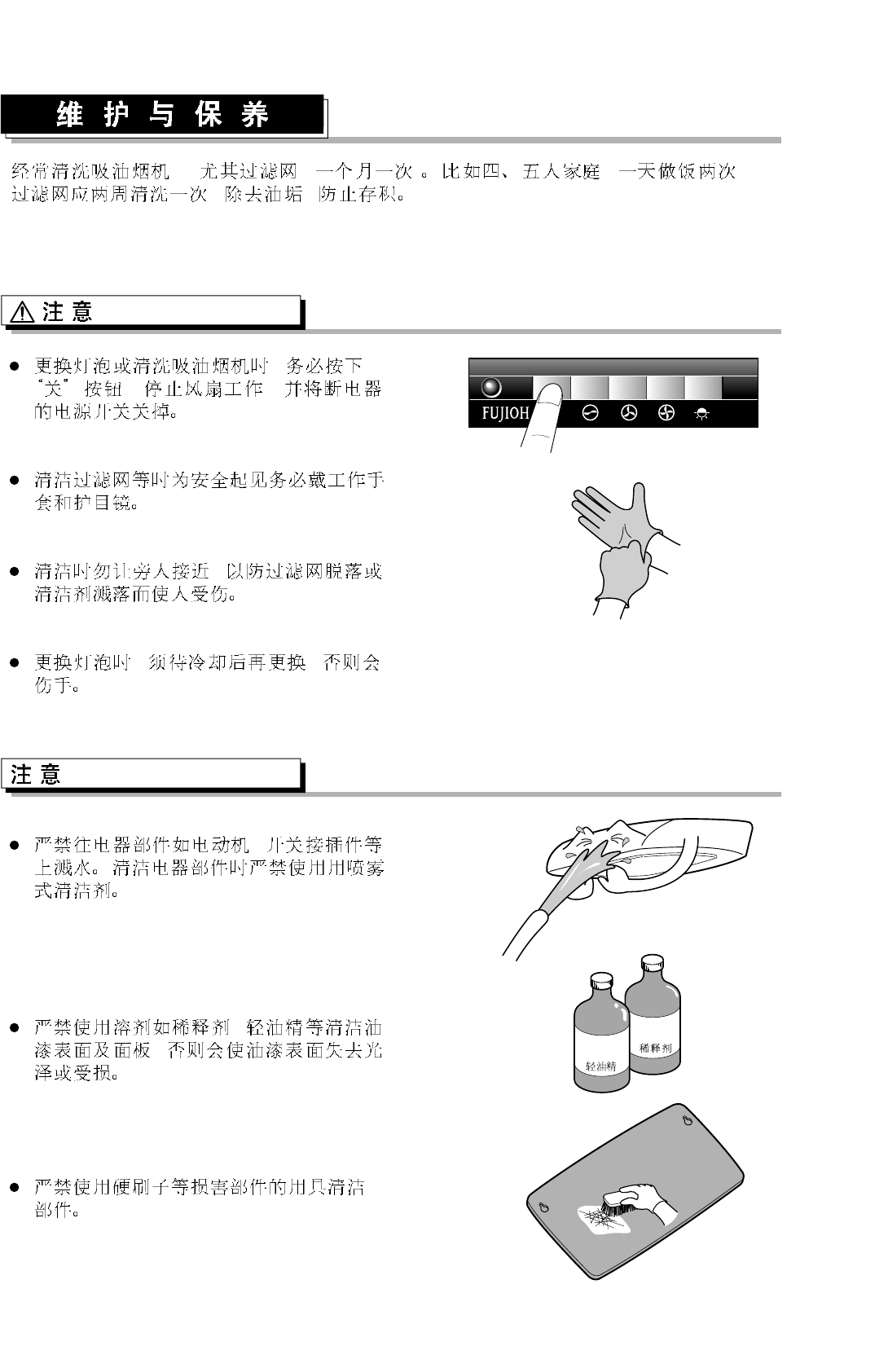

Disassembling
1
Filter and Oil Catch Tray
After immersing the filter and oil catch tray
in water with a mild detergent for 30 to 40
minutes, wash them with a toothbrush or
the like to remove dirt.
Clean the filter frequently to avoid grease
contamination and grease build-up, which
is difficult to clean.
Cleaning
Oil Catch Tray
Rectifier Baffle Panel
Catch
Temporary
Fixing Hole
Filter
Knob
Catch
42
, ( , ) , ,
, ,
,
, ,
,
, ,
,
,
,
