VI. Wiring Diagrams

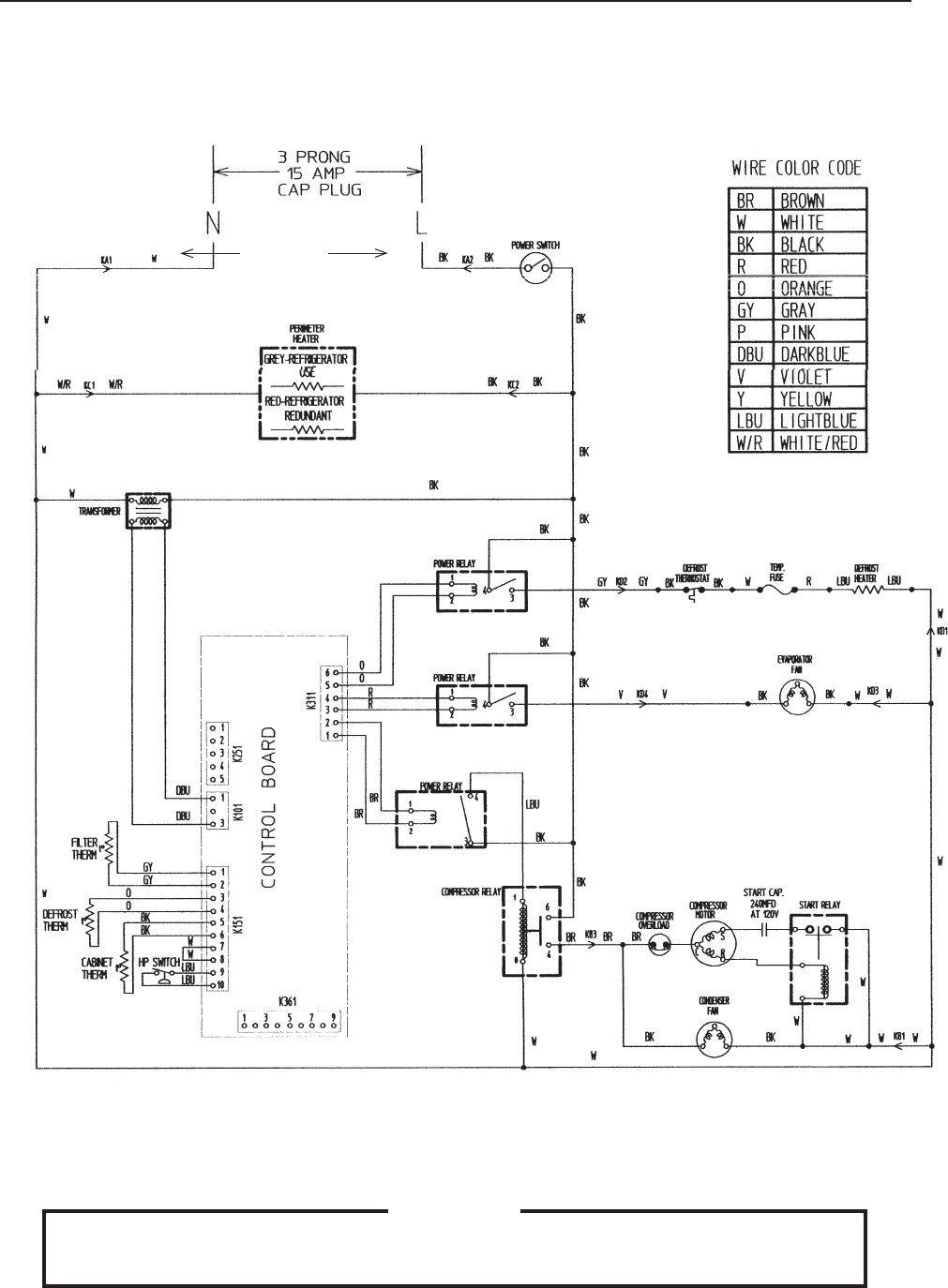

A1. HUR40A, HWR40A (auxiliary code Q5 and earlier)
Note: Jumper (color: white) between pins 7 and 8 of connector K151 may not be
present on all units, but this will not adversely affect performance.
CAUTION
Before diagnosing and/or servicing the unit, conrm that you have the proper
wiring diagram by checking against the diagram located inside the front panel.
115/60/1
Transformer Output
10V at 115V
