ColdFusion Icemaker Adapter Kit Installation Instructions
Publication Number: 629096828INS 4 of 4 © 2008-2010, IMI Cornelius Inc.
Adapter Kit Operating Instructions
1. The plastic lid of the kit slides in and out and also hinges upward. This provides access to the hopper in the
event manual ice filling is required. Simply pull out the lid and hinge upward. The lid will remain in the up
position on its own.
2. If manual filling is required, the lid must be pulled out and lifted up out of the way. Do not leave the lid down
and rest a bucket of ice on it while manual filling as this may cause damage to the lid.

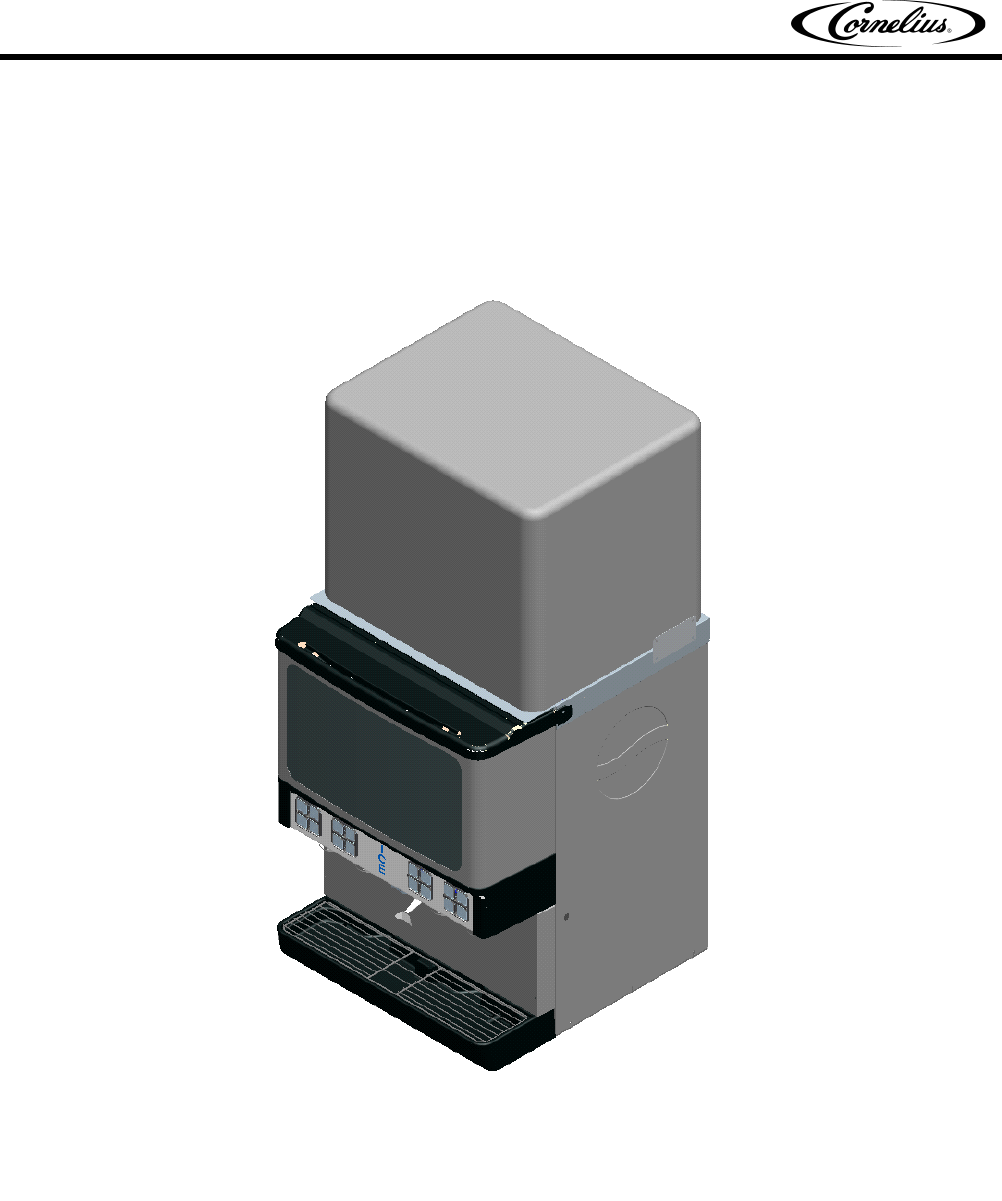

Figure 5
- COMPLETED ASSEMBLY –
COLD FUSION DISPENSER WITH ADAPTER KIT
P/N 629096828, AND 30” X 24.5” ICE MAKER
