ILLUSTRATED PARTS LIST
Manual Part No. 630460158IPL
07212005
IMI Cornelius Co., 2005
XTREME ICE (522 and 530)
3 of 14
Rev A
XTREME ICE MAKER (522 AND 530 SERIES)
SEE DETAIL A
SEE DETAIL B
DETAIL B DETAIL A
1
1
2
3
4
5
6
7
6
9
10
11
12

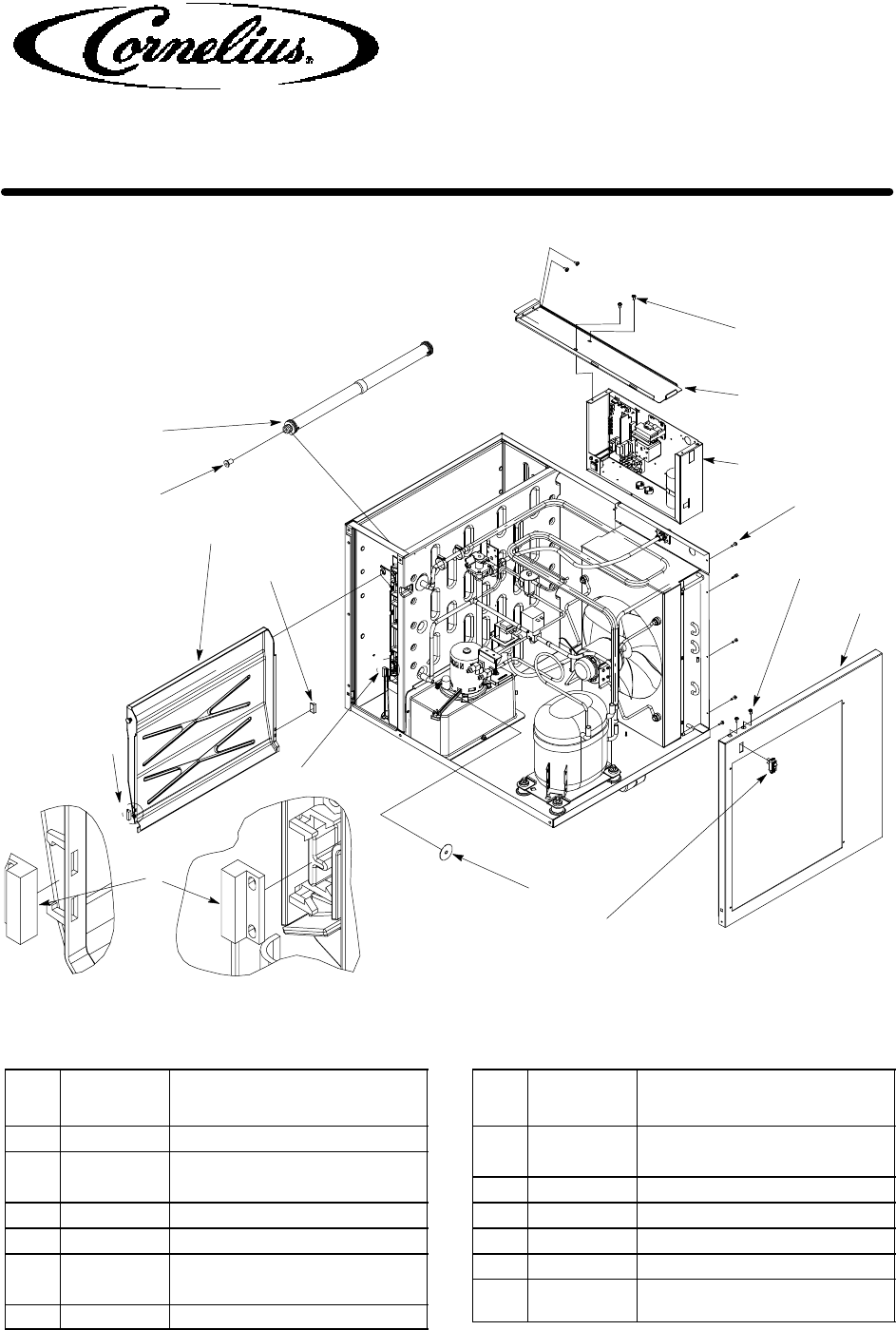

FIGURE 2. TRIM ASSEMBLY (AIR CONDENSER SHOWN)
Item
No. Part No. Name
1 07578 Screw TC 8-32 TRPH 12
2 630201037 Brace Elec Box (522 Model)
630201033 Brace Elec Box (530 Model)
3 Electrical Box Assy (See Figure 10)
4 165384000 Screw SM 8 TA HX 16
5 630201034 Panel Side RH 120V 60HZ
630201193 Panel Side RH 230V 50/60HZ
6 630900893 Washer SL .340 I.D.
Item
No. Part No. Name
7 630900808 Swt Rocker On/Off 120V 60HZ
630900924 Swt Rocker On/Off 230V 50/60HZ
8 630900798 Switch Proximity
9 630900828 Cover Evap Medium
10 630900870 Fitg Placeholder
11 630900908 Orifice Flow Reducer
12 631500120 Kit Svc Water Distributor Asy
(See Figure 11)
