ILLUSTRATED PARTS LIST
Manual Part No. 630460158IPL
07212005
IMI Cornelius Co., 2005
XTREME ICE (522 and 530)
6 of 14
Rev A
XTREME ICE MAKER (522 AND 530 SERIES)
1
7
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
SEE DETAIL A
25
14
26
27
30
28
13
29
8
DETAIL A
4
5
6
2

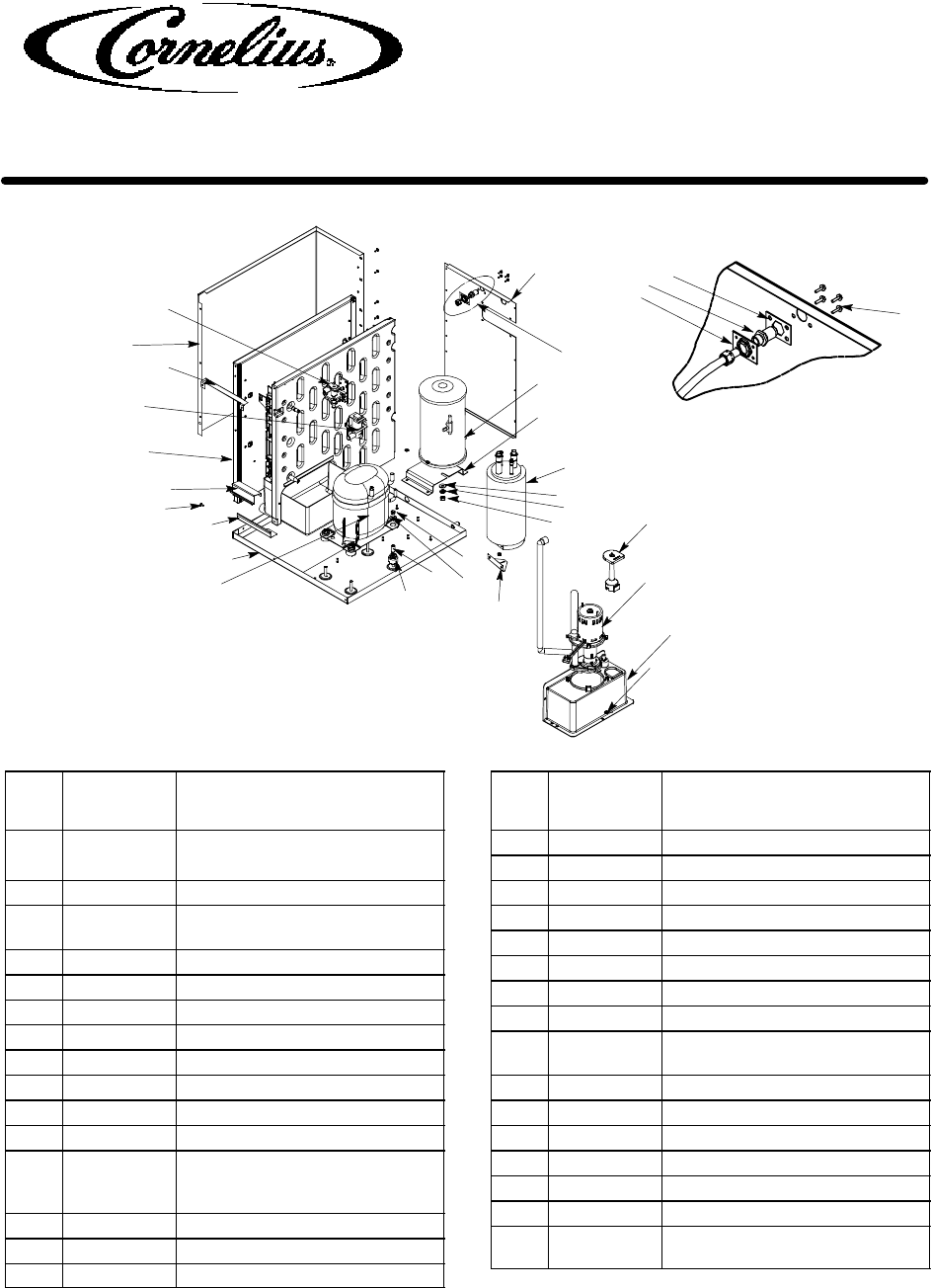

FIGURE 5. BUILD ASSEMBLY (REMOTE)
Item
No. Part No. Name
1 630201054 Wrap Cab (522 Series)
630201042 Wrap Cab (530 Series)
2 165384000 Screw 8 TA HX 16
3 650057 Tube Poly .265 I.D. (Sold by the
Foot)
4 630200935 Flange Blkhd Fitg
5 630900783 Fitg Blkhd 3/8 Comp x 3/8 MF
6 630201570 Flange, Bulkhead Fitg. Flat
7 630201052 Panel Back
8 630900868 Sensoe Pressure Pickup
9 Water Pump Assy (See Figure 12)
10 630900895 Nut Hex 8-32
11 630900869 Pan Water Wrap
12 631500053
630900739
630900738
Kit Comp 120V 60HZ
Comp 230V 50HZ
Comp 230V 60HZ
13 164083005 Nut Hex 5/16-18
14 164154001 Washer Ft .375 I.D.
15 630900745 Sleeve Grommet Comp
Item
No. Part No. Name
16 630900744 Grommet Mount Comp
17 630900786 Valve Solenoid Water
18 630201036 Brace Bulkhead
19 630900225 Receiver
20 Bulkhead Assy (See Figure 7)
21 164126000 Screw SM 8 TA TRPH 16
22 165637008 Valve Dump
23 630201086 Brkt Wtr Pan
24 630000788
630000759
Base Chassis (522 Series)
Base Chassis (530 Series)
25 164820914 Brkt Rec Btm
26 01022 Washer Lk .380 I.D.
27 09652 Nut Hex 3/8-16
28 630201126 Brkt Wtr Pan Cap
29 166073001 Foamed Accumulator Assembly
30 630201524 Accumulator Bracket
31 630900945 Compressor Crankcase Heater (not
shown)
