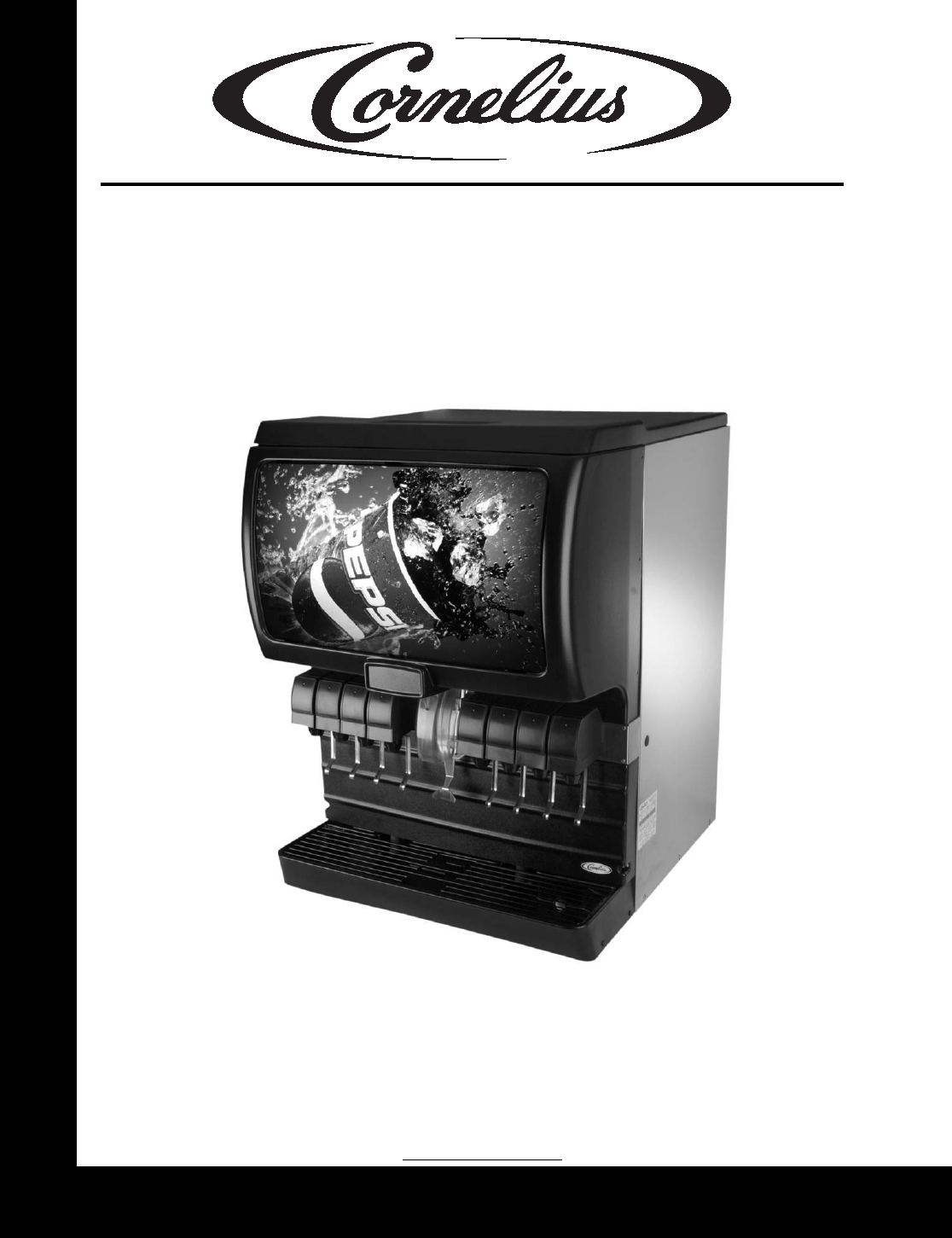

IDC Installation Manual
© 2005-2008, IMI Cornelius Inc. - 1 - Publication Number: 621057403INS
INSTALLATION MANUAL
IDC 2XX with Cold Carbonation
DESCRIPTION
The IDC series of dispensers solves your ice and beverage service needs in a sanitary, space saving,
economical way. Designed to be manually filled with ice from any remote ice–making source, these
dispensers will dispense cubes (up to 1–1/4 inch in size), cubelets, and compressed (not flaked). In
addition, the units include beverage faucets, a cold plate, an internal carbonator tank and an external
pump for the carbonator, and are designed to be supplied direct from syrup tanks with no additional
cooling required.
SPECIFICATION
Model Descriptions: IDC 215
B=Beverage
C=Coldplate
H=Internal Carb
Z=No Drip Tray
IDC 255
B=Beverage
C=Coldplate
H=Internal Carb
Z=No Drip Tray
Ice Storage: 215 Pounds 255 Pounds
Maximum Number of Faucets
Available:
10 10
Built–in Cold Plate: Yes Yes
Electrical: 120/1/60,
9.3 Amps of Total Unit Draw
220/1/50,
4.7 Amps of Total Unit Draw
Dimensions: Width 30 inch
Deep 30-11/16 inch
High 36 inch (to top of bin)
36-3/4 inch (to top of lid)
Z-Models
Width 30 inch
Deep 23-1/16 inch
High 36 inch (to top of bin)
36-3/4 inch (to top of lid)
30 inch
30-11/16 inch
39 inch (to top of bin)
39-3/4 inch (to top of lid)
30 inch
23-1/16 inch
39 inch (to top of bin)
39-3/4 inch (to top of lid)
CO
2
Operating Pressure 75-psig (max) 75-psig (max)
Revision Date: February 5, 2008 Revision: E
