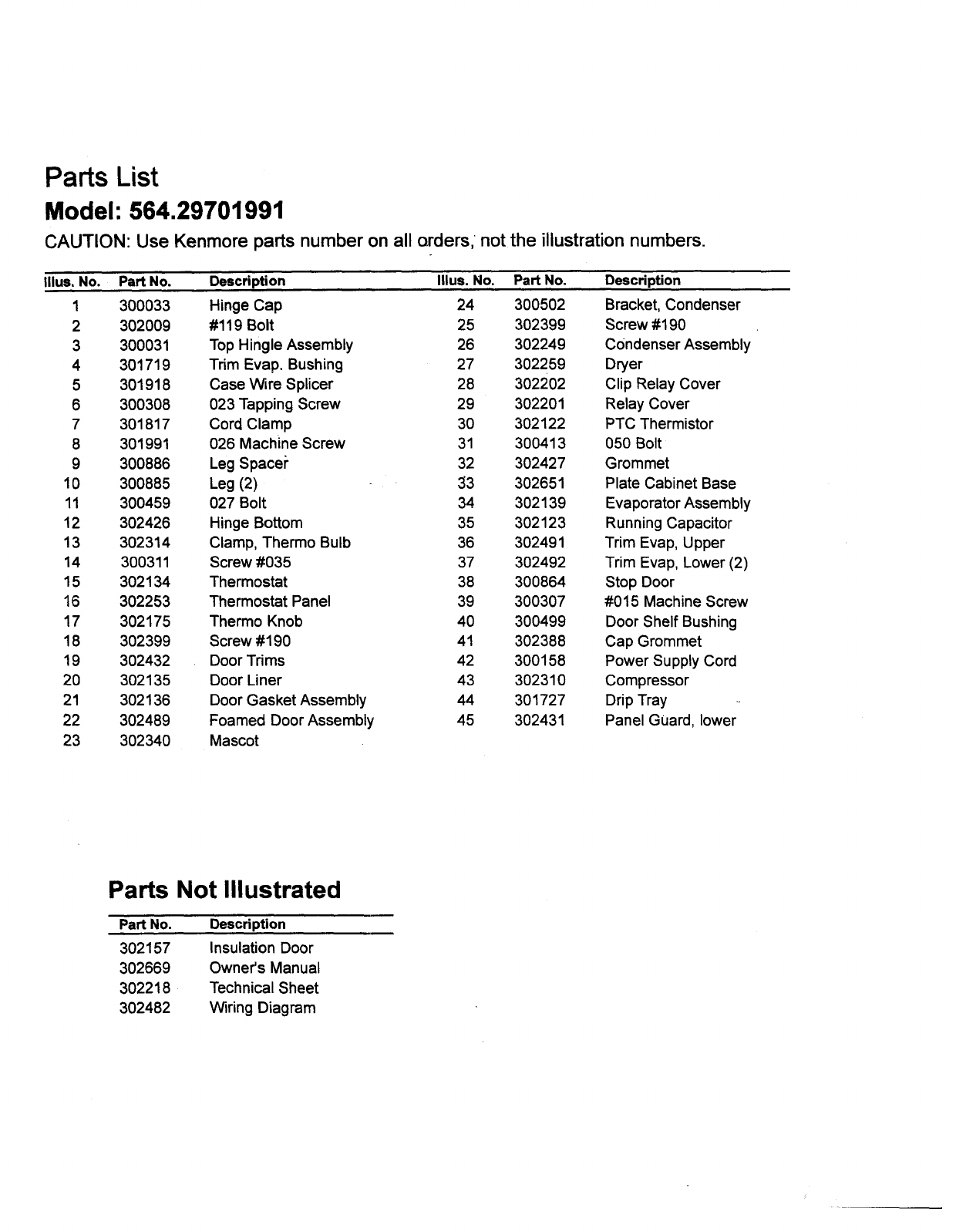

Parts List
Model: 564.29701991
CAUTION: Use Kenmore parts number on all orders, not the illustration numbers.
Illus, No. Part No. Description Illus. No. Part No. Description
1 300033 Hinge Cap 24 300502 Bracket, Condenser
2 302009 #119 Bolt 25 302399 Screw #190
3 300031 Top Hingle Assembly 26 302249 Condenser Assembly
4 301719 Trim Evap, Bushing 27 302259 Dryer
5 301918 Case Wire Splicer 28 302202 Clip Relay Cover
6 300308 023 Tapping Screw 29 302201 Relay Cover
7 301817 Cord Clamp 30 302122 PTC Thermistor
8 301991 026 Machine Screw 31 300413 050 Bolt
9 300886 Leg Space_" 32 302427 Grommet
10 300885 Leg (2) 33 302651 Plate Cabinet Base
11 300459 027 Bolt 34 302139 Evaporator Assembly
12 302426 Hinge Bottom 35 302123 Running Capacitor
13 302314 Clamp, Thermo Bulb 36 302491 Trim Evap, Upper
14 300311 Screw #035 37 302492 Trim Evap, Lower (2)
15 302134 Thermostat 38 300864 Stop Door
16 302253 Thermostat Panel 39 300307 #015 Machine Screw
17 302175 Thermo Knob 40 300499 Door Shelf Bushing
18 302399 Screw #190 41 302388 Cap Grommet
19 302432 Door Trims 42 300158 Power Supply Cord
20 302135 Door Liner 43 302310 Compressor
21 302136 Door Gasket Assembly 44 301727 Drip Tray --
22 302489 Foamed Door Assembly 45 302431 Panel Guard, lower
23 302340 Mascot
Parts Not Illustrated
Part No. Description
302157 Insulation Door
302669 Owners Manual
302218 Technical Sheet
302482 Wiring Diagram
