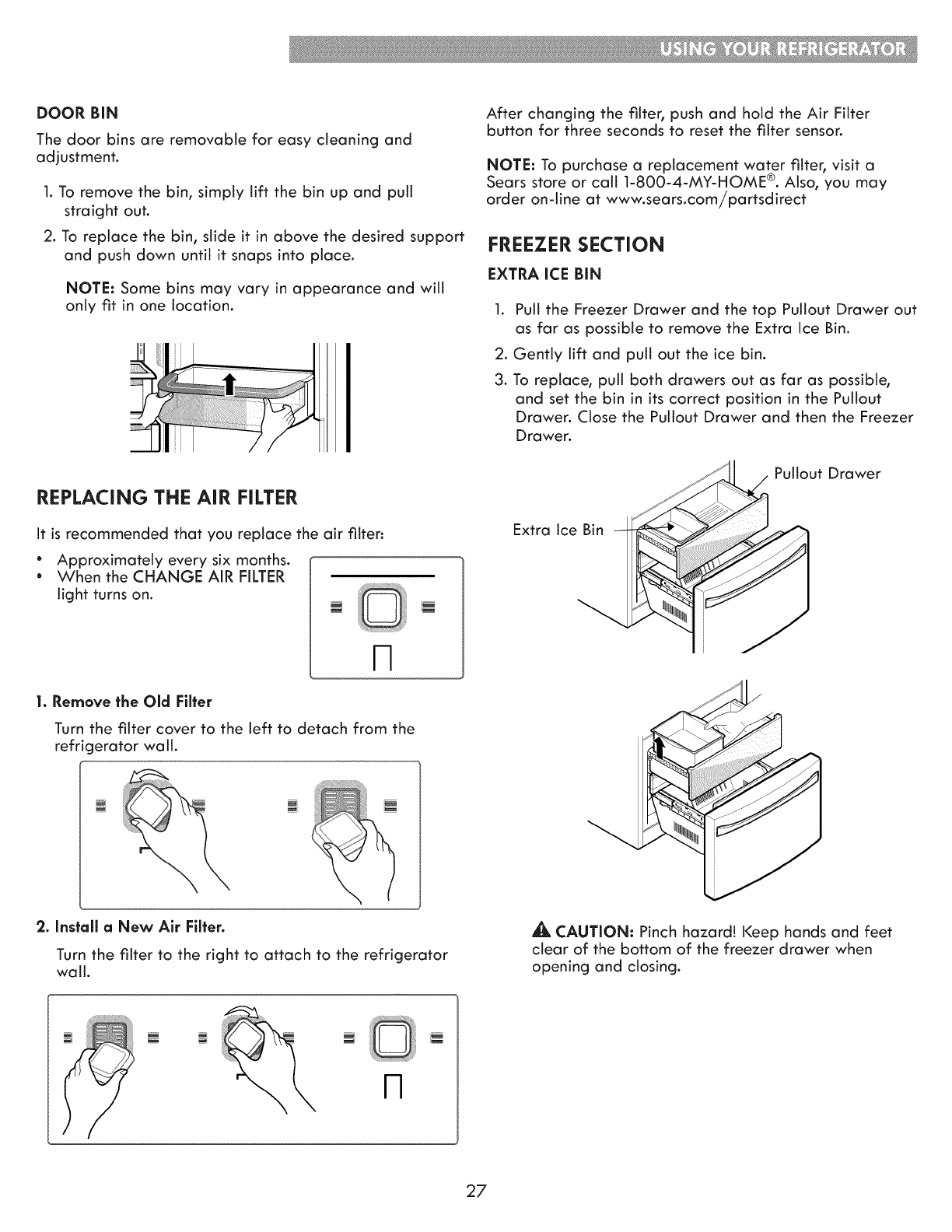

DOOR BiN
The door bins are removable for easy cleaning and
adjustment.
1.To remove the bin, simply lift the bin up and putt
straight out.
2. To replace the bin, slide it in above the desired support
and push down until it snaps into place.
NOTE: Some bins may vary in appearance and will
only fit in one location.
REPLACING THE AiR FILTER
It is recommended that you replace the air filter:
* Approximately every six months.
* When the CHANGE AIR FILTER
light turns on.
1. Remove the Old Filter
Turn the filter cover to the left to detach from the
refrigerator wall.
2. install a New Air Filter.
Turn the filter to the right to attach to the refrigerator
wall.
H
After changing the filter, push and hold the Air Filter
button for three seconds to reset the filter sensor.
NOTE: To purchase a replacement water filter, visit a
Sears store or call 1-800-4-MY-HOME ®. Also, you may
order on-line at www.sears.com/partsdirect
FREEZER SECTION
EXTRA iCE BiN
1. Putt the Freezer Drawer and the top Pullout Drawer out
as far as possible to remove the Extra Ice Bin.
2. Gently lift and putt out the ice bin.
3. To replace, pull both drawers out as far as possible,
and set the bin in its correct position in the Pullout
Drawer. Close the Pullout Drawer and then the Freezer
Drawer.
Pullout Drawer
Extra Ice Bin
A, CAUTION: Pinch hazard! Keep hands and feet
clear of the bottom of the freezer drawer when
opening and closing.
27
