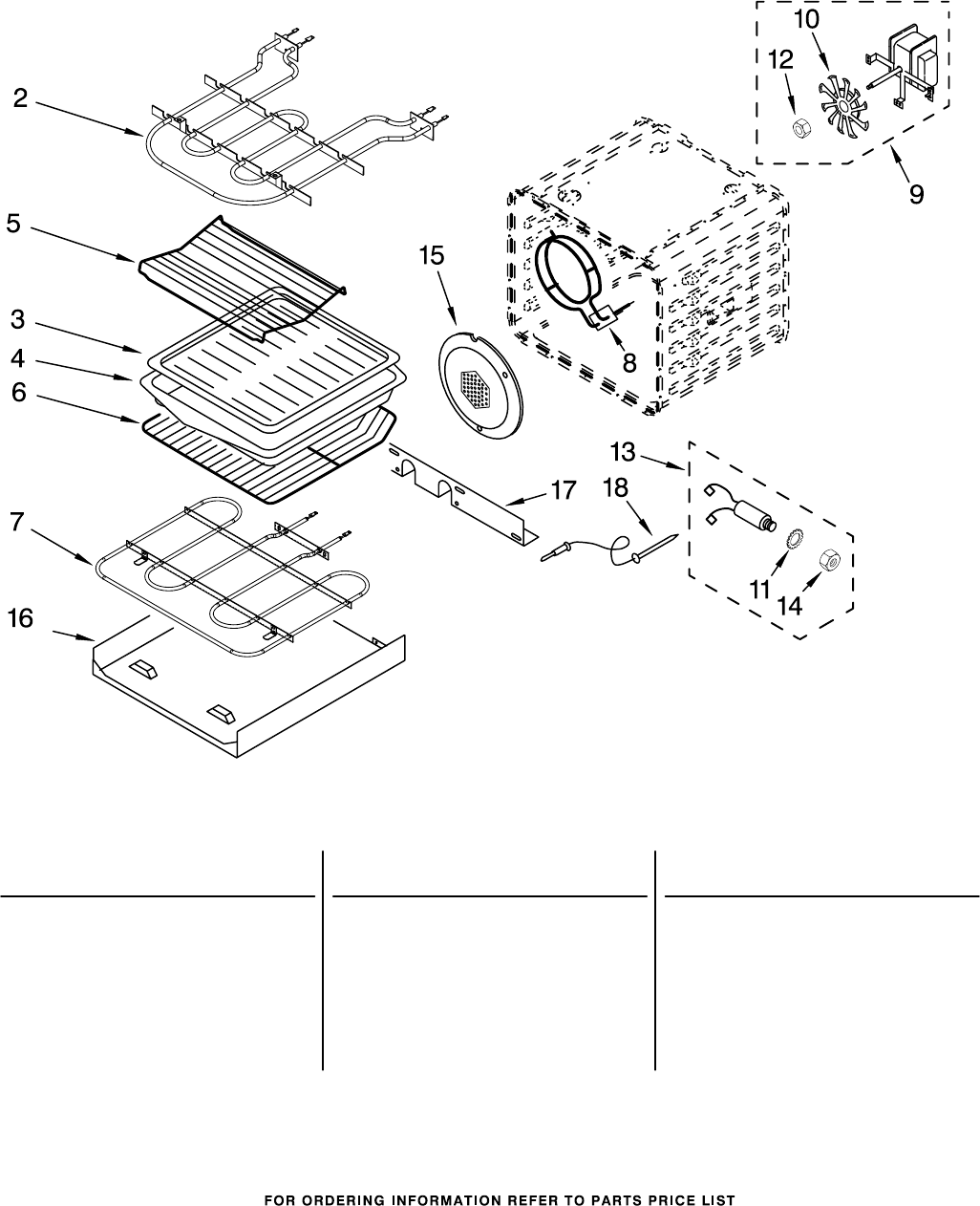

INTERNAL OVEN PARTS
For Models: KEBC167MSS00
(Stainless Steel)
8186173
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
2 8301514 Element, Broil
4449154 Screw
3 3147563 Grill, Broiler
4 3147845 Pan, Broiler
5 3181534 Rack, Roasting
6 8300796 Rack, Oven
7 8300204 Element, Bake
4449154 Screw
8 4452157 Element, Convect.
4449154 Screw
9 4451583 Motor Convection
4449154 Screw
10 4452226 Blade, Fan
11 4448882 Lock Washer
12 4452227 Nut
13 4451355 Jack, Meat Probe
14 4448881 Hex Nut
15 4448418 Cover, Fan
4449154 Screw
16 8300799 Tray, Hidden Bake
17 8300800 Cover, Hidden Bake
4449809 Screw
18 4448948 Meat Probe
