Merco Savory C-40 Toaster User Manual



Transmission Bearing (Left side)
1. Remove left side panel.
2. Remove the two lock nuts holding bearing retainer
and remove retainer.
3. Remove old bearing.
4. Install new bearing and seat in opening.
5. Replace retainer, nuts and left side panel.
K Conveyor Chain Replace-
ment:
1. Remove toast receiving tray, delivery chute, left
and right side panels.

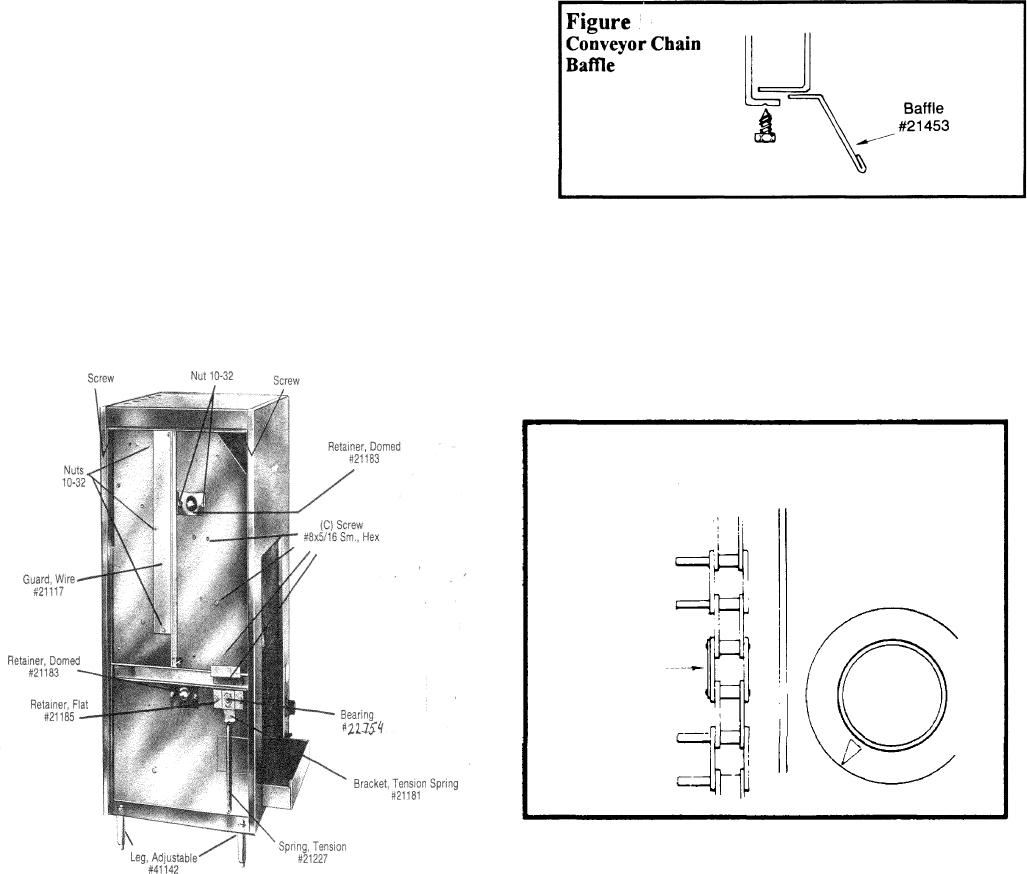

2. Remove the two screws in upper edge of front
opening that hold the front baffle. Slide baffle
toward back of machine to remove (Figure #14).
14
3. Remove baskets by slightly spreading chains,
sliding basket to one side and lifting out.
4. Release the tension spring from spring bracket
on both sides of tension bracket on both sides
of tension assembly.
4. Install new bearing and seat in opening.
5. Replace retainer, nuts, insulation, heater wiring and side
panel.
Coupling Bearing (Left side)
1. Remove left side panel and insulation.
2. Remove the two lock nuts holding bearing retainer and
remove retainer.
3. Remove old bearing.
4. Install new bearing and seat in opening.
5. Replace retainer and lock nuts.
Tension Assembly Bearing (Right or Left)
1. Remove either side panel.
2. Remove one end of tension spring from tension bracket.
3. Remove the two lock nuts holding bearing retainer and
remove retainer.
4. Remove tension bracket and old bearing.
5. Install new bearing and seat in opening (Figure 12).
6. Replace tension bracket, retainer, lock nuts and spring.
NOTE: If tension bracket has two anchor holes for spring
use hole closest to the front of machine.
Transmission Bearing (Right side)
1. See Section 1; follow steps 1, 2 and 3.
2. Remove the two lock nuts holding bearing retainer and
remove retainer.
3. Remove old bearing.
4. Install new bearing and seat in opening.
5. Replace retainer and lock nuts.
6. See Section 1; Follow steps 4, 5 and 6.
6
Figure 15
