Air extraction mode
Non-return flaps
^ Place the non-return flaps into the
exhaust connections at the top of the
motor assembly so that the flaps
open in the "up" direction.
^ Turn the non-return flaps slightly to
the left to lock them in place.
Reducing collar
^
If using 5" (125 mm) ducting, place
the reducing collars into the exhaust
connections and turn left to lock them
in place.

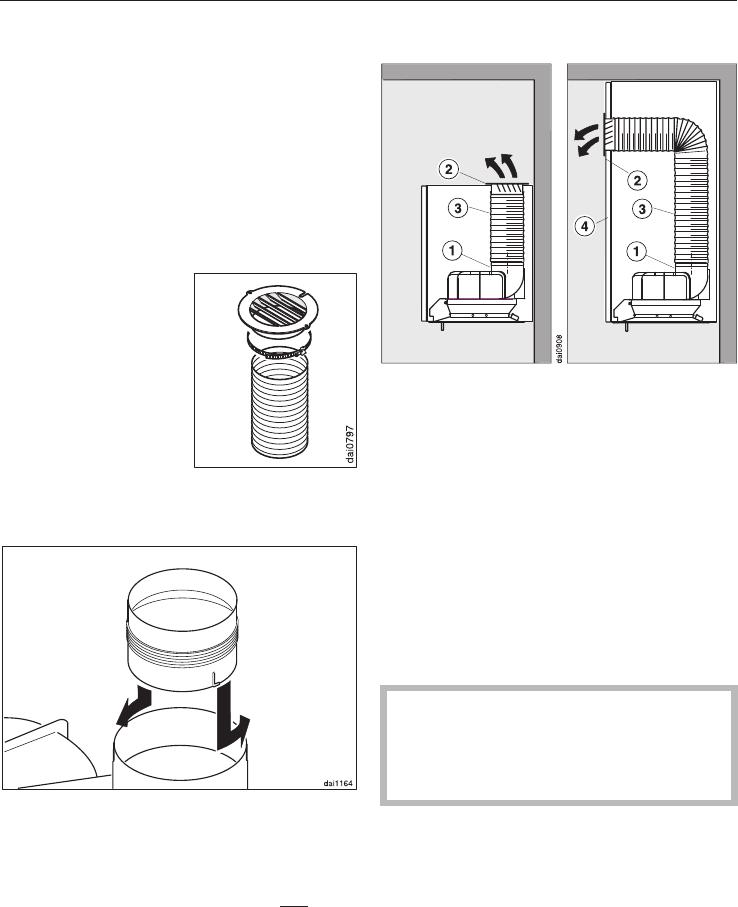

Exhaust connection
^
Connect the ductwork to the exhaust
connection using appropriate
measures for the type of ductwork
being installed (hose clamp, duct
tape, etc.).
Note:
A Y- adapter is supplied with the
DA 362-110. It may be used to feed the
exhaust from both connections to a
common duct.
Installation
30
