8. CHECKING THE GRILL

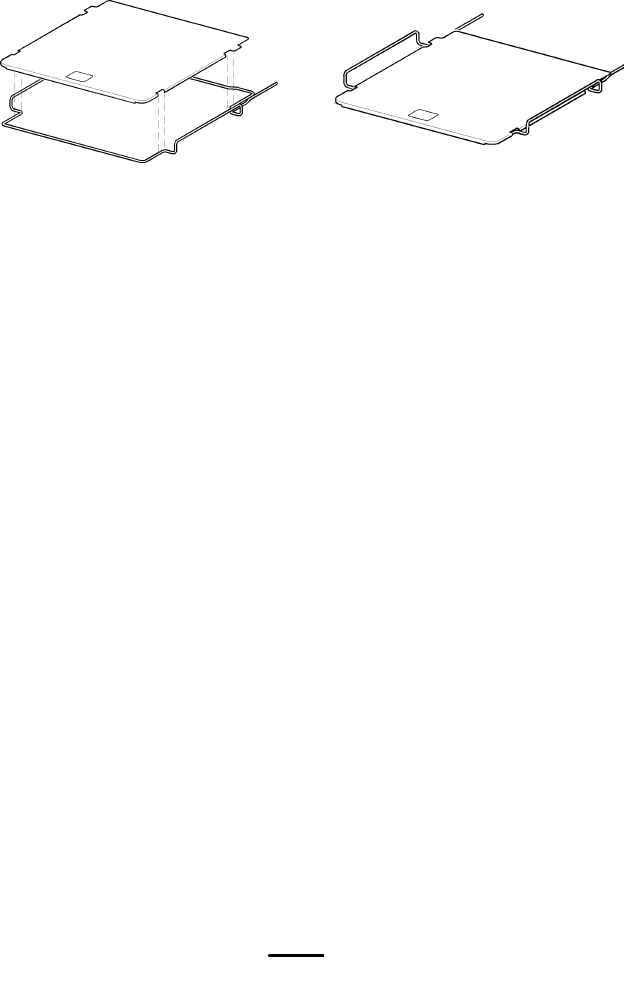

Remove the protective film from the grill pan shelf. Fit the grill pan shelf to the splashplate canopy (4 screws).
Place the grill pan containing the grid on to the grill pan shelf. Light the grill burner by turning the tap to its' full
on position and pressing the ignition button. As soon as the burner is lit the button can be released.
If the ignition of the grill fails ensure the grill H.T wire is fitted to the generator (see Section 2).
9. CHECKING THE HOTPLATE
Fit the burner crowns, caps and pan supports ensuring that they are correctly seated. Check each of the
hotplate burners in turn by turning each hotplate tap to its full on position and pressing the ignition button. As
soon as the burner is lit the button can be released.
10. CHECKING THE MAIN OVEN
1. Turn the oven thermostat knob to Mk 9 and press the ignition button. As soon as the burner is alight the
button can be released.
2. There should now be a low gas rate to the burner, which is the F.S.D. by-pass rate.
3. When the F.S.D. phial has heated up it opens the F.S.D. valve which allows the main gas supply to the
oven burner.
4. Set the oven control to Mk 2, close the oven door and check that after about 10 minutes the flame size
has reduced.
5. Turn off the control and check that the oven flames go out.
GENERAL NOTE
Instruct the user on how to use the appliance and its ignition system.
Refer the user to the wording in the inside cover which gives advice on the safe operation of the appliance.
35
C L A S S I C
