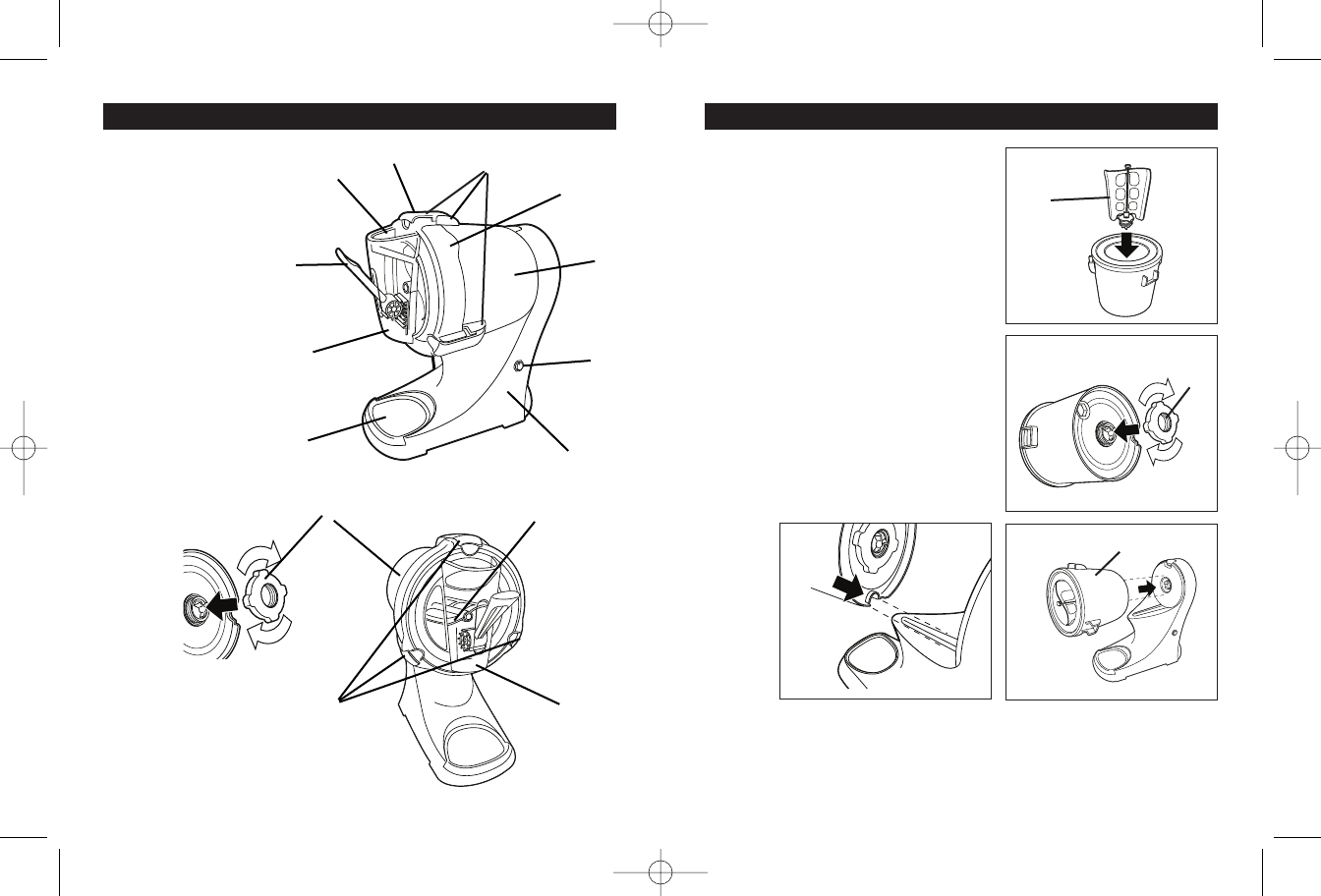

PARTS AND ASSEMBLY
A. Drink Tray
B. Dispensing Spout
C. Dispensing Lever
D. Assembly Ring
E. Mixing Paddle
F. Recipe Chute
G. Cover
H. Locking Clips (3)
I. Canister Brackets (3)
J. Freezer Canister
K. Base
L. On/Off Power Switch
K
C
H
A
B
J
I
F
G
L
H
B
E
D
ASSEMBLY
1. Attach MIXING PADDLE to the
inside of the FREEZER CANISTER,
using the ASSEMBLY RING.
(See Fig.1)
2. Place the ASSEMBLY RING
on the bottom of the FREEZER
CANISTER and rotate clockwise
until the MIXING PADDLE is
secure. (See Fig.2)
3. Mount the FREEZER CANISTER
to the BASE until it clicks in place.
(See Fig.3)
NOTE: Be sure to line up the groove
on the FREEZER CANISTER with the
corresponding groove on the BASE.
(See Fig.4)
Fig.1
Fig.2
E
D
PARTS AND ASSEMBLY (CONT.)
Fig.3
J
Fig.4
