NOTE
All U-Line units (except
Stainless Steel models) have
a zero clearance for the door
to open (see Figure 1). See
BUILT-IN INSTALLATION for
additional clearance require-
ments. Stainless Steel mod-
els require a minimum of 2-
1/2" door handle clearance
when installed against a wall.

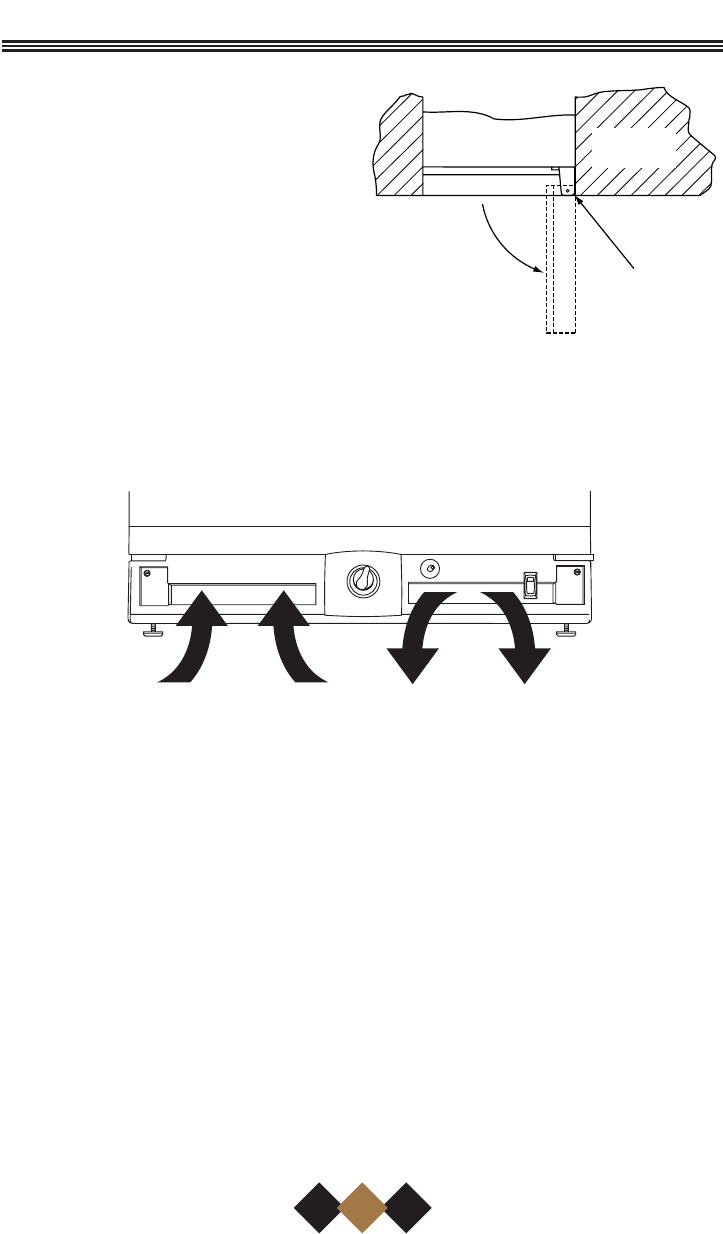

Figure 1
5. Position the unit to allow free air flow through the front grille
(see Figure 2).
Figure 2
6. Wipe out inside of unit with a damp cloth.
7. Final finish of the wooden wine rack trim must be applied at least
24 hours before re-installing the wooden rack trim into the cabinet.
8. Be sure to install the Anti-Tip brackets. Follow the instructions pro-
vided with the Anti-Tip bracket kit.
OFF
ON
1
2
3
4
5
6
7
C
O
L
D
E
R
W
A
R
M
E
R
UL307
INTAKE
EXHAUST
UL124A
DOOR
SWING
CABINET
OR WALL
0"
CLEARANCE
NEEDED
10
User’s Manual
30_10008_E_WC_UM.qxd 3/2/05 2:23 PM Page 10
