Whirlpool 2221515 Refrigerator User Manual



4

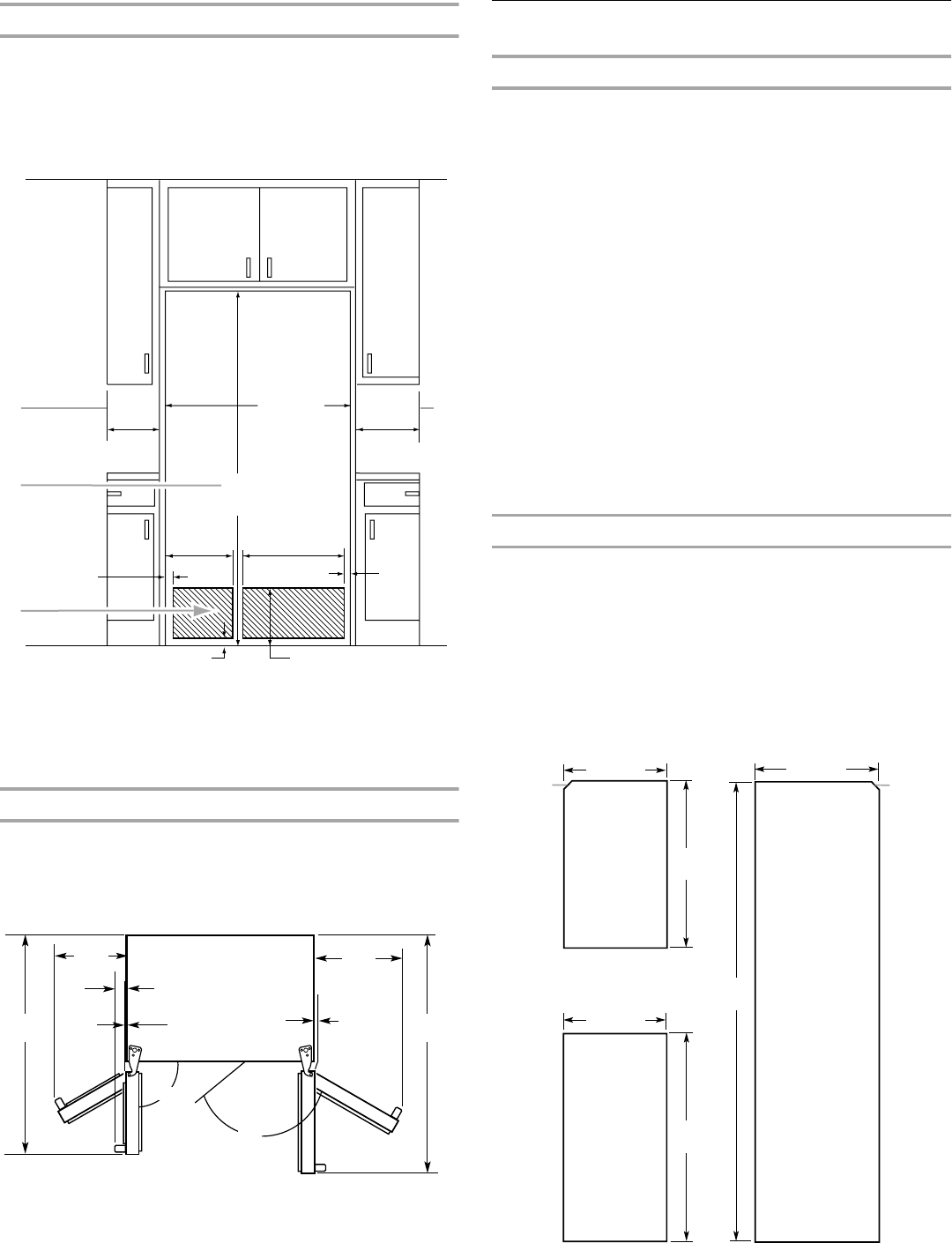

Opening Dimensions
NOTE: The water hookup and electrical outlet must be placed
near the bottom of the refrigerator. The recommended grounded
electrical outlet and water connection should be installed in the
shaded area as shown. For specifications, see the Electrical
Requirements or Water Supply Requirements section. If the
recommended water line location is used, no additional plumbing
needs to be purchased.
Door Swing Dimensions
Location must permit doors to open to a minimum of 150°. Allow
13¹⁄₄ in. (33.7 cm) minimum space between the side wall and the
freezer side of the refrigerator. Allow 16¹⁄₂ in. (41.9 cm) minimum
space between the side wall and the refrigerator side.
NOTE: Dimensions may vary based on model.
Door and Side Panels
Factory Door Panels and Side Trim Kits
All factory parts are available through your Whirlpool dealer or by
calling Whirlpool Parts and Accessories at 1-800-442-9991. In
Canada, call 1-800-807-6777.
Decorator Door Panel Kits
Decorator door panels kits are available. Follow the kit
instructions for installing the panels.
Order Kit Number:
White - #4378123
Black - #4378124
Biscuit - #4378125
NOTE: Door panel kits are not required for factory-installed
stainless steel models.
Cabinet Side Trim Kits
Cabinet side trim kits are available to customize refrigerator to
cabinet face. Follow the kit instructions for installing the side panel.
Order Kit Number:
White - #2208187W
Black - #2208187B
Biscuit - #2208187T
Stainless Steel - #2208187S
Custom Door Panels
If you plan to install custom wood panels, you will need to create
the panels yourself or consult a qualified cabinet maker or
carpenter. See dimensional drawings for panel specifications.
IMPORTANT: Panels weighing more than the recommended
weight may cause damage to your refrigerator. Refrigerator door
panel should not exceed 28 lbs. (12.7 kg). Freezer door panels
should not exceed 21 lbs. (9.5 kg).
You can create panels by screwing or gluing wood panels to ¹⁄₄ in.
(6.35 mm) plywood backing or by using ³⁄₄ in. (19.05 mm) stock
with routed edges.
1.
¹⁄₈
in. x
¹⁄₈
in. (3.2 x 3.2 mm) chamfer
1. Minimum fixed wall position
2. For full-overlay cabinet doors and a trim kit, the
height of the opening must be 72
¹⁄₈
in. (183.2 cm)
3. Recommended locations for electrical and water
connections
2
1
/
2"
(6.5 cm)
2"(5 cm)
2"
(5 cm)
9
1
/
4"
(23.5 cm)
12
1
/
2"
(32 cm)
72"
(182.9 cm)
36"
(91.5 cm)
13
1
/
4"
(34 cm)
16
1
/
2"
(42 cm)
20
1
/
4"
(51.5 cm)
1 1
3
2
13
1
/
4
"
(33.7 cm)
41
3
/
4
"
(106 cm)
2
1
/
8
"
(5.4 cm)
1
/
2
"
(12.7 mm)
16
1
/
2
"
(41.9 cm)
1
/
4
"
(6.4 mm)
43
3
/
8
"
(110.2 cm)
90˚
150˚
15
3
/
8
"
(39.1 cm)
15
3
/
8
"
(39.1 cm)
19
3
/
32
"
(48.5 cm)
1
1
23
3
/
4
"
(60.3 cm)
29
13
/
16
"
(75.7 cm)
67
15
/
16
"
(172.5 cm)
