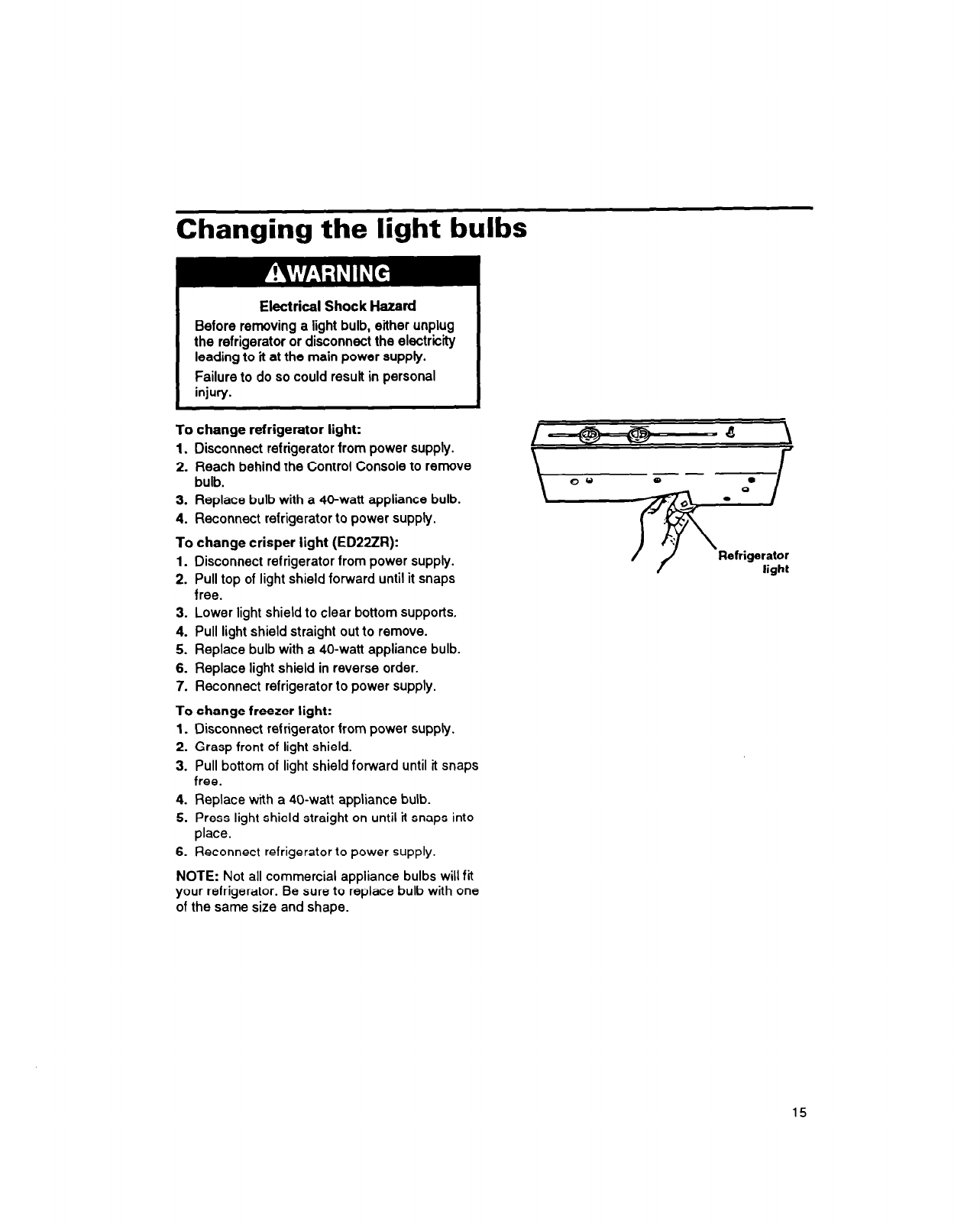

Changing the light bulbs
Electrical Shock Hazard
Before removing a light bulb, either unplug
the refrigerator or disconnect the electricity
leading to it at the main power supply.
Failure to do so could result in personal
i injury.
To change refrigerator light:
1. Disconnect refrigerator from power supply.
2. Reach behind the Control Console to remove
bulb.
3. Replace bulb with a 40-watt appliance bulb.
4. Reconnect refrigerator to power supply.
To change crisper light (ED22ZR):
1. Disconnect refrigerator from power supply.
2. Pull top of light shield forward until it snaps
free.
3. Lower light shield to clear bottom supports.
4. Pull light shield straight out to remove.
5. Replace bulb with a 40-watt appliance bulb.
6. Replace light shield in reverse order.
7. Reconnect refrigerator to power supply.
To change freezer light:
l_ Disconnect refrigerator from power supply.
2. Grasp front of light shield.
3. Pull bottom of light shield forward until it snaps
free.
4. Replace with a 40-watt appliance bulb.
5. Press light shield straight on until it snaps into
place.
6. Reconnect refrigerator to power supply.
NOTE: Not all commercial appliance bulbs will fit
your refrigerator. Be sure to replace bulb with one
of the same size and shape.
15
