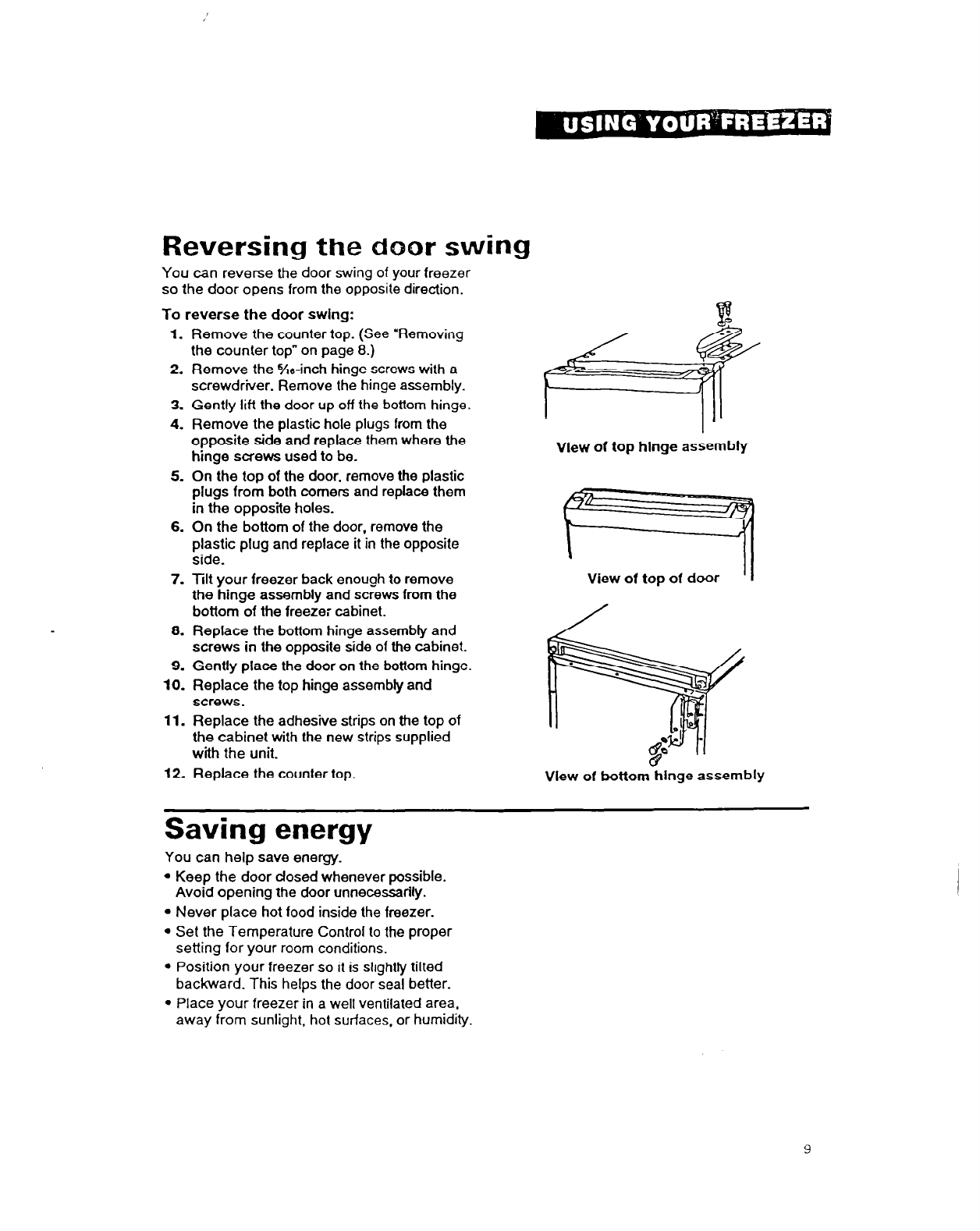

Reversing the door
swing
You can reverse the door swing of your freezer
so the door opens from the opposite direction.
To reverse the door swing:
1. Remove the counter top. (See “Removing
the counter top” on page 8.)
2. Remove the %-inch hinge screws with a
screwdriver. Remove the hinge assembly.
3. Gently lift the door up off the bottom hinge.
4. Remove the plastic hole plugs from the
opposite side and replace them where the
hinge sffews used to be.
5. On the top of the door, remove the plastic
plugs from both comers and replace them
in the opposite holes.
6. On the bottom of the door, remove the
plastic plug and replace it in the opposite
side.
7. Tilt your freezer back enough
to
remove
the hinge assembly and screws from the
bottom of the freezer cabinet.
8. Replace the bottom hinge assembly and
screws in the opposite side of the cabinet.
9. Gently place the door on the bottom hinge.
10. Replace the top hinge assembly and
screws.
11. Replace the adhesive strips on the top of
the cabinet with the new strips supplied
with the unit.
12. Replace the counter top.
Vlew of top hinge assembly
View of top of door
’
Vlew of bottom hinge assembly
Saving energy
You can help save energy.
l Keep the door dosed whenever possible.
Avoid opening the door unnecessarily.
l Never place hot food inside the freezer.
l Set the Temperature Control lo the proper
setting for your room conditions.
l Position your freezer so it is slightfy tilted
backward. This helps the door seal better.
l Place your freezer in a well ventilated area,
away from sunlight, hot surfaces, or humidity.
9
