Refrigerator Door
1. Remove the screw cover. See Graphic 6.
2. Remove refrigerator handle assembly, as shown. Keep all
parts together. See Graphic 6.
3. Remove door hinge hole plug from refrigerator door. Move to
opposite side hinge hole, as shown. See Graphic 3.
4. Remove door handle sealing screws. Move to opposite side of
refrigerator door, as shown. See Graphic 4.
5. Remove door handle hole plug and discard. See Graphic 7.
Replace on opposite side with the door handle hole plug
provided in the Reversibility Kit located in the crisper.
6. Remove door stop. Move to opposite side of refrigerator door,
as shown. See Graphic 5.
7. Position refrigerator handle on opposite side of the refrigerator
door, as shown. See Graphic 6. First, drive top two screws in
handle first. Align lower portion of handle and drive bottom
screw into handle.
8. Tighten all screws. Set aside refrigerator door until bottom
hinge is installed on refrigerator.
9. Replace screw cover. See Graphic 6.
Style 2 - Contour Door Models
Graphics follow these instructions.
Cabinet

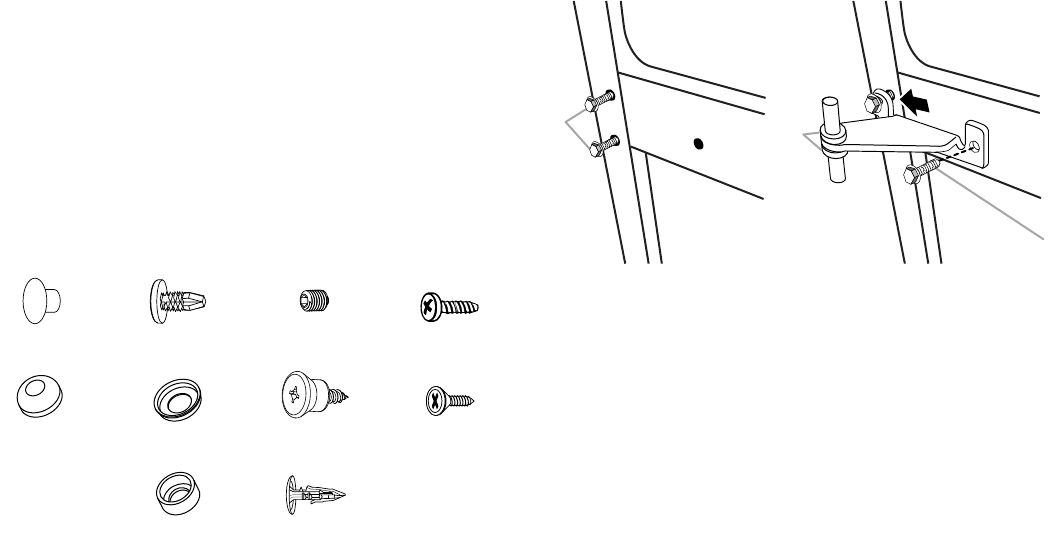

1. Remove the three dome caps and screws from handle side
and move them to opposite side. See Graphic 1-1.
2. Using the three
⁵⁄₁₆" hex-head hinge screws, insert two screws
halfway into the holes, leaving space to insert the center
hinge.
3. Slide the center hinge, from the right, onto the screws. Insert
the third screw, and tighten all screws completely.
NOTE: Make sure the washers are in place on both the top
and bottom pins of the center hinge.
4. Remove cabinet hinge hole plugs from the cabinet top and
move them to opposite side hinge holes, as shown. See
Graphic 1-2.
Freezer Door
1. Remove the freezer door handle. Using a ¹⁄₈" hex key, loosen
the setscrew located on the side of the handle. Pull the handle
straight out from the door. Keep all parts together. See
Graphic 2.
2. Remove the brand badge using the plastic tool (provided).
Replace it with the badge provided in the Reversibility Kit
located inside the crisper. For proper placement, see the
Brand Badge Placement template (the last page of this
manual).
NOTES:
■ To avoid scratching the finish, do not use a sharp or
metallic object to pry the brand badge from the door.
■ Rub a small amount of liquid dish soap over any adhesive
residue with your fingers. Rinse the door with warm water
and dry with a soft cloth.
3. Remove door stop. Move to opposite side of freezer door, as
shown. See Graphic 4.
4. Reinstall freezer handle on opposite side of the freezer door,
as shown. See Graphic 2.
5. Tighten all screws. Set aside door until hinges and refrigerator
compartment door are in place.
Door Hinge
Hole Plug
Cabinet Hinge
Hole Plug
Dome Cap
Dome Cap
Washer
Setscrew
Shoulder
Screw
Shoulder
Screw Washer
Door Stop
Screw
Flat-Head
Handle
Screw
Door Handle
Hole Plug
A.
⁵⁄₁₆
" Hex-head hinge screws
B. Washers
A
A
B
