MEGAPOWER CPU 8200-0421-03, REV. G
ADMINISTRATOR’S GUIDE
81 of 82

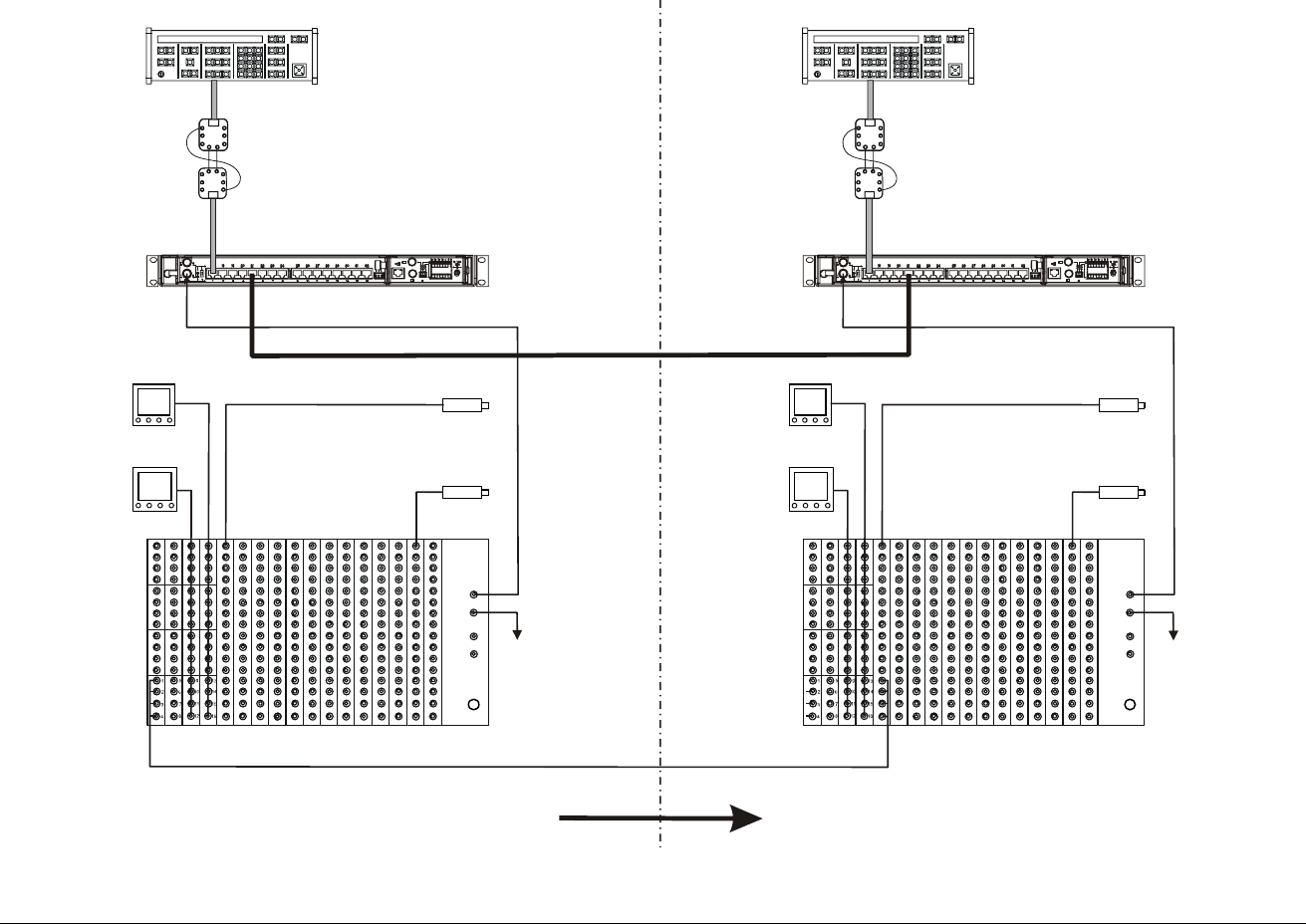

Typical Satellite System Connections – Two Sites, Unidirectional
T
E
S
T
/
E
X
P
A
N
S
I
O
N
OUT
IN
OUT
IN
DATA LINE
EXT. SYNC
50/60 Hz
T
E
S
T
/
E
X
P
A
N
S
I
O
N
OUT
IN
OUT
IN
DATA LINE
EXT. SYNC
50/60 Hz
Site 1 (Source Site)
Site 1 Keyboard
Site 1 MegaPower CPU
To other switcher
bays, code
generators, or
75-ohm termination
Data Line
Site 1 Monitors
Site 1 Cameras
Site 1 Switcher Bays
Video Trunks from Site 1 to Site 2
Site 2 (Receiving Site)
Site 2 Keyboard
Site 2 MegaPower CPU
To other
switcher bays,
code
generators, or
75-ohm
termination
Data Line
Site 2 Monitors
Site 2 Cameras
Site 2 Switcher Bays
RS-232 Link between Sites
