Appendix B System Overview
34 Users Guide ReadySystem 1U
Mounting and Cover Location

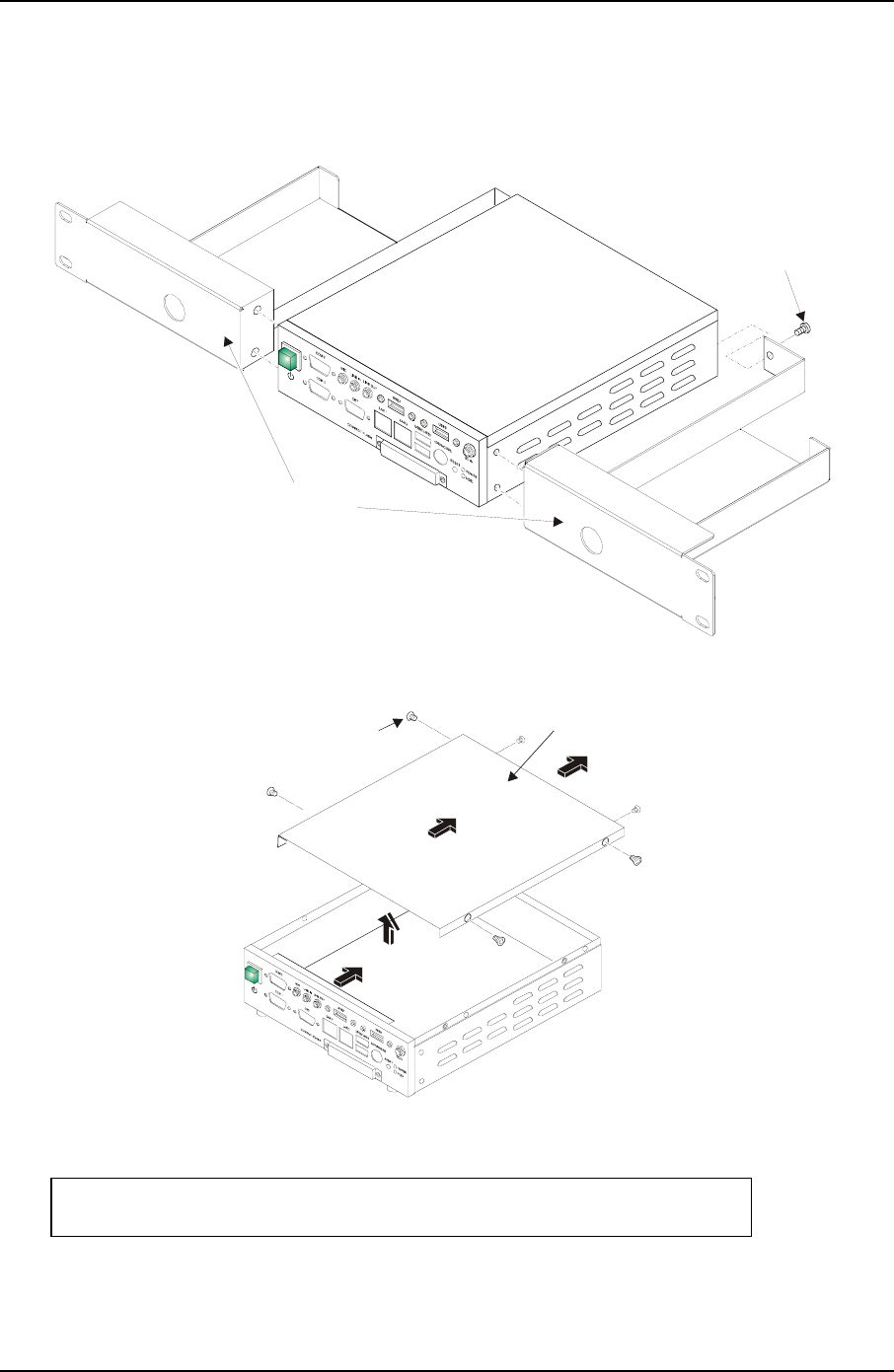

Figures B-11 and B-12 provide an illustration of the optional rack mounting and an illustration of the top
cover location. The four optional plastic feet with screws are also shown in Figure B-12.
RdyBx1U_02ba
1/4 - 20 UNC Screws (6)
Rackmount Sides (2)
(Left & Right)
Figure B-11. Rack Mounting Hardware
RdyBx1U_14ab
Remove Top Cover
M3x0.5 Screws (6)
Figure B-12. Removing Top Cover
NOTE Slide the top cover to the rear as shown in Figure B-12 before
lifting the top cover off the enclosure.
