Chapter 3: Installation
3-4 ESX-1320/ESX-1380 Installation Guide
a. Refer to Figure 3-1. Remove the four screws securing the ESX
brackets to the rack, and then pull the ESX out from the front of
the rack.

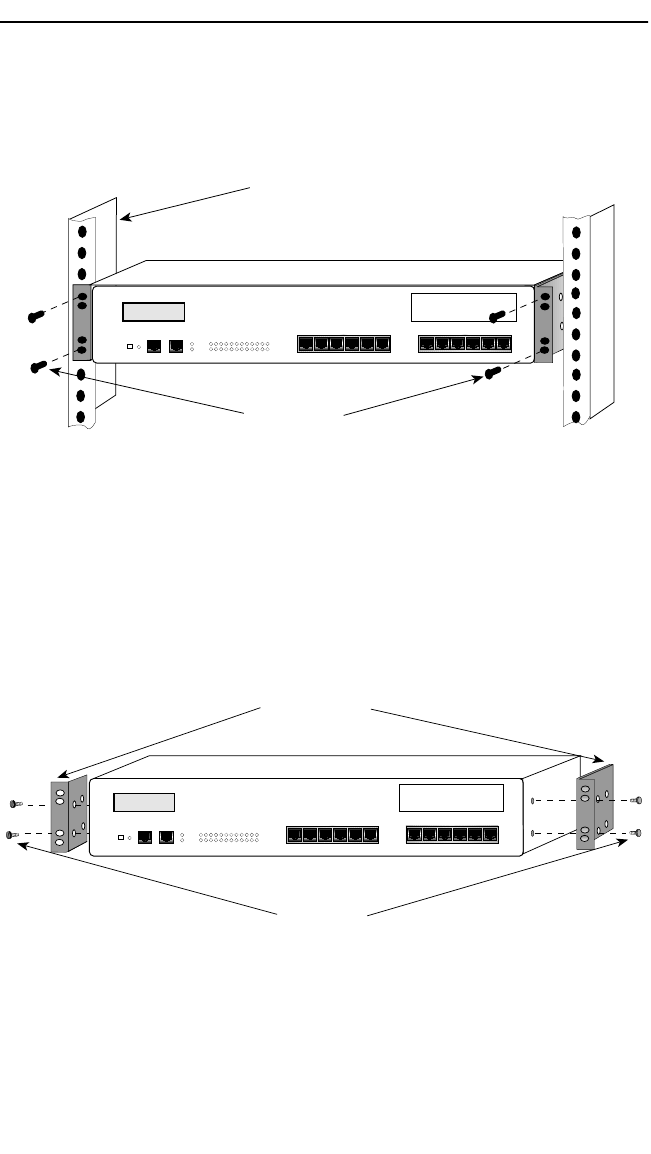

Figure 3-1 Unfastening/Removing the ESX from the Rack
b. Refer to Figure 3-2. Remove the four screws securing the
mounting brackets to the side of the ESX and remove the brackets
from the ESX.
Figure 3-2 Removing the Mounting Brackets
Screws (4)
19-Inch Rack
