13. Adjust the front of the rails (that you left loose in step 10) so that the threaded hole in the center of
the front of the rail aligns with the screw in the flange.
14. Screw the flange screws tightly into the rails, as shown in Figure 1-8.

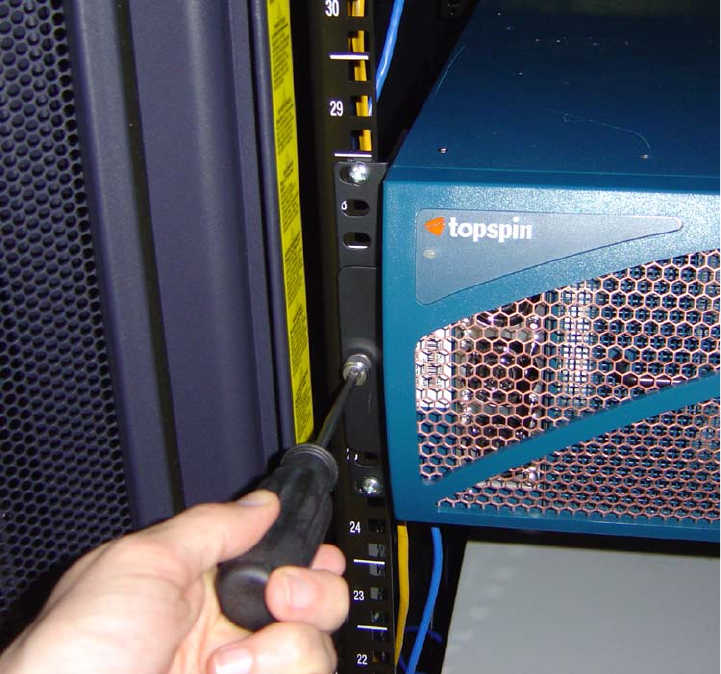

Figure 1-8: Securing the Chassis to the Rails
15. Firmly tighten the front rail screws.
Boot your Topspin 360 and Configure Basic
Connectivity
To configure basic connectivity, you must power-on the Server Switch and configure it with the Serial
Console port and a terminal or workstation. To configure basic Ethernet connectivity, you can apply a
static IP address to the Topspin 360, or you can configure the chassis to obtain an IP address from a
DHCP server.
To power-on and configure your Topspin 360, perform the following steps:
1. Use the serial cable (provided) to connect the serial console port of the Controller Card in slot one
of your Topspin 360 to a terminal or to a workstation that runs terminal-emulation software.
2. Launch a terminal session with the following parameters:
• Baud: 9600 bps
• Data Bits: 8
•Parity: None
• Stop Bits: 1
