EPSON EPL-N2700 Rev. A
Chapter 4 Disassembly/Assembly 118
18. Remove two screws (1305) securing the Fusing Roller Thermostat
to the Fuser Unit Frame Assembly and remove the Fusing Roller
Thermistor.

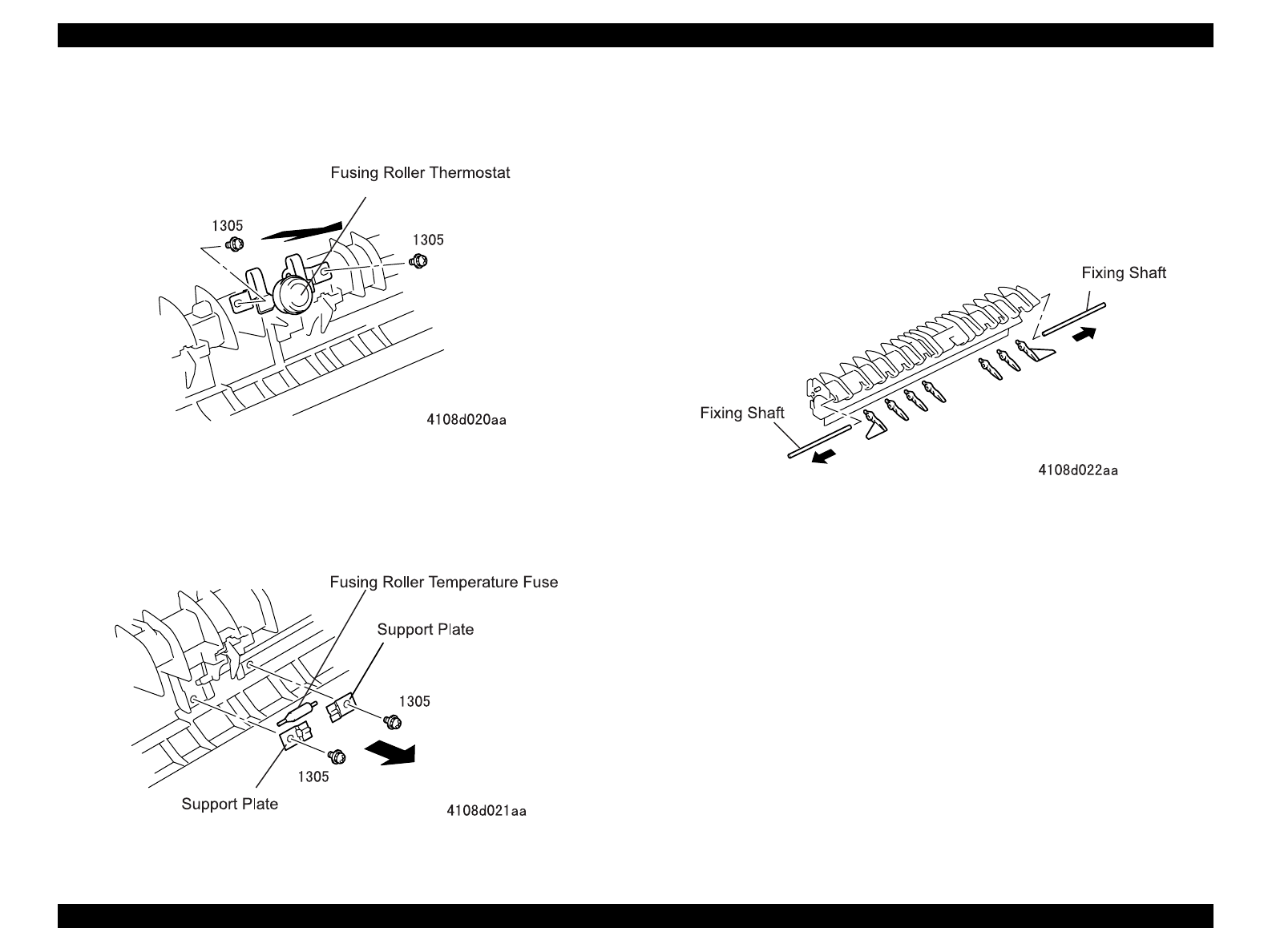

Figure 4-48. Fuser Lamp Termistor Removal
19. Remove two screws (1305) securing the Fusing Roller Temperature
Fuse to the Fuser Unit Frame Assembly and remove the Fusing
Roller Temperature Fuse.
Figure 4-49. Fusing Roller Temperature Fuse Removal
4.2.21.4 Upper Paper Separator Finger Removal
1. Remove the Upper Paper Separator Finger Assembly. (See Section
4.2.21.4.)
2. Slide the fixing shaft from the Upper Paper Separator Finger
Assembly and remove the Upper Paper Separator Fingers.
Figure 4-50. Upper Paper Separator Finger Removal
