PVS 405D • Connector Wiring 46
Terminating the speaker cable
To terminate the cable, strip the end of the cable 0.2 inch (5 mm) and secure the wires
into the supplied 4‑pole captive screw connector.

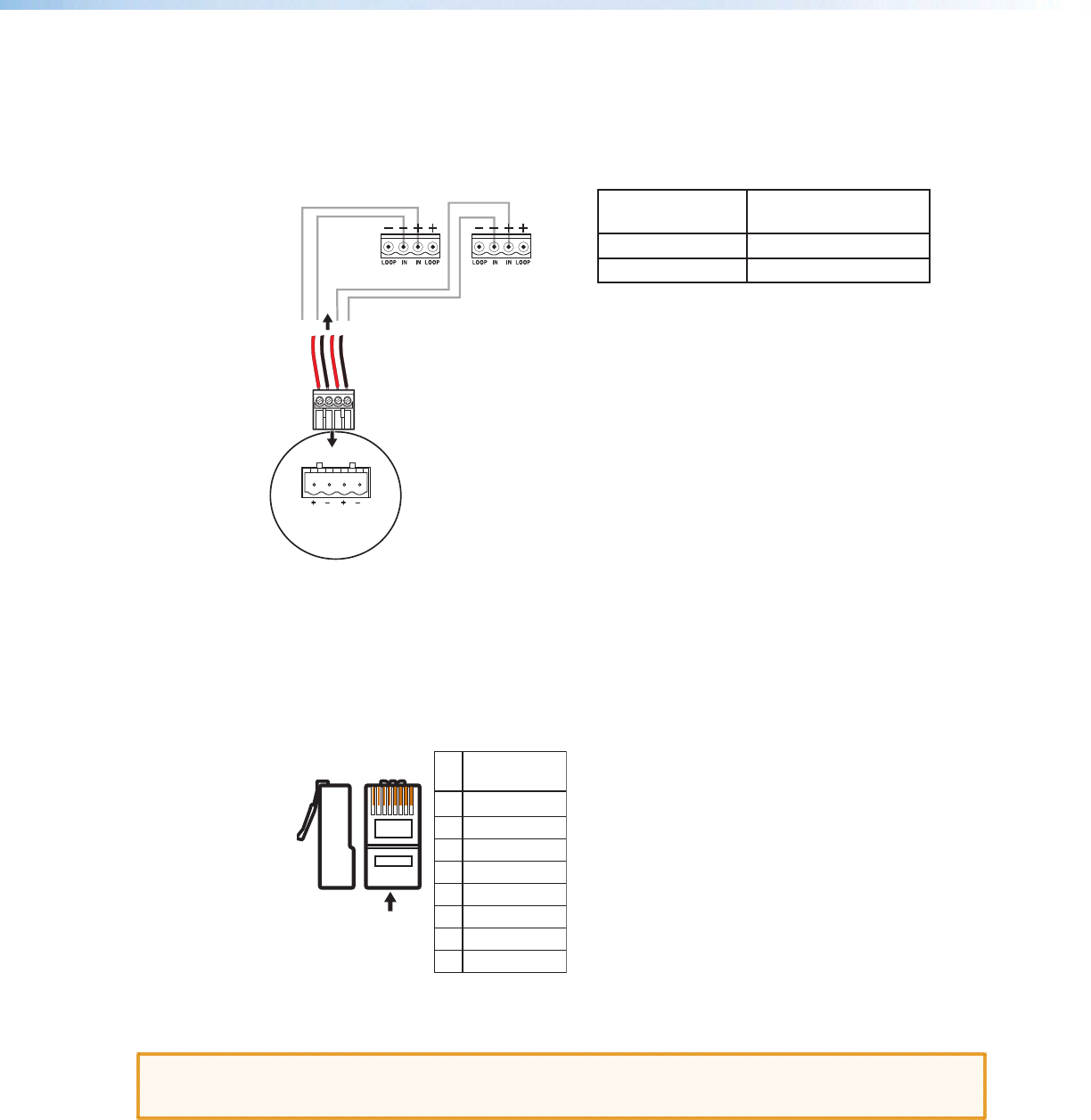

Figure 30. Wiring the Audio Output Connector
TP Cable Termination and Recommendations
The figure below details the recommended termination of both ends of TP cables with
RJ‑45 connectors in accordance with the TIA/EIA T568B wiring standard.
5
Pin
1
2
3
6
7
8
4
Wire Color
White-orange
Orange
White-green
White-blue
Green
White-brown
Brown
568B
Blue
1
2
3
4
5
6
7
8
RJ-45 Connector
Insert Twisted
Pair Wires
Pins:
Side View
Figure 31. TP Cable Termination
ATTENTION: The PoleVault signal transmission method is specic for PVS 405D switchers working with PVT digital
wallplates. DO NOT connect the input ports to an MTP system or to an Ethernet/LAN or data transmission
system.
Speaker wire color To PVS 405D terminal
(Left and Right)
Red Positive (+)
Black
Negative (‑)
PVS Switcher
Rear Panel
Speaker 1 Speaker 2
LR
4/8
Ohms
AMPLIFIED OUTPUTS
4-pole Captive
Screw Connector
Audio output
to speakers
