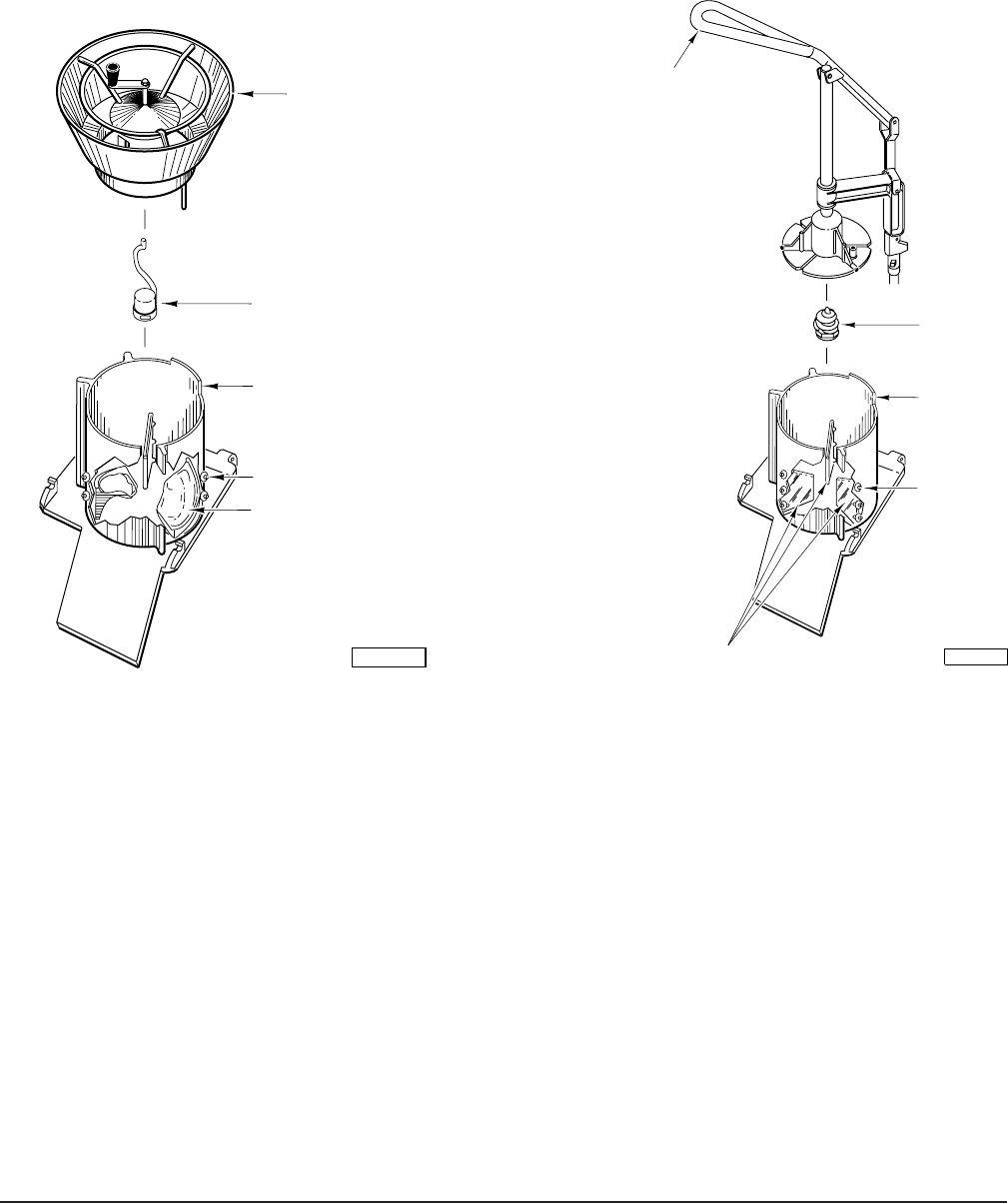

INSTALLING AND REMOVING THE FEED ATTACHMENTS

The feed hopper attachment (Fig. 7) is used mainly for cutting round products up to 3" (76 mm) in

diameter. The pusher plate feed attachment (Fig. 8) can be used for any type product.

Fig. 8

Feed Hopper

(Use the agitator device to secure the plates to the knife shaft.)

1. Press the STOP button.

2. Fit the feed cylinder with two internal guides (Fig. 7).

3. Insert the locking knob and interlock rod into the opening at the left rear of the feed cylinder and

place the feed hopper attachment in the center of the feed cylinder tube.

4. Press the feed hopper attachment down and turn the locking knob (Fig. 9) counterclockwise.

5. When removing, turn the locking knob clockwise and raise and remove the feed hopper attachment.

NUTS

THREE

INTERNAL

KNIVES

FEED

CYLINDER

PL-52970

DECORING

SCREW

PUSHER PLATE

FEED ATTACHMENT

TWO

INTERNAL

GUIDES

FEED

CYLINDER

PL-52969

AGITATOR

DEVICE

FEED HOPPER

ATTACHMENT

NUTS
