Concept
Concept Manual
10

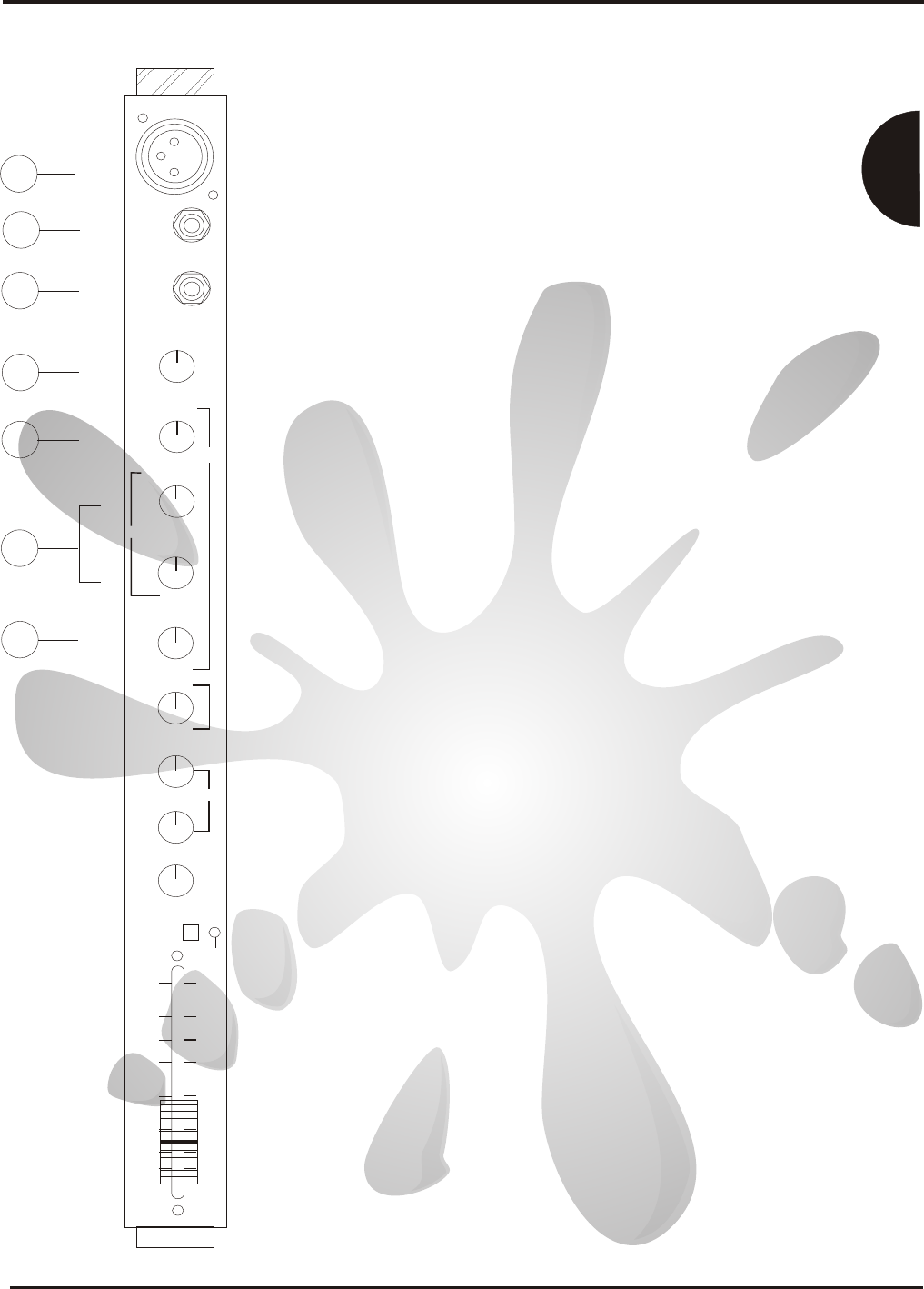

Mic/Line channel
5A) HI
5C) LO
5) EQUALISATION
5C
Each mono channel has an 'insert' via a stereo jack socket,wired to the tip send
,ring return convention . Effects units can be inserted here and enter the signal
path post 'gain' but pre-eq.Reverbs/compressors feedback eliminators etc can be
inserted here
3) INSERTS
The balanced line inputs are for all balanced/unbalanced line level signals from
keyboards, drum machines,tape machines and DI boxes. (eg; from guitars and
basses)
2) LINE INPUT (JACK)
Phantom powering is available to all 'mic' inputs for use with condenser
microphones
PHANTOM POWER
1
4) GAIN
Adjusts the level of the input signal into the channel.
It should be set so that the input signal is not buried in noise but not too high so
that clipping ocurrs,the peak lamp will illuminate to indicate this.
5B) Mid (gain + freq)
On Mic/Line channels there is a three band EQ system with a swept mid control
Cut and boost is provided in each band and a variable frequency control for the mid
control.
High/Treble frequencies can boosted or cut by this control.Sources that fall in this
range are cymbals,soprano vocals and keys above top C on a keyboard.
Mid range frequencies can be boosted or cut by this control.The frequency of cut is
adjustable from approx middle C and up 3 octaves.Music sources which fall in this
range are most Vocals ,lead/rythmn guitar , keyboard parts and brass sections.
Low/Bass frequencies can be boost or cut by this control such as bass guitar,kick
drums,deep[ vocals and keys below middle C on a keyboard.
3
4
2
5A
5B
1) MIC INPUT (XLR)
The input socket has been designed to accept both balanced and
unbalanced signals from microphones with an XLR input connector.
Good quality low impedance condenser or dynamic mic's should
preferably be used for best effect, these will ensure the best possible
results from hand held vocals or closely mic'd instruments.
WARNING
Phantom power must always be switched off when using unbalanced sources since
the voltage present on the connector may damage you microphones
The phantom power switch is above the Power lamp on the front panel
Always connect your condenser microphones before switching the +48V Phantom
Power On.
GAINGAIN
HIHI
MIDMID
EQEQ
+10+10
+6+6
0dB0dB
-6-6
-10-10
-20-20
-30-30
PEAKPEAK
PFLPFL
PANPAN
DIGI FXDIGI FX
AUX 1AUX 1 FXFX
MONMON
LOLO
GAINGAIN
FREQFREQ
LINELINE
INSERTINSERT
