The Mon control is set for pre-fade operation for use a monitor
send.The signal passes to the feedback filter and monitor fader in the
master section before leaving by the jack socket marked Mon.
Mon
continued
6)
PFL
11)11)
AUX1
The AUX 1 is set for 'post fade' operation,it traditionaly being used as an
effects send.The signal passes to the Aux 1 master send control before
leaving by the socket marked Aux 1 Output.
The DIGIFX control is a post -fade FX send.It controls the amount of
signal sent to the built in digital effects board.The signal can then the sent
DIGI FX
BAL
Adjusts the stereol signal level to the left and right master outputs,the
signal being sent equally left and right when set central
Peak
The pre fade listen switch when depressed directs the 'pre fader' channel
signal to the right hand 'bargraph' (VU) display and headphones, allowing
channel 'Gain' to be set and cued. This is non destructive so may be used
at any time during the performance without effecting the main mix output.
The channel fader sets the output level of the channel sent to the
MASTERS .The relationship between the 'fader' and the channel 'gain'
controls is important and this is explained in detail in the setting up
procedure section.
A Peak led is provided which illuminates when the channel level is
approaching clipping.This also iluminates when the PFL switch is enabled
FADER
7)7)
8)8)
16)16)
10)10)
12)12)

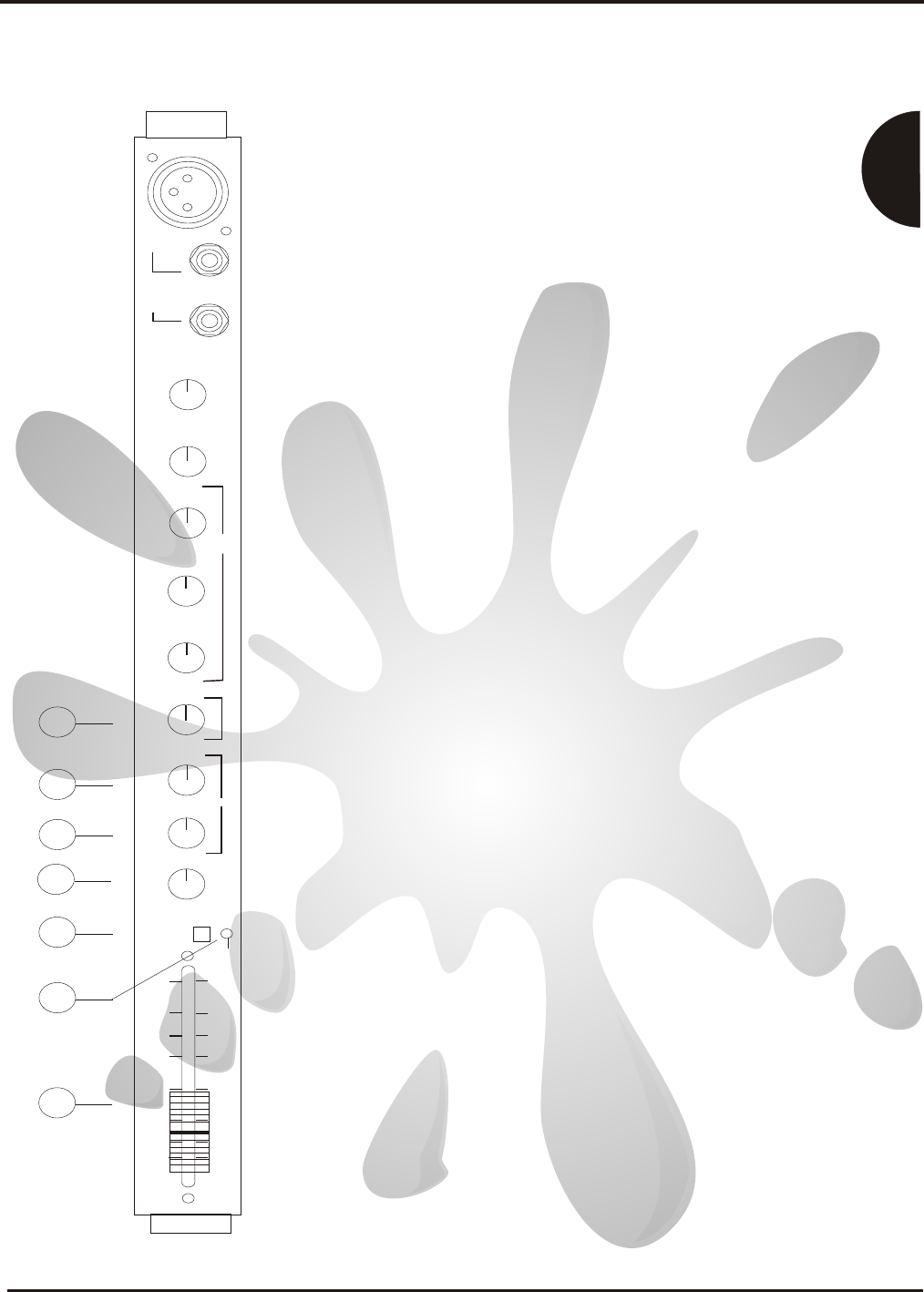

mic/stereo channel
