1. The dimension of each pipe part is G1/2.
2. Connection of one-way safety valve:install the one-way safety valve
attached with the machine at the water inlet of the main machine.(Pay
attention to keep the installed drainage flexible pipes of the safety valve
sloping downward and connected with the atmosphere.)
3. In order to avoid leakage when connecting the pipelines, the rubber seal
gaskets provided with the machine must be added at the end of the threads .

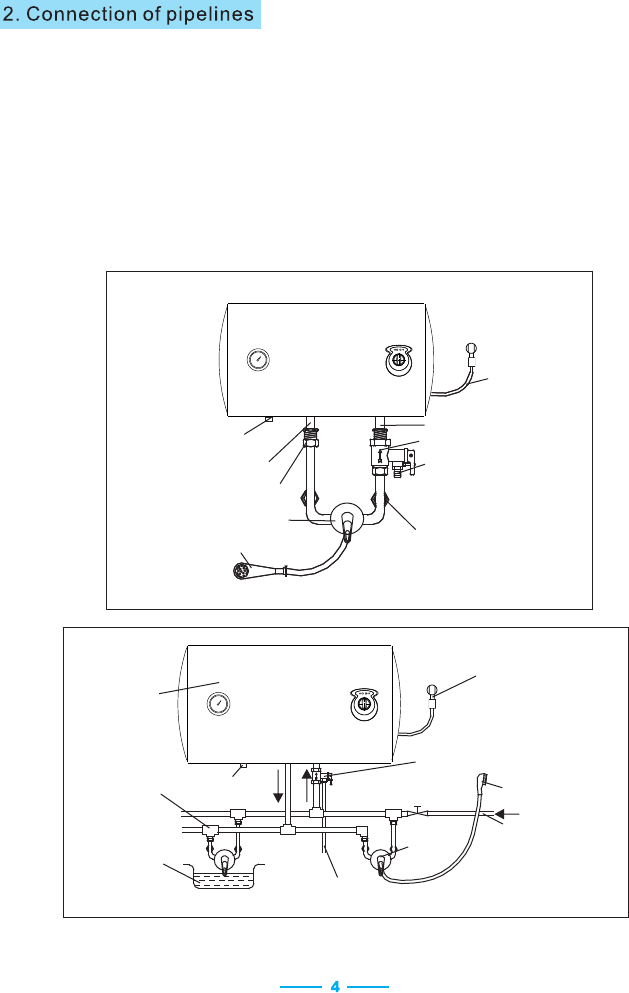

4. If the users want to realize a multi-way supply system, refer to the method
shown in Fig.5 for connection of the pipelines.
4. If the bathroom is too small, the heater can be installed at another place
without sun-scorched and rain-drenched. However, in order to reduce the
pipeline heat losses, the installation position of the heater shall be closed to
the location for use of water as near as possible.
Sewerage exit
Hot water outlet
Screw for hot water outlet
Adjusting handle for mixing valve
Shower
Joint screw for cold water inlet
Pressure release hole
One-way safety valve
Cold water inlet
Power cord
Main machine
Triple joint
Water pool
Sewerage exit
Running water pipe
Shower
One-way safety valve
Water inlet valve
Mixing valve
Pressure release tube
Power cord
Hot water outlet
Cold water inlet
Fig.5
Fig.4
