User’s Manual of WGSW-24040 / WGSW-24040R
SGSW-24040 / SGSW-24040R
21
2.1.2 LED Indications
The front panel LEDs indicates instant status of port links, data activity, system operation, Stack status and system power, helps
monitor and troubleshoot when needed.
WGSW-24040 / WGSW-24040R LED indication

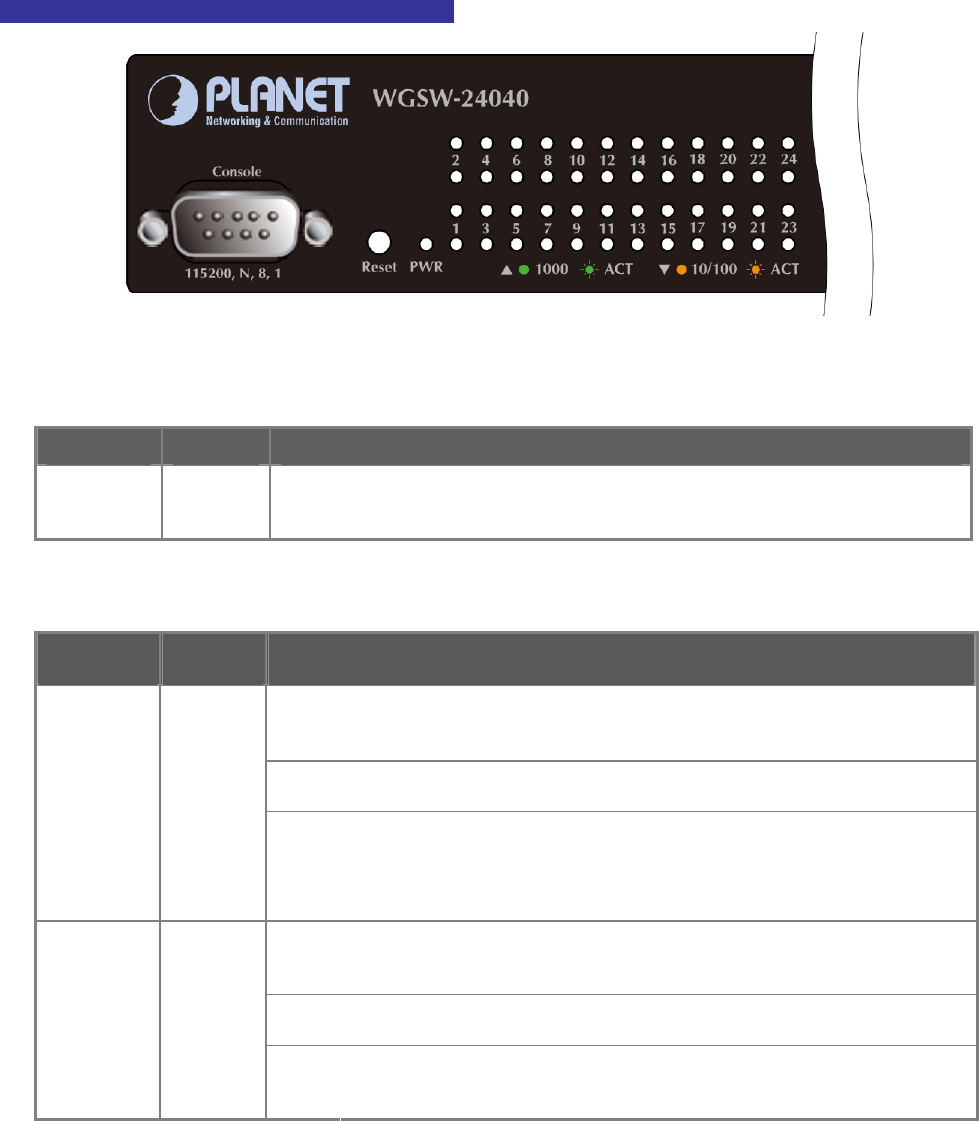

Figure 2-3 WGSW-24040 / WGSW-24040R LED panel
■ System
LED Color Function
PWR Green
Lights to indicate that the Switch is powered on.
Blink to indicate the System is running under booting procedure.
■ 10/100/1000Base-T interfaces
LED Color Function
Lights:
To indicate the link through that port is successfully established with speed
1000Mbps
Blink:
To indicate that the switch is actively sending or receiving data over that port.
1000
LNK/ACT
Green
Off:
If L10/100 NK/ACT LED light-> indicate that the port is operating at 10Mbps or
100Mbps
If LNK/ACT LED Off -> indicate that the port is link down
Lights:
To indicate the link through that port is successfully established with speed
10Mbps or 100Mbps
Blink:
To indicate that the switch is actively sending or receiving data over that port.
10/100
LNK/ACT
Orange
Off:
If 1000 LNK/ACT LED light-> indicate that the port is operating at 1000Mbps
If 1000 LNK/ACT LED Off -> indicate that the port is link down
