Quick Setup Guide
1
Quick Setup
Guide

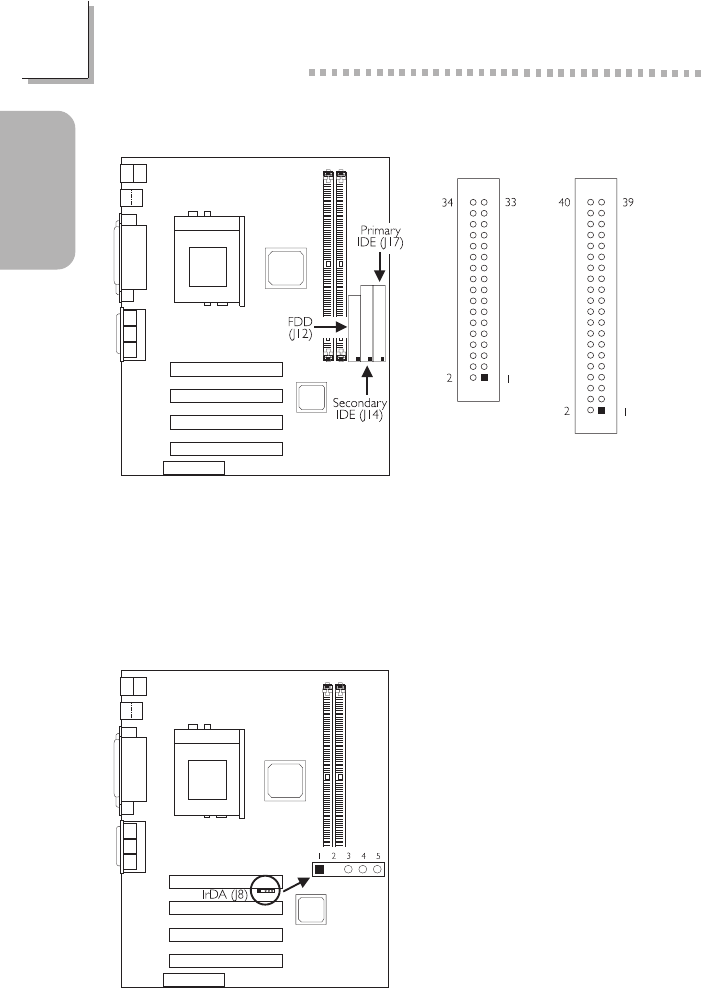

1.3.9 IrDA Connector
1 VCC
2 Key
3 IRRX
4 Ground
5 IRTX
The sequence of the pin functions
on some IrDA cable may be
reversed from the pin function
defined on the system board. Make
sure to connect the cable to the
IrDA connector according to their
pin functions.
1.3.8 Floppy and IDE Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
FDD
IDE
