Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
218 Configure POINT I/O Modules for DeviceNet Networks

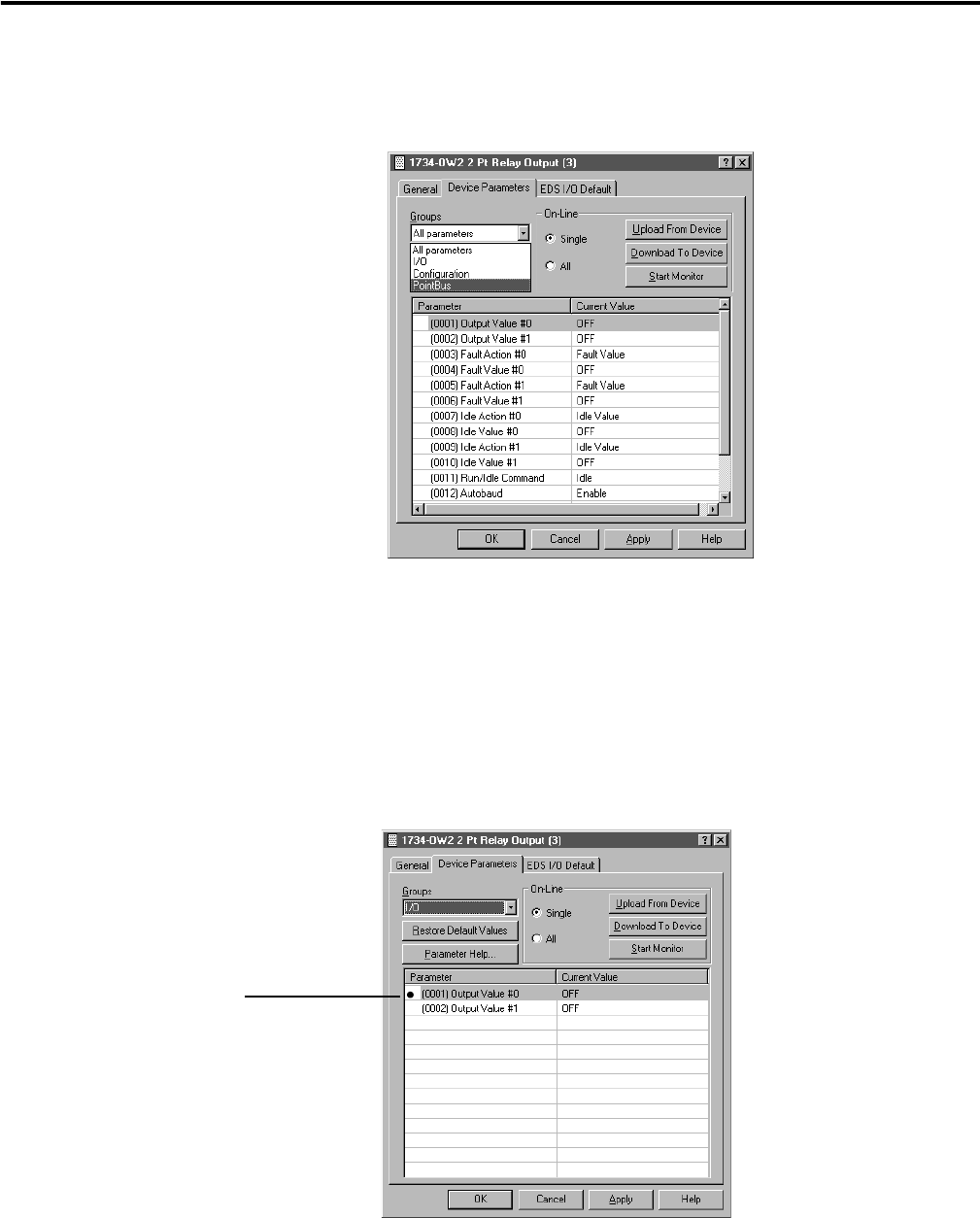

4. From the Device Parameters dialog, at Groups select All parameters to
display each item and POINTBus to display only the run/idle command
and autobaud.
5. From the Device Parameters dialog, to monitor the output, click Start
Monitor, noting the following:
The output value is displayed for each scan.
Click All to scan all values.
The Start Monitor button turns to Stop Monitor during monitoring.
Click Stop Monitor to stop monitoring the selected parameters.
Identify monitoring by a ball appearing momentarily next to the
selected item during each scan.
Monitoring is identified
by the ball appearing
momentarily next to the
selected item during
each scan.
