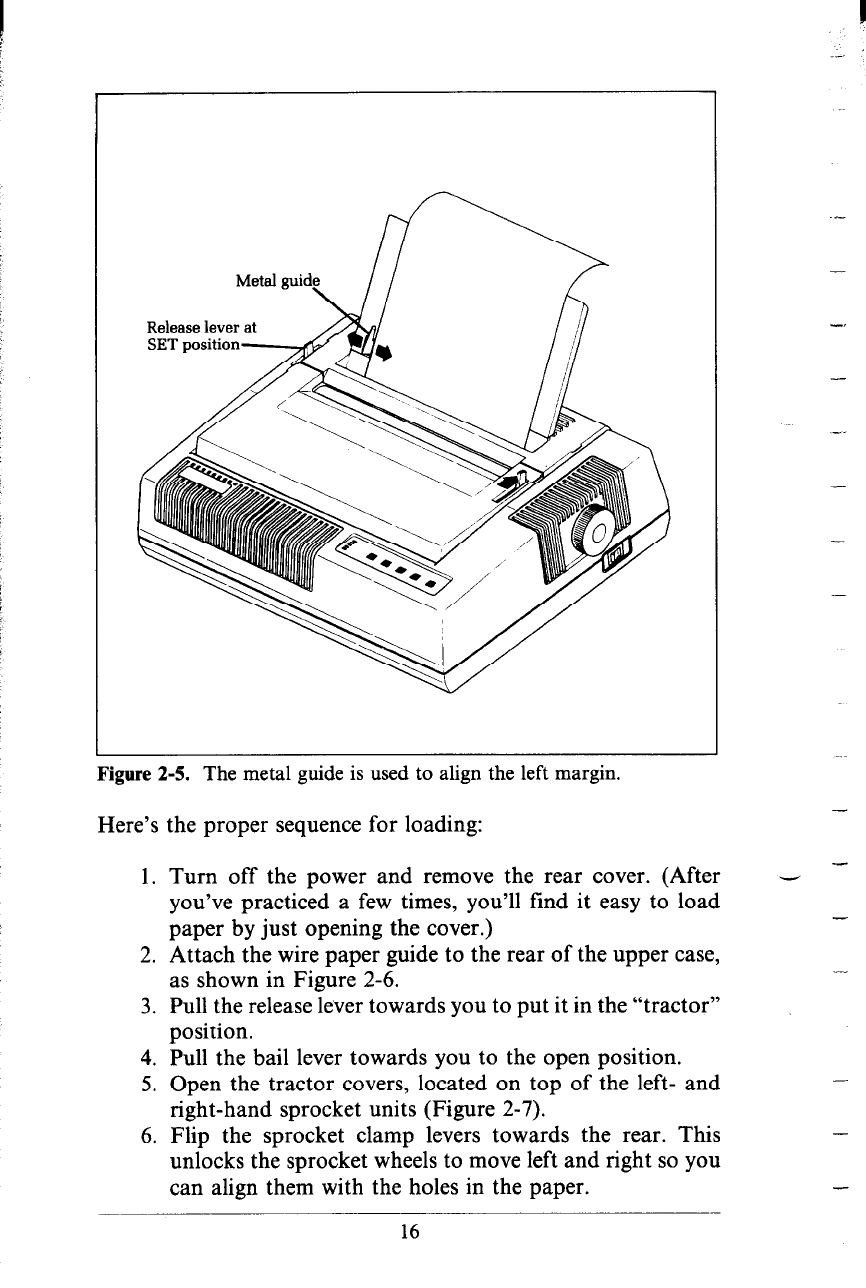

Figure 2-5. The metal guide is used to align the left margin.
--
-
-
Here’s the proper sequence for loading:
1. Turn off the power and remove the rear cover. (After
-,
you’ve practiced a few times, you’ll find it easy to load
paper by just opening the cover.)
-
2. Attach the wire paper guide to the rear of the upper case,
as shown in Figure 2-6.
-
3. Pull the release lever towards you to put it in the “tractor”
position.
-_
4. Pull the bail lever towards you to the open position.
5. Open the tractor covers, located on top of the left- and
-
right-hand sprocket units (Figure 2-7).
6. Flip the sprocket clamp levers towards the rear. This
-
unlocks the sprocket wheels to move left and right so you
can align them with the holes in the paper.
16
