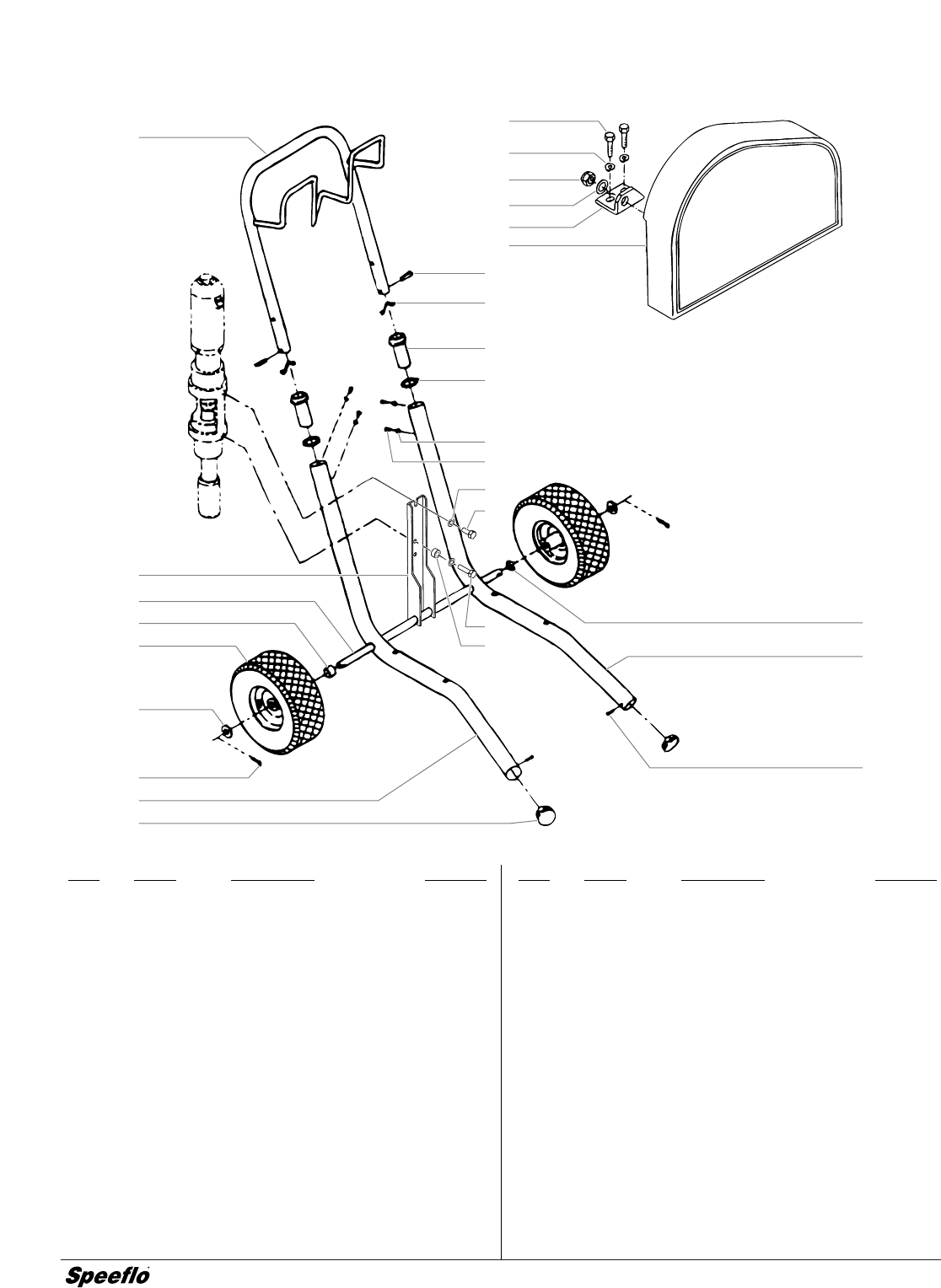

Cart Assembly
Item
Part # Description Quantity
1 590-502 Handle ..............................................1
2 449-051 Motor/pump bracket..........................1
3 335-562 Axle...................................................1
4 335-563 Spacer, long......................................1
5 335-561 Wheel................................................2
6 870-009 Washer..............................................2
7 140-002 Cotter key .........................................2
8 335-558 Frame, right ......................................1
9 335-018 Glide .................................................2
10 858-636 Screw................................................2
11 858-002 Lock washer......................................2
12 862-411 Nut ....................................................1
13 862-001 Flat washer........................................1
14 449-187 Clip ....................................................1
Item
Part # Description Quantity
15 448-233 Belt guard..........................................1
16 590-508 Roll pin..............................................2
17 590-507 Snap button ......................................2
18 590-504 Sleeve ...............................................2
19 590-506 Washer..............................................2
20 856-002 Washer..............................................4
21 856-921 Screw ................................................4
22 862-002 Lock washer......................................2
23 862-428 Screw................................................1
24 862-444 Screw ................................................1
25 449-052 Spacer...............................................1
26 335-552 Spacer...............................................1
27 335-557 Frame, left.........................................1
28 854-020 Screw ................................................2
10
11
13
14
15
12
1
3
4
5
6
7
8
9
2
28
27
26
16
17
18
19
20
21
22
23
24
25
