2.6.2.8 AFSSI 8580
Pattern:
1) To fill the whole disk with fixed character pattern of 0x55.
2) To fill the whole disk with fixed character pattern of 0xAA.
3) To fill the whole disk with random data.

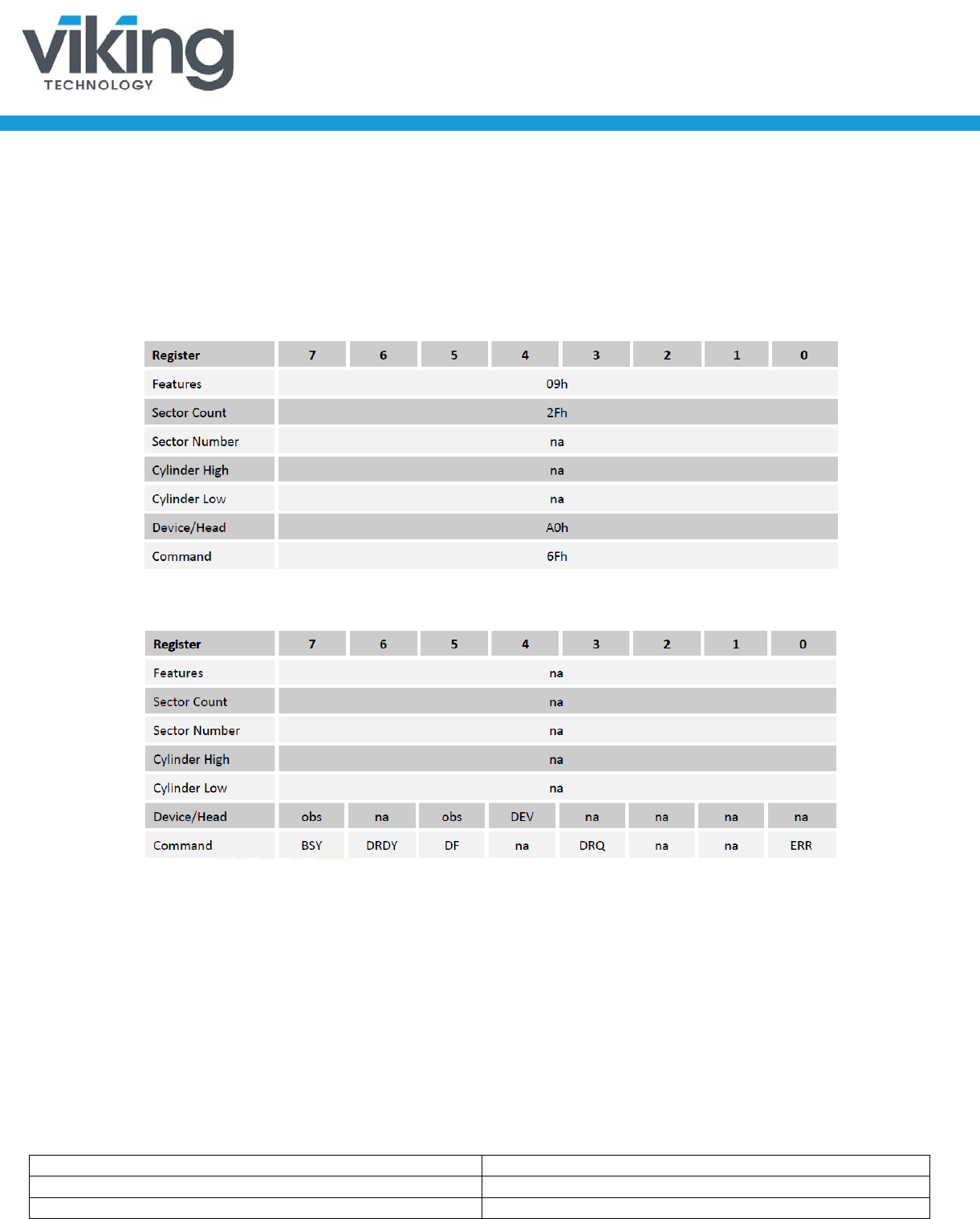

Input Info of Executing AFSSI 8580 Command
Normal Output Info of Executing AFSSI 8580 Command
Device/Head Register:
DEV shall indicate the selected device.
Status Register:
BSY shall be cleared to zero indicating command completion.
DRDY shall be set to one.
DF (Device Fault) shall be cleared to zero.
DRQ shall be cleared to zero.
ERR shall be cleared to zero.
