INSTALLATION
5
B.2. Single Unit Installation AP40BC250-12 And BCCP-1
B.2.1. Install Coil Assembly Frame

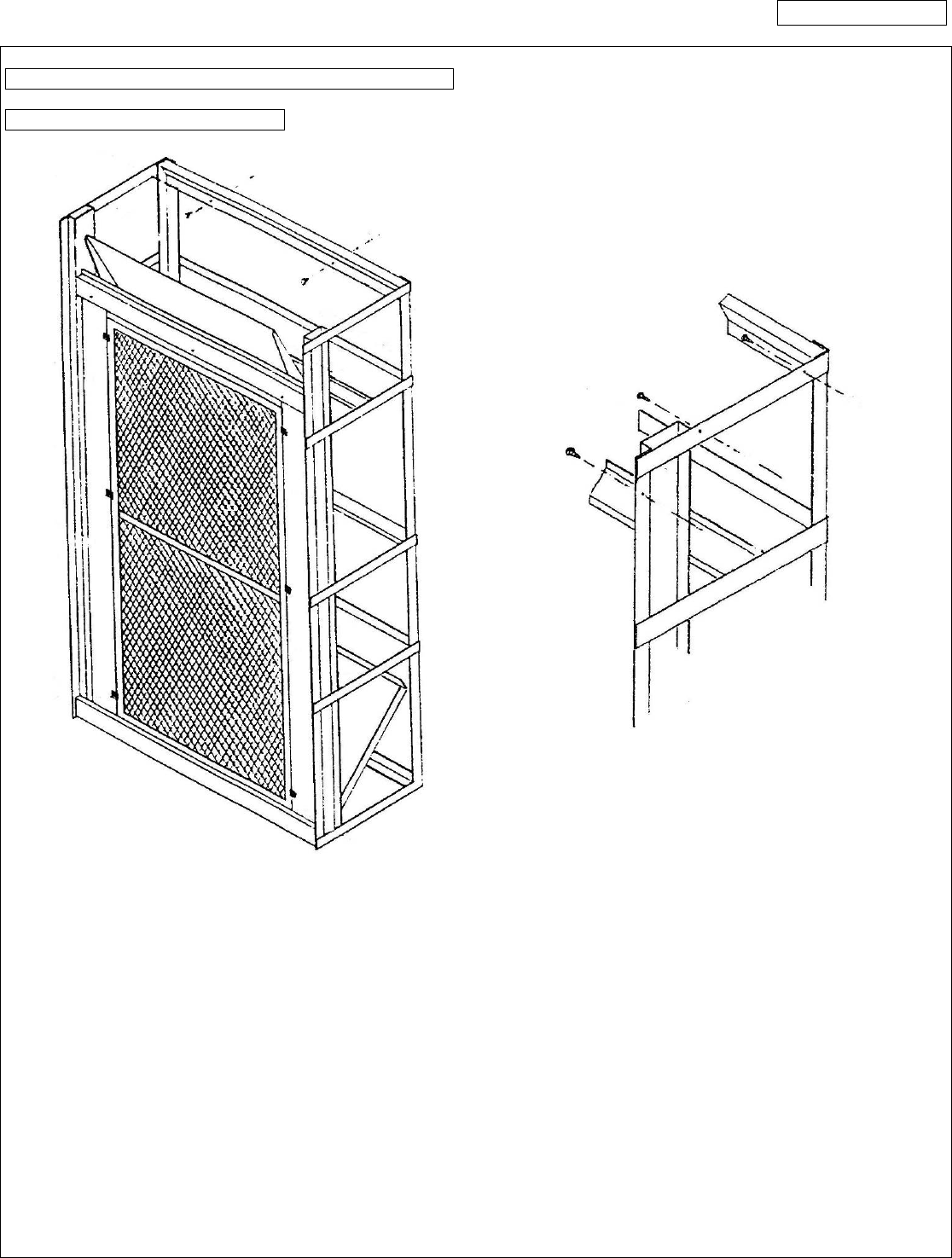

DRAWING # 2
1. Insert the coil assembly frame into the door latch side of
the box with the filter facing the interior of the box (see
DRAWING # 2). Push the assembly tight to the side wall
leaving ¼” space at the front and rear panels.
Note the three holes on the stainless steel angle frame (at
the top of the horizontal cross brace on the vertical surface
at the back of the frame). Drill 1/8” pilot holes.
DRAWING # 3
2. Secure the frame to the back of the box with self-tapping 8/32” stainless steel screws (see DRAWING # 3).
3. Insert the drain pan (see PHOTO #1, page 4) with the drain pipe through the drain hole previously drilled.
