25
A
B
Fig. 5.7
Fig. 5.8

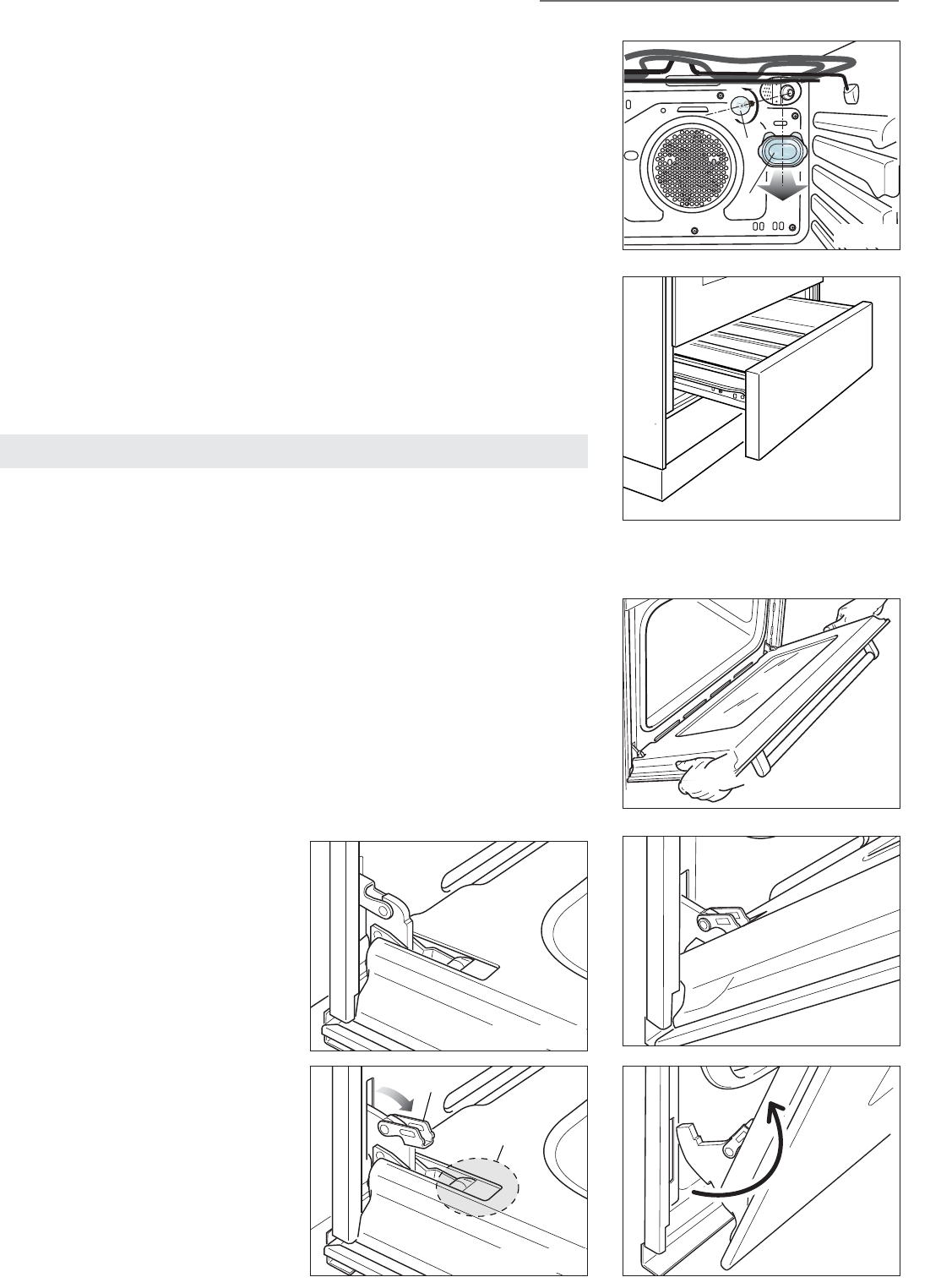

REPLACING THE OVEN LIGHT (fig. 5.7)
Before any maintenance is started involving electrical parts of the appliance, it must be
disconnected from the power supply.
– Let the oven cavity and the heating elements cool down;
– Switch off the electrical supply;
– Remove the protective cover (fig. 5.7);
– Unscrew and replace the bulb with a new one suitable for high temperatures (300°C)
having the following specifications: 120V, 60 Hz, 25W, E14
– Refit the protective cover
NOTE: Oven bulb replacement is not covered by your guarantee
Do not store flammable material in the oven or in the drawer.
DRAWER
The drawer (fig. 5.8) comes out like a normal drawer. A safety catch stops it from sliding
out.
To remove the drawer open and lift it.
REMOVING THE OVEN DOOR
The oven door can easily be removed as follows:
– Open the door to the full extent (fig. 5.9a).
– Open the lever “A” completely on the left and right hinges (fig. 5.9b).
– Hold the door as shown in fig. 5.9.
– Gently close the door (fig. 5.9) until left and right hinge levers “A” are hooked to part
“B” of the door (fig. 5.9b)
– Withdraw the hinge hooks from their location following arrow “C” (fig. 5.9d).
– Rest the door on a soft surface.
– To replace the door, repeat the above steps in reverse order.
Fig. 5.9
Fig. 5.9a
B
A
Fig. 5.9b
C
Fig. 5.9d
Fig. 5.9c
