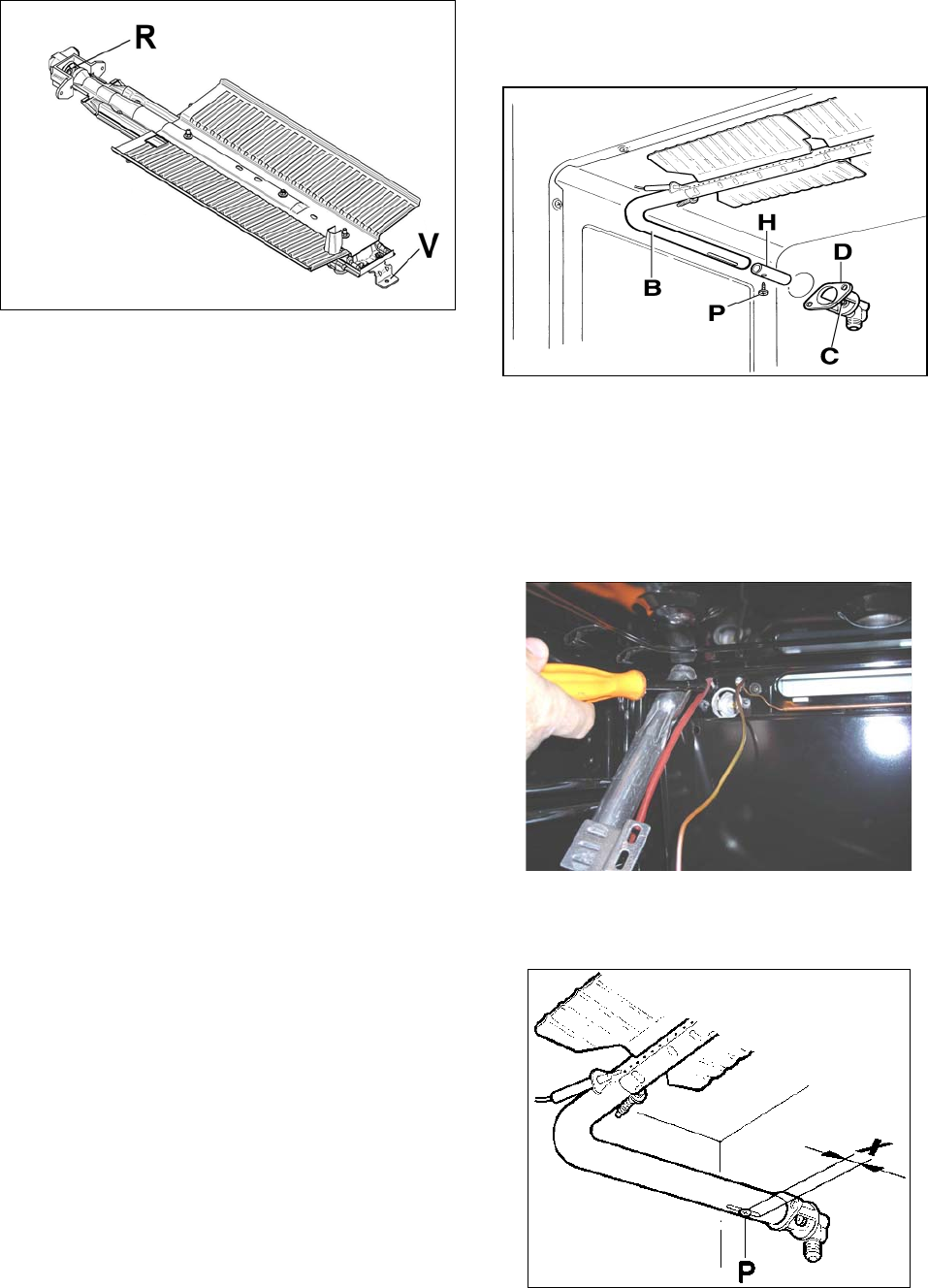

Loosenand thescrew Vandpull outtheburner

fromthesupportbeingcarefulnottodamagethe

ignitionplugandthethermocouple 

UnscrewthenozzleRusinga 7mm.spannerand

replaceitwiththenozzleforthenewtypeofgas

accordingtowhatisindicateinthetablebelow

ATTENTION:payextraattentiontoavoiddamage

totheigniterandthermocouple.

Re‐installallthepartsinreverssequence











STEP4:BROILERBURNER

Loosen the screw and pull out the burner from

the support being careful not to damage the

ignitionplugandthethermocouple.





Using a 7 mm [name of the tool] unscrew the

nozzle. Replace the nozzle using the conversion

set supplied with the range or by a Bertazzoni

authorized parts warehouse. Each nozzle has a

number indicating its flow diameter printed on

the body. Consult the table on page 20 for

matching

nozzlestoburners.



AdjustthegapXbysettingittofullyopen

position.
