19



STEP6:MINIMUMFLAMEADJUSTMENT



WARNING!

Theseadjustmentsshouldbemadeonlyforuse

oftheappliancewithnaturalgas.Forusewith

liquidpropanegas,thechokescrewmustbe

fullyturnedinaclockwisedirection.



SURFACEBURNERS

1. Light oneburner ata timeand setthe

knob

totheMINIMUMposition(smallflame).

2. Removetheknob.

3. The range is equipped with a safety valve.

Usingasmall‐sizeslotted screwdriver,locate

the choke valve on the valve body and turn

thechokescrewtotherightorleft untilthe

burnerflameisadjustedto

desiredminimum.

4. Make sure that the flame does not go out

when switching quickly from the MAXIMUM

totheMINIMUMposition.







OVENBURNER

1. Settheoventemperaturecontrolknobtothe

MAXIMUMsetting.

2. Closetheovendoorandoperatetheovenfor

atleast10minutes.

3. SettheknobtotheMINIMUMsetting.

4. Removetheknob.

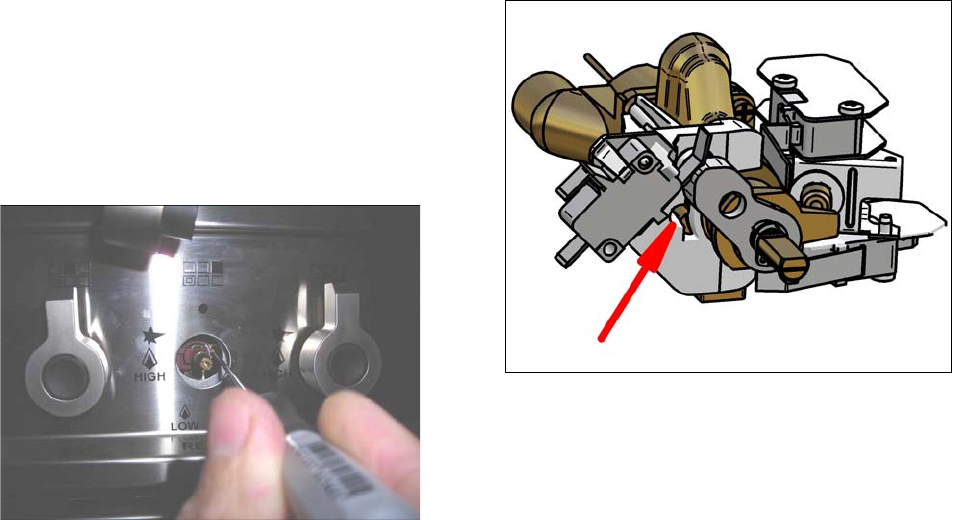

5. With a slotted screwdriver turn the choking

screw(by‐pass screwat the left side ofthe

thermostat bar) and, while observing the

flame atthe same time through thebottom

oven porthole, evaluate the consistency of

the flame so  it remains on when switching

quickly from MINIMUM to MAXIMUM

setting.









Broiler burner: the broiler burner always

operates at maximum, therefore no minimum

adjustmentisrequired.


