Operation
9
Electro/Mechanical Thermostat and Timer
TIMER
LIGHT O FF
OVEN AT
TEMPERATURE
OVEN
TEMPERATURE
CF
1
2
3
4

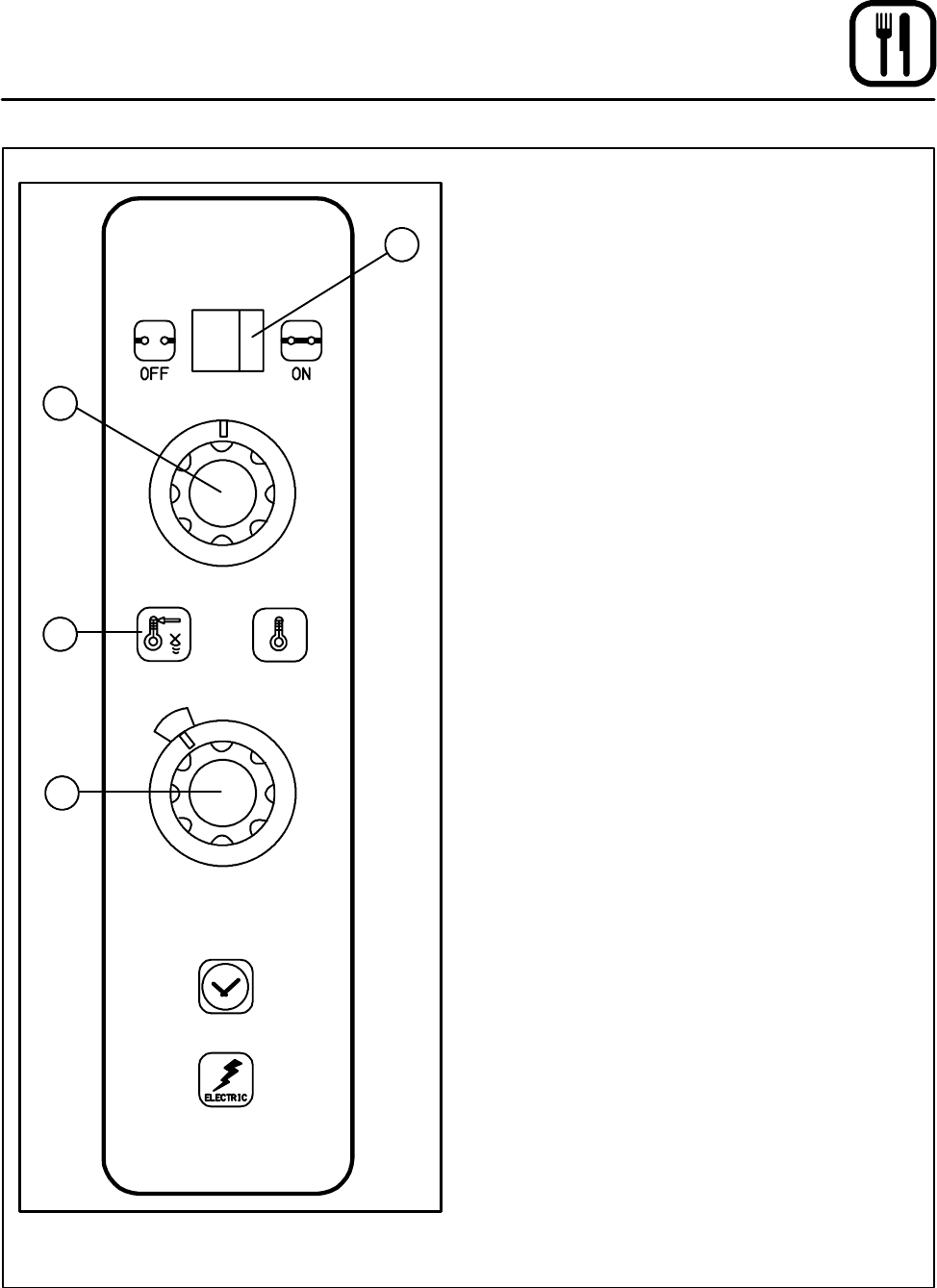

Figure 7
COMPONENT DESCRIPTION
1. POWER SWITCH --- Controls the power to the
oven. When switched to OVEN ON, the oven
is operating in the normal heating mode.
O VEN OFF, turns the oven off.
2. OVEN THERMOSTAT --- C o n t rol s t h e o v e n
temperature at desired settings.
3. LIGHT OFF OVEN INDICATOR LIGHT ---
When lighted indicates heaters are in opera-
tion. When the light goes out, the oven has
reached set operating temperature.
4. TIMER --- Activates an electric buzzer which,
upon expiration of time, will sound to remind
theoperatortoremovetheproduct.
OPERATION
1. Depress the right h and side of the POWER
SWITCH (1) to turn the oven ON. The elements
will come on, this is indicated by the INDICA-
TOR LIGHT (3).
2. Set the THERMOSTAT (2) to the desired bak-
ing temperature.
3. The INDICATOR LIGHT (3) will go out when
the oven has reached the set operating tem-
perature.
4. TheTIMER(4)issettomeasureacooking
cycle by turning the knob clockwise to the de-
sired time. When selecting a cook time less
than ten minutes, turn the knob past the ten
minute interval and reverse direction to the de-
sired setting. At the end of the elapsed time
the buzzer will sound. The buzzer is turned off
by rotating the TIMER (4) to the OFF position.
NOTE: The TIMER will not control any temper-
ature functions.
