Installation
10
Electrical Connection
Before making any electrical connections to this
unit, check that the power supply is adequate for
the voltage, amperage, and phase requirements
stated on the rating plate.
A wiring diagram accompanies this manual and is
also attached to the inside of the control box.
U.S. and Canadian installations
Electri call y - fi red mo dels are equi pped fo r operati on
on 208 or 240V AC, 1Φ, 60Hz, 2 wire grounded cir-
cuits. The oven is equipped with a 50 amp cord set.
General export installations
The e xport models a re available in either single or
three phase. The single phase oven is equipped
for operation on 220, 230 or 240 VAC, 50HZ., 2
wire grounded circuits. The three phase units are
equipped for operation on 400 VAC, 50HZ, 4 wire
grounded circuits. W iring from the power source
to any of these units must be a minimum of #10
AWG (5.26 mm
2
)copperstrandedwireorlarger.
WARNING!!
Incorrect single phase wiring w ill result i n
extensive d amage to e lectrical compo-
nents and possible fire in the control box.
THE BLODGETT OVEN COMPANY CANNOT AS-
SUME RESPONSIBILITY FOR LOSS OR DAMAGE
SUFFERED AS A RESULT OF IMPROPER INSTAL-
LA TION.

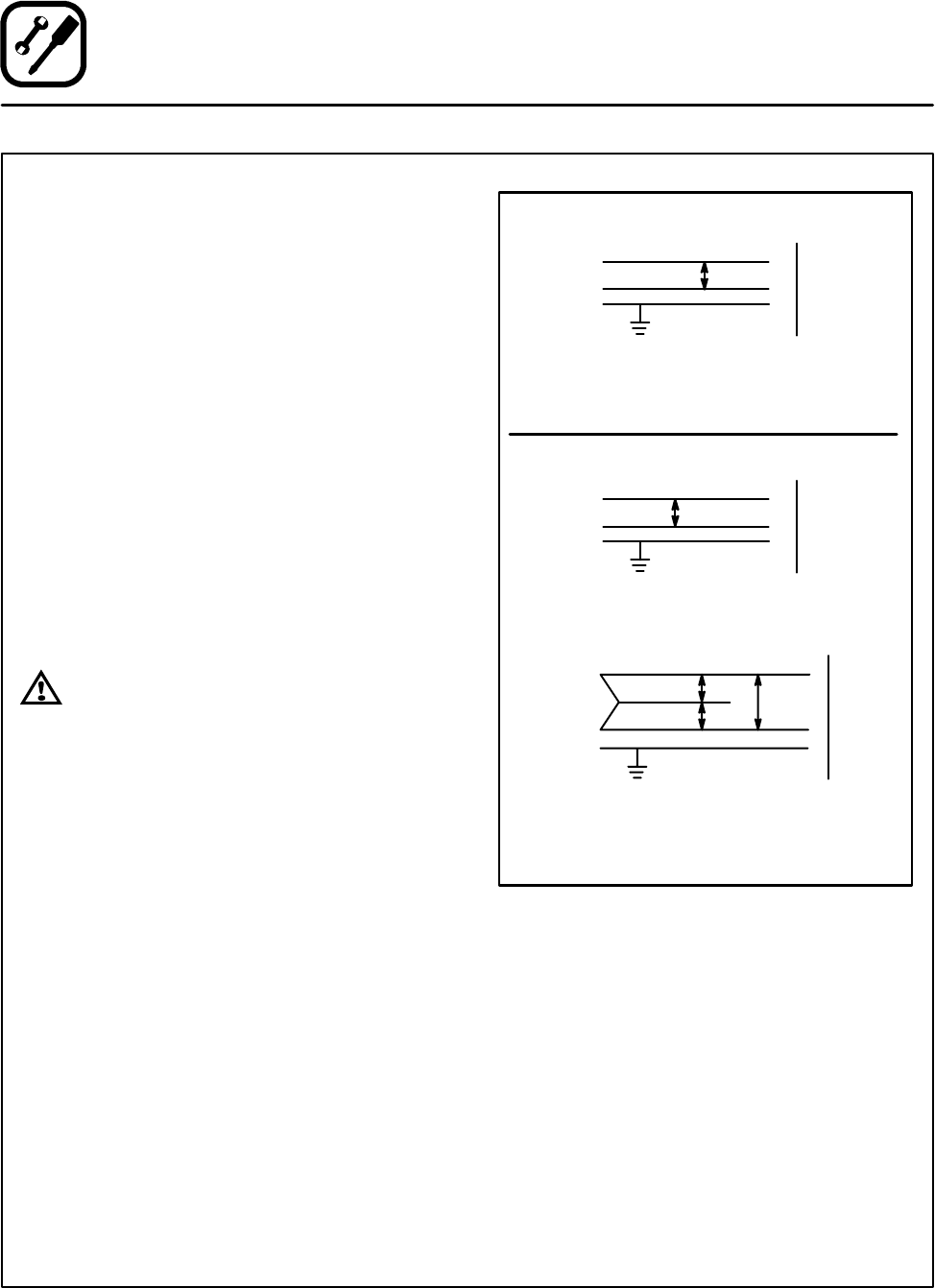

U.S. and Canadian Installations
L1
L2
L3
400
OvenSupply
General Export Installations
L1
L2
208/240
OvenSupply
L1
L2
220/230/240
OvenSupply
Single Phase Ovens
Three Phase Ovens
Figure 9
