13
Installation
Correct mounting of the lower ventilation grille
facilitates access to the connections and
functional parts during maintenance.

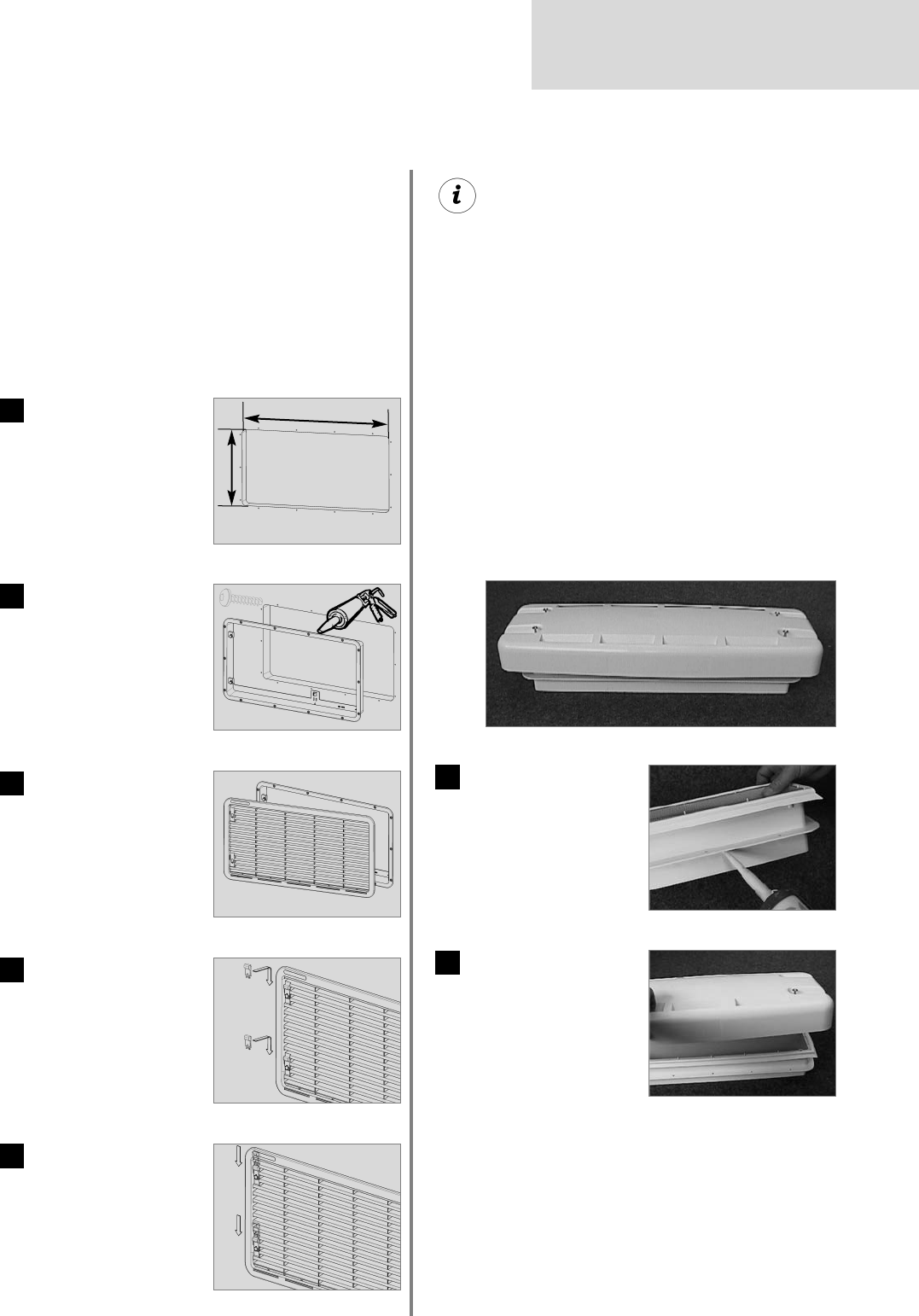

4.3 Installing the ventilation
system
Fig. 13
Cut two rectangles in the
outer wall of the vehicle.
1
Fig. 14
Seal the mounting frame
making it waterproof
(
does not apply for
mounting frames with
integral seal)
and screw
into position.
2
Fig. 19
Seal the installation bays
and screw them to the
vehicle roof.
1
Fig. 20
Place the hood in posti-
on and screw it to the
installation bays.
2
Fig. 15
Insert ventilation grille.
3
Fig. 16
Insert slider.
4
Fig. 17
Lock ventilation grille.
5
4.3.1 Installing LS300
To install the ventilation grilles, cut two rectan-
gles width b = b490mm, height a 249mm, in
the outer wall of the vehicle (for position of the
cuts, see Fig. 11,12).).
4.3.2 Installing roof exhaust R500
Measurements of roof exhaust R500
Length Width Height
595 mm 205 mm 150 mm
Roof cut out: 87mm X 507 mm
b
a
14 x
Fig. 18
