Installation

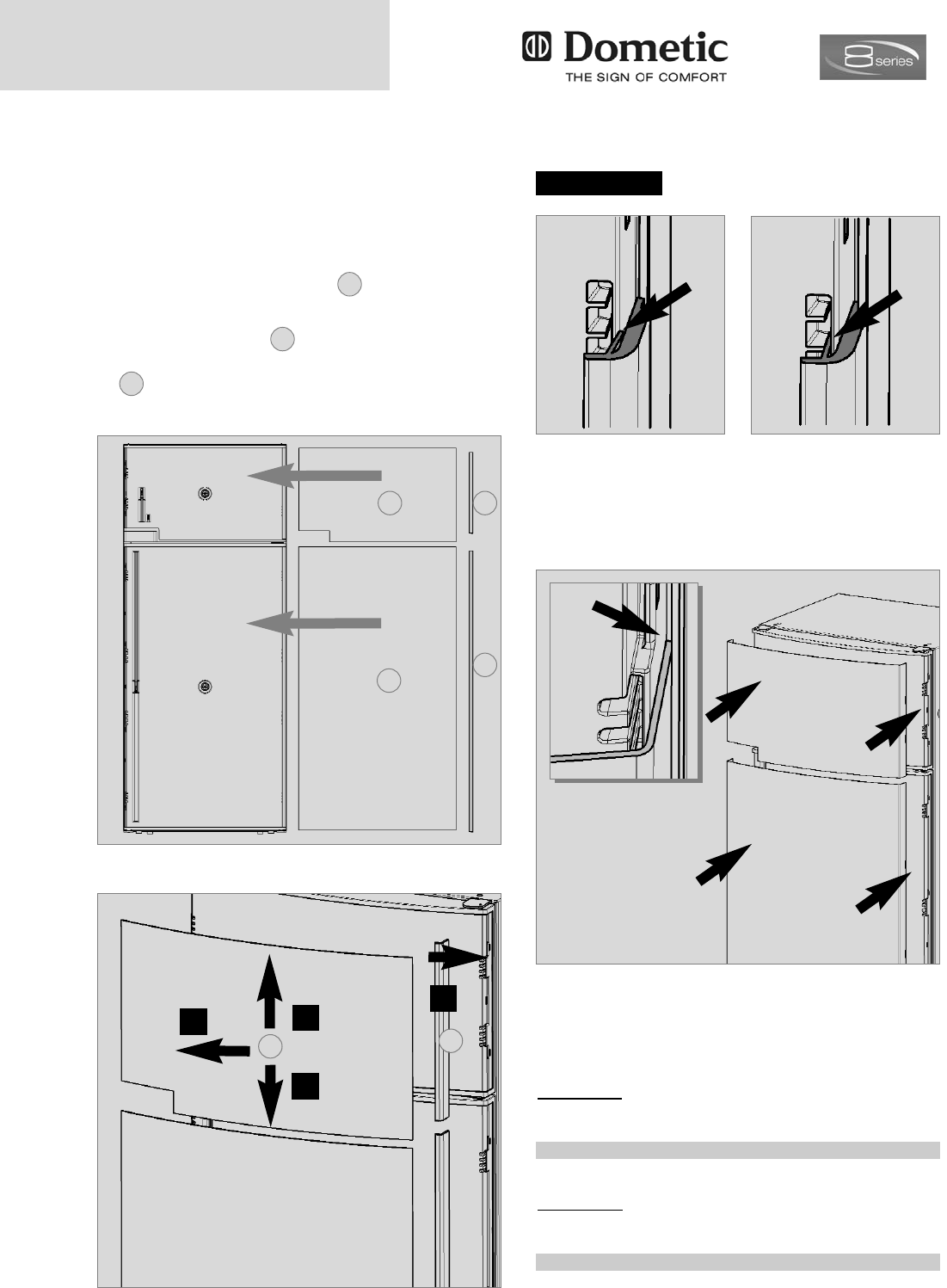

4.7 Insert the decor panel
Fig. 31
Fig. 32
Remove the lateral ledge (1) from the door
(ledge is attached, not screwed).
Shift decor panel (2) away from the door and
insert the new decor panel. Re−attach ledge
(1) .
Fig. 29
Decor panel with frame
Frameless decor panel
Fig. 30
Fig. 33
1
2
Decor panel dimensions :
300 +/- 1 mm 507,5 +/- 1 mm max. 1.7 mm
Upper door
Height Width Thickness
907,4 +/- 1 mm 507,5 +/- 1 mm max. 1.7 mm
Lower door
Height Width Thickness
2
2
2
1
1
1
1
CAUTION!
wrong
right
3
4
2
1
