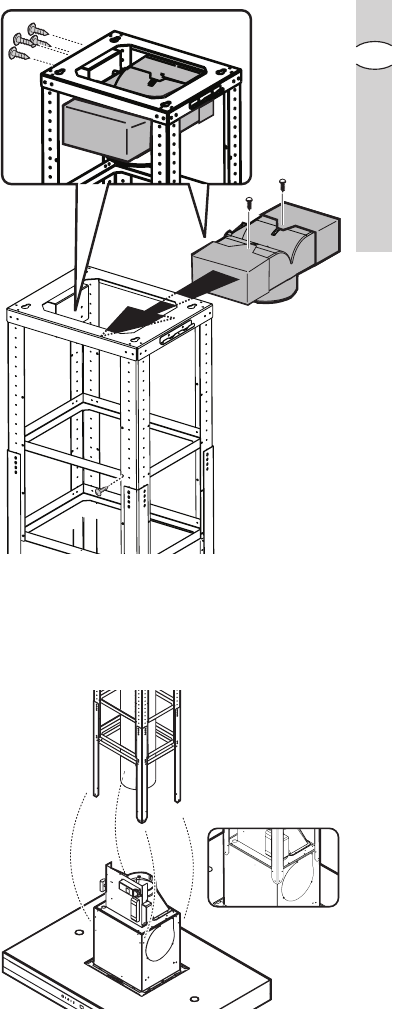

assemble the three parts of the
deflector (central part + 2 extensions)
using 2 screws so that once
assembled, the deflector is the same
width as the structural support.
Fasten the deflector inside the
structural support using 4 screws.
Fit an exhaust tube to the deflector
connection ring. The tube must be
300 mm shorter in length than the
structural support (please refer to
measurement
EE
EE
E calculated
previously).
Installing the structural support toInstalling the structural support to
Installing the structural support toInstalling the structural support to
Installing the structural support to
the cooker hoodthe cooker hood
the cooker hoodthe cooker hood
the cooker hood
• Fix the cooker hood to the structural
support using 16 screws (4 per
bracket).
F
