Electrolux ESL 614 Dishwasher User Manual

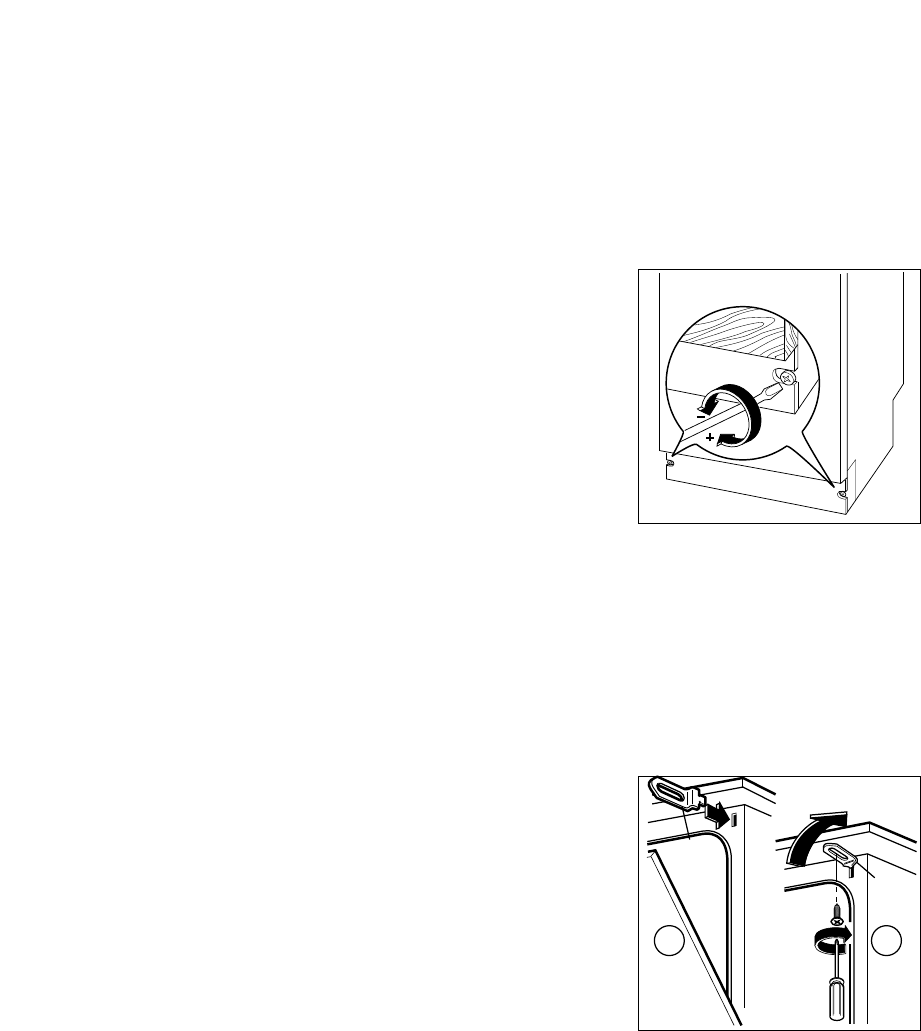

Adjusting the door balance
The door of the dishwasher is balanced when it is open
in any position.
Fitting the decor panel may sometimes affect this
balance. In this case it will be necessary to adjust the
balance as follows:
Half-open the door and regulate the screws located on
the kick plate.
By screwing or unscrewing these screws, the tension of
the door balancing springs is increased or decreased
respectively.
The weight of the panel should be within the limits
given in "The furniture door" otherwise balancing the
door will not be possible.
Securing under a counter
Open the door; vertically insert the two mounting
brackets (A) on the front part of the dishwasher and turn
them 90° (see figure). Secure the brackets to the counter
by means of two 3.5 x 16 screws provided.
Important: the dishwasher must be secured
against tilting. Therefore, make sure that
the counter it is fitted under, is suitably
secured to a fixed structure (adjacent
kitchen cabinets, wall).
28
PFI08UK
II08
1
2
A
90°
II18
A
