4. CONNECTING TO GAS
This appliance is designed to be installed with an
appliance flexible connection only. (The flexible supply
pipe must be suitable for use at 70° above ambient).
Supply piping should not be less that R³/
8
. Connection
is made to the Rc ½ (½" B.S.P.) female threaded entry
pipe located just below the hotplate level on the rear left
hand side of the appliance. NOTE: ONLY LIQUID
SEALANTS TO BE USED WHEN INLET GAS PIPE IS
FITTED TO SHUT OFF VALVE I.E.: DO NOT USE
P.T.F.E. SEALANT TAPE. Check for gas soundness
after connecting to the gas supply.

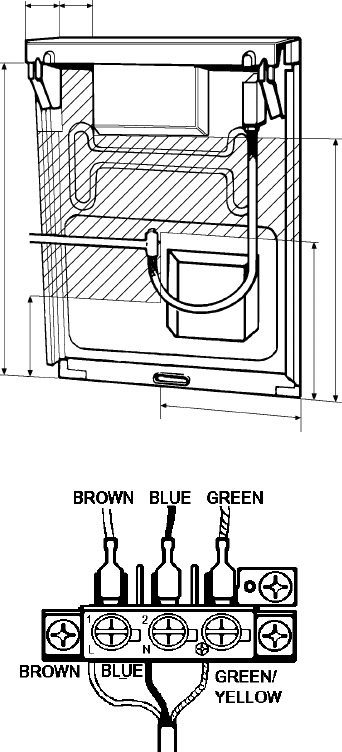

The gas bayonet connector must be fitted in the shaded
area indicated in Fig.3. Take into account that it must
be possible to pull the appliance forward sufficiently.
The hose must not get caught on the stability bracket.
IMPORTANT: FLEXIBLE TUBING USED MUST
COMPLY WITH BS. 669 CURRENT EDITION.
L.P.G. FLEXIBLE CONNECTIONS MUST BE OF A
TYPE SUITABLE FOR L.P.G. AND CAPABLE OF
OPERATION UP TO 50 mbar AND TO CARRY A RED
STRIPE, BAND OR LABEL.
5. CONNECTION TO THE ELECTRICITY SUPPLY
WARNING: THIS APPLIANCE MUST BE EARTHED.
DO NOT EARTH THIS APPLIANCE TO THE GAS
SUPPLY PIPING.
This appliance must be connected to a 230V A.C. 50Hz
supply. It is supplied with 2 metres of 15 amp 3 core
cable incorporating a moulded 13 amp plug , fitted with
a 13 amp fuse, which can be plugged directly into the
nearest suitable socket. If this is not long enough, the
supply cable can be either:-
(i) Replaced totally by a longer cable at least 1.5mm²
nominal cross sectional area (30/0.25mm).
(ii) Extended by using a B.E.A.B. approved 3-way
sealed flex connector with integral flex clamps.
IF THE MOULDED PLUG IS CUT FROM THE
CABLE FOR ANY REASON, IT MUST BE
DESTROYED OR DISPOSED OF SAFELY, AS
THE PROTRUDING WIRES WILL BE AN
ELECTRIC SHOCK HAZARD.
If any other type of plug is used it should incorporate a 13 amp fuse in either the plug or adapter or at the
distribution board.
If the cable has to be threaded through small apertures in cabinets etc., it may be disconnected from the
appliance, then re-connected to as shown in Fig.4.
DO NOT EXTEND THE CABLE USING PLASTIC OR CERAMIC CONNECTION TERMINAL BLOCKS
AND/OR INSULATION TAPE.
ALL EXTERNAL WIRING BETWEEN THE APPLIANCE AND THE ELECTRICAL SUPPLY SHALL
COMPLY WITH I.E.E. WIRING REGULATIONS.
7
50
100
450
70
0
850
400
All dimensions in mm
Fig.4
Fig.3
250
