10. CHECKING THE MAIN OVEN
CONTROLS

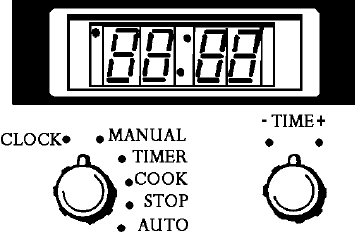

TO SET THE TIME OF DAY (see Fig.5)
1. Turn on the electricity supply and ensure that
the thermostat is in the off position.
1a. Before setting timer read important note below.
2. Rotate the left hand clock knob to manual and
back to the clock position.
3. Set the time of day by rotating the right hand
knob. Note that it is a 24 hour clock.
4. Rotate the left hand clock knob back to the
manual position.
NOTE: When setting the time of day with the selector
knob in the clock position only, this will activate the timer for seven seconds after selection. This means
that when setting the time of day in this function the time can only be set by using the right hand knob
within a seven second period.
After seven seconds have elapsed from when the correct time of day has been set, the timer ceases
to be active and subsequent operation of the right hand knob will not change the time setting.
When the right hand knob is turned anti-clockwise after the seven second delay period, a choice of
three audible signals are available. To select the choice of signal required rotate knob anti-clockwise and
release. Repeat procedure to choose desired signal.
11. CHECKING THE MAIN OVEN
1. Set the clock as described above, the oven is now ready for manual operation.
2. Turn the main oven thermostat to maximum . The oven fan and lamp will operate and after a short
period the heat from the oven element may be felt when the oven door is opened.
3. Turn off the thermostat and check that the oven fan stops and the oven lamp goes out.
12. AUTOMATIC OPERATION
Having set the clock up as described above, turn the left hand knob to the 'cook' position and set the right
hand knob to show a cooking time of two minutes (0.02).
Turn the left hand knob to the 'stop' position; the time shown on the display is now the time of day with two
minutes added on. Rotate the right hand knob to add two minutes to this time to give a two minute delay.
Turn the left hand knob to the 'auto' position to complete the programming sequence, the clock now shows
the time of day again with 'auto' glowing continuously.
Turn the oven thermostat on and two minutes after setting, the oven fan and lamp should operate.
Two minutes after the oven starting , the timer should cut off power to the oven and the audible signal
should sound. The signal is continuous and it may be switched off at any time by rotating the left hand
knob.
Return timer to manual by rotating the left hand knob to the 'manual' position.
13. CHECKING THE MAIN OVEN LIGHT
Turn the main oven thermostat knob full on and check that the main oven light is working. Turn off the
thermostat.
GENERAL NOTE
Instruct the user on how to use the appliance and its ignition system. Refer the user to the wording in the
inside cover of the Users Instructions which gives advice on the safe operation of the appliance.
9
Fig.5
