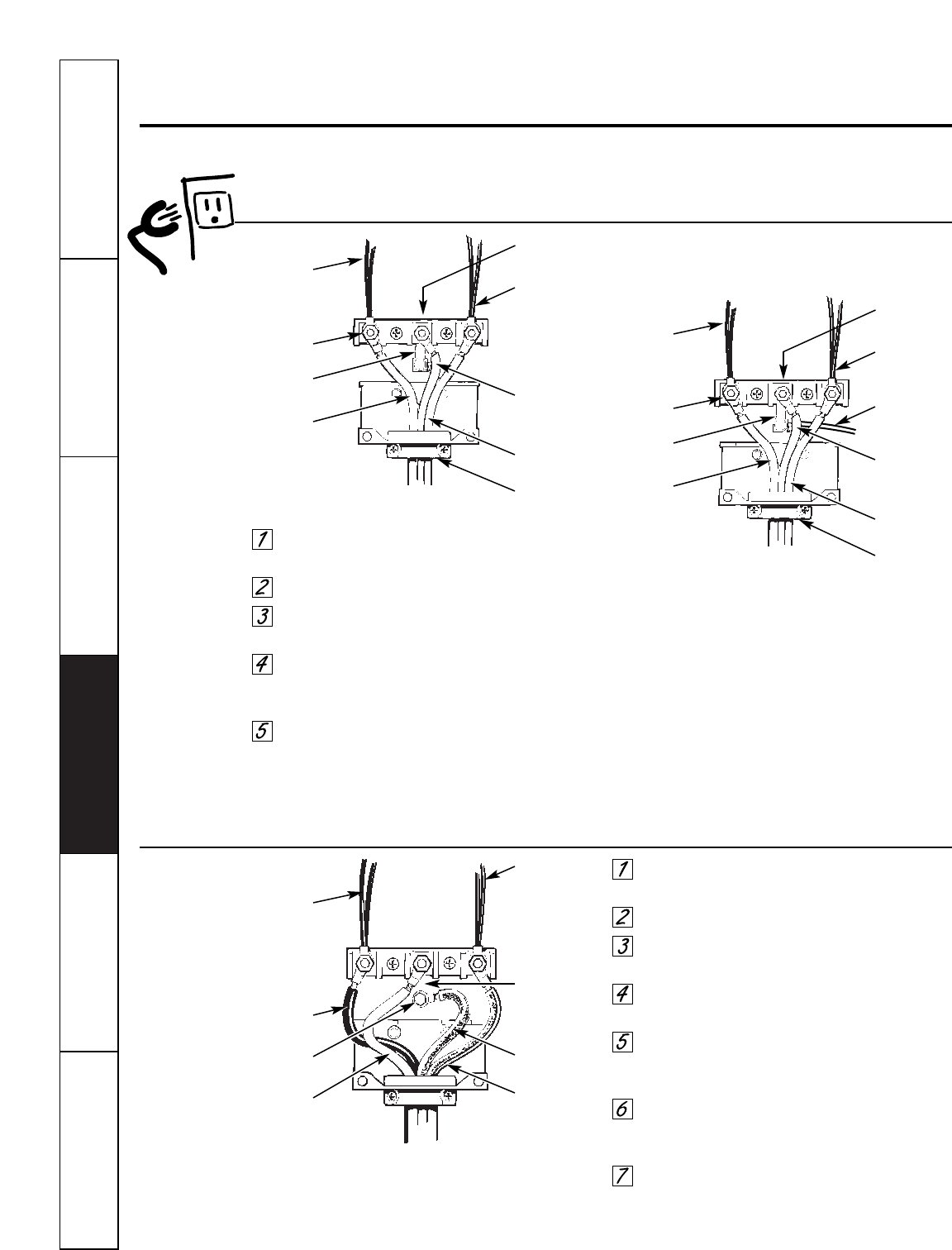

Installation of the range.
Read these instructions completely and carefully.
Three-Wire Cord Connection
Remove the top nuts on the junction
block studs.
Tighten the back nuts.
Install the three wire cord and the strain
relief in the hole in the strain relief bracket.
Connect the red and black leads to the
outer terminals and the white lead to the
center terminal.
Push the cord upward (to relieve strain),
while tightening the strain relief clamp.
If local codes require an ungrounded neutral:
Follow steps 1 through 5.
Then loosen the screw from the ground strap and
fasten a #10 copper wire to the range. Secure the
other end of the wire to a grounded cold water
pipe or use another approved grounding
method.
Four-Wire Cord Connection
Remove the top nuts on the junction
block studs.
Tighten the back nuts.
Remove the ground screw; then remove
the ground strap.
Install the four wire cord and strain relief in
the hole in the strain relief bracket.
Connect the red and black leads to the
outside terminals and the white lead to the
center terminal.
Attach the green lead below the junction
block with the ground screw that was
removed earlier (step 3).
Push the strain relief upward (to relieve
strain) while tightening the strain relief
clamp.
Black
Junction block
on range back
Red
Top nut
Ground
strap
Black lead
White lead
Red lead
Strain relief
clamp
Black
Red
Ground
screw
Black lead
White lead
Green lead
Ground strap
removed
Red lead
Black
Junction block
on range back
Red
Top nut
Ground
strap
Black lead
Ground wire
White lead
Red lead
Strain relief
clamp
