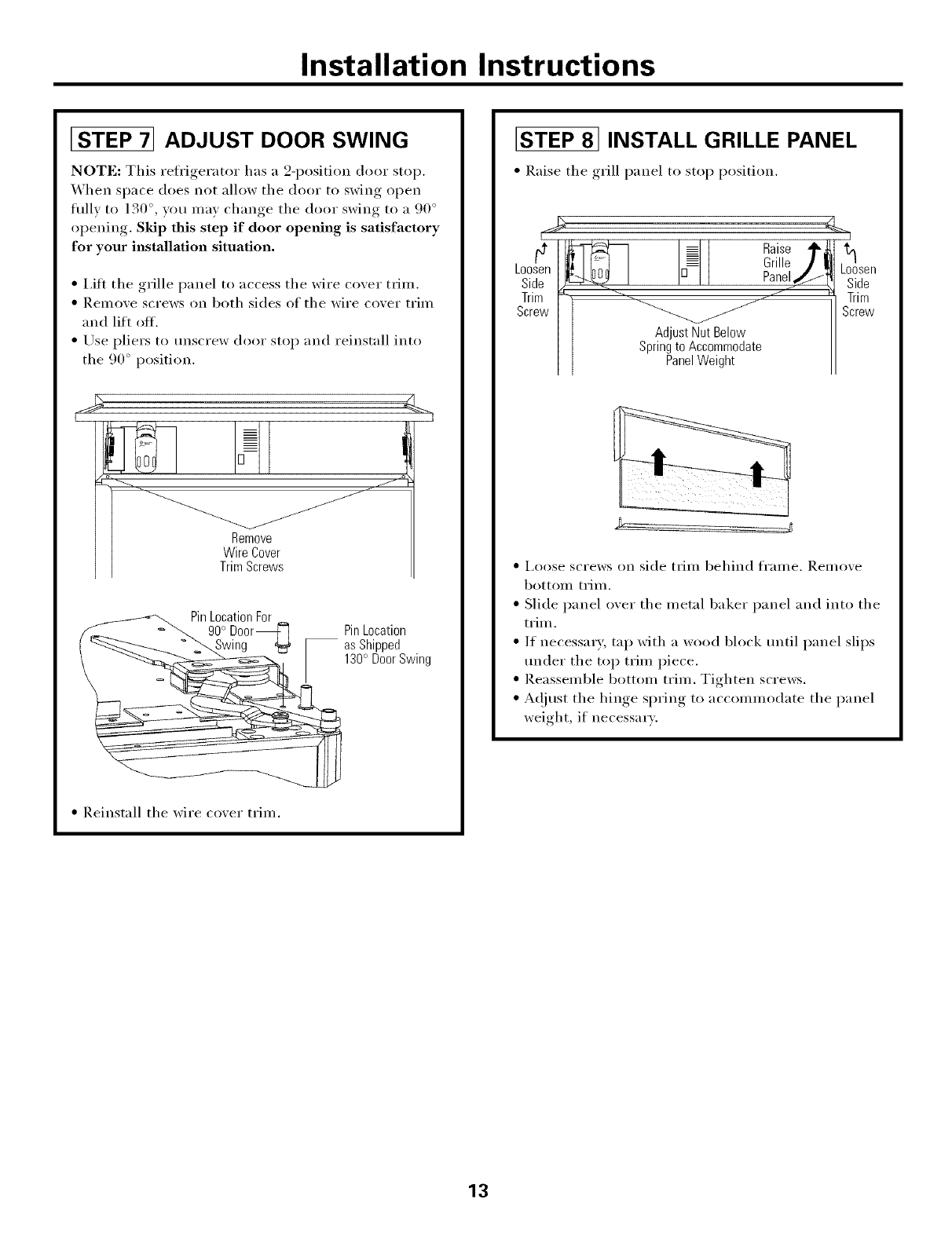

Installation Instructions
[STEP 7] ADJUST DOOR SWING
NOTE: This refiigerator has a 2-position door stop.
When space does not allow the door to swing open
fldlv to 130 °, you may change the door swing to a 90 °
opening. Skip this step if door opening is satisfactory
for your installation situation.
• i,ift the grille panel to access the wire cover trim.
• Remove screws on both sides of the wire cover trim
and lift off.
• Use pliers to tlnsci'ew door stop and reinstall into
the 90 ° position.
I
Remove
Wire Cover
TrimScrews
<L..
W
9PinLocationFor
0° Door_ PinLocation
asShipped
130° DoorSwing
• Reinstall the wire cover trim.
[STEP 81 INSTALL GRILLE PANEL
• Raise the grill panel to stop position.
I
Loosen
Side
Trim _,
Screw
I
Grille]|l
__ P_
AdjustNutBelow
Springto Accommodate
PanelWeight
Loosen
Side
Trim
Screw
• i,oose screws on side trim behind fl'ame. Remove
bottom trim.
• Slide panel over the metal baker panel and into the
trim.
• If necessary, mp with a wood block tmtil panel slips
trader the top trim piece.
• Reassemble bottom trim. Tighten screws.
• A(!just the hinge spring to accommodate the panel
weight, if necessary.
13
