Installation
The agitator speed controller fits the following Graco
pneumatic rotary motors:
Motor Part No.
101140
16A871
101388
111310
NOTE: Before installing, ensure that the agitator
air motor has at least 5 in. (12.7 cm) of vertical
clearance and 4 in. (10.2 cm) of horizontal clearance
in all directions around it.
NOTE: If you are using an air line lubricator, install it
in the air line upstream of the speed controller.

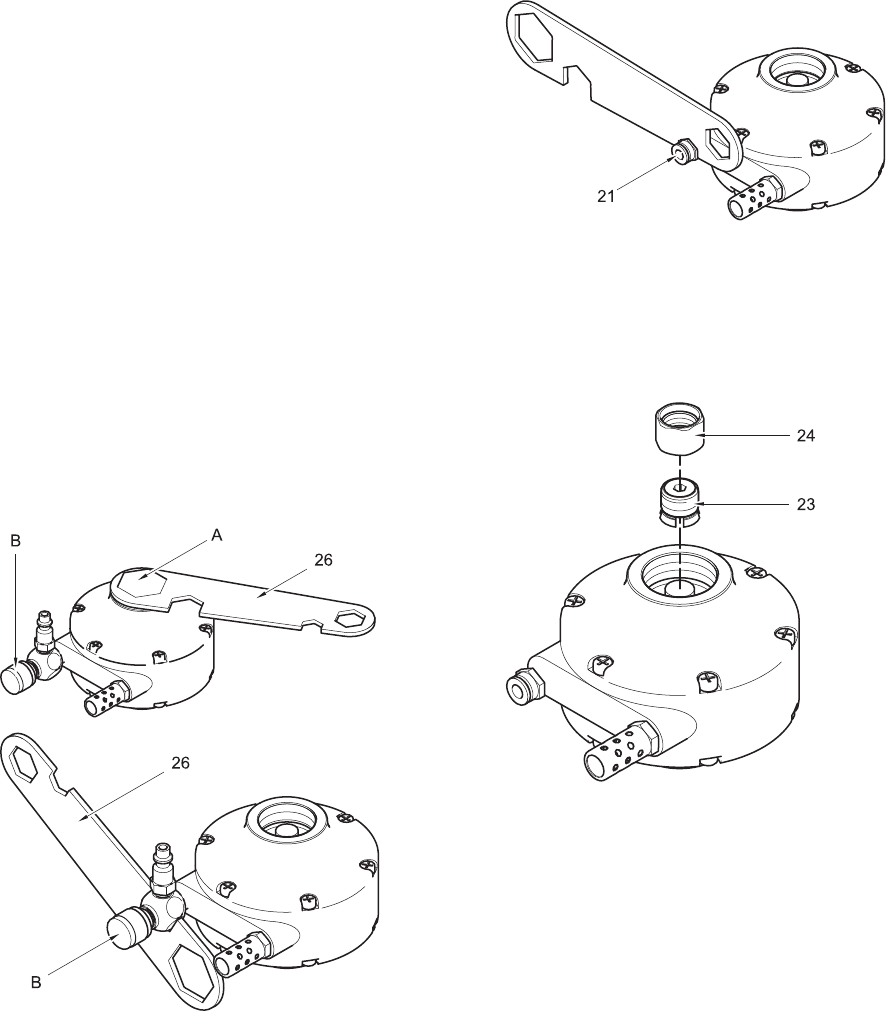

1. Remove the air motor top cap (A) and needle
valve (B) using the multi-function wrench (26).
Store these parts in a safe place; they will be
needed if the speed controller is ever removed.
TI17254a-1
TI17255a-1
2. Install the push-to-connect air tube connector
(21) in place of the needle valve.
TI17256a-1
3. Screw the compression nut (24) onto the flange
connector (23) finger-tight. Place the connector
assembly (23, 24) onto the exposed shaft of the
air motor, flange connector side down.
TI17257a-1
3A1315A 3
